Schoeps OCT-3D Set
Schoeps OCT-3D Set
9ch set for recordings after the ""OCT-3D"" technique with microphones and stereo bars. Set contains: 6*CCM 41 L, 3*CCM 4 L, 2*MAB 1000 without case, CB-MAB, KMAB 1000, 9*SGC, 9*K 5 LU, 4*STR 250.
Main benefits

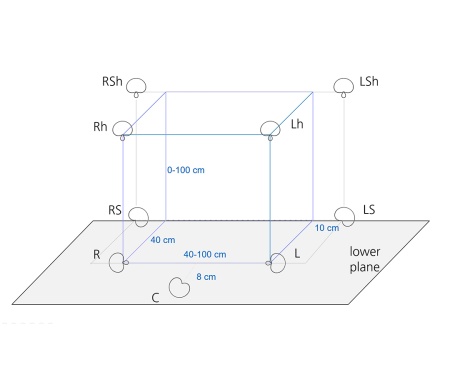

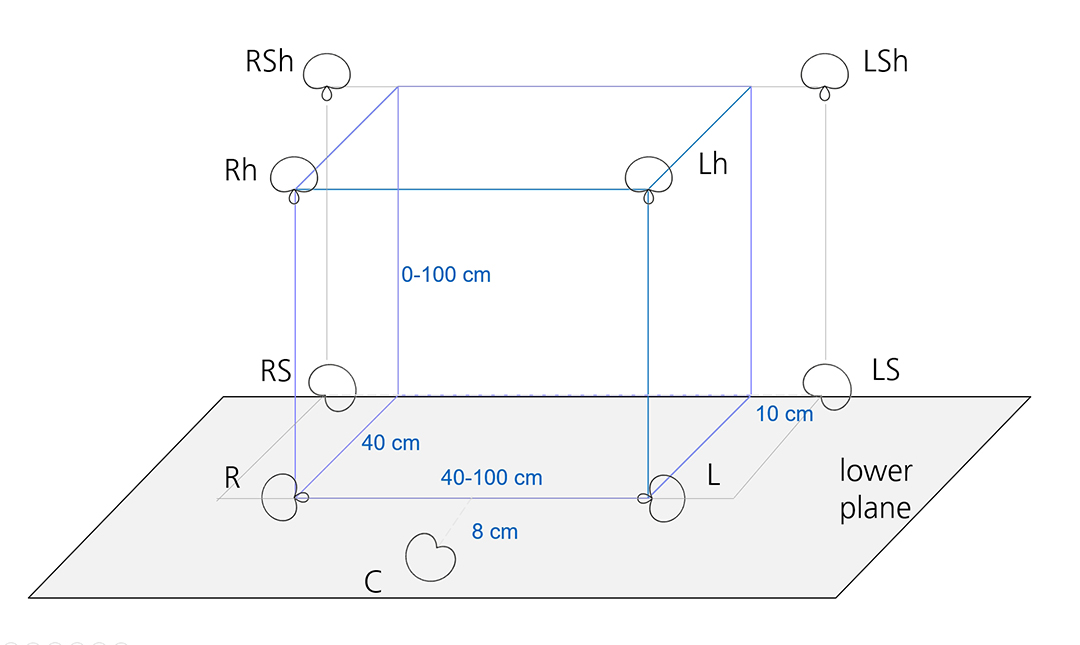

- 9ch set for 3D recording using the "OCT-3D" recording technique with microphones and stereo bars
- OCT-3D is a recording technique for 7.1 or 9.1 Surround. It expands the well-known OCT technique to height channels.
- Features of the OCT technique: natural spatial sound, balanced imaging characteristics, good stability
Description
The set contains:
- 6 * CCM 41 L, Supercardioid Microphones
- 3 * CCM 4 L, Cardioid Microphones
- 2 * MAB 1000, Stereo bars with additional riders for the height channels + CB-MAB + case
optional: 4 * support rods STR 250.
These support rods serve to create a space between the lower and upper level microphones. This reduces their correlation in the diffuse field. Since the correlation in the diffuse field plays a smaller role in vertical pairs of speakers than in horizontal, the 4 Supercardioids for the vertical channels can also be mounted directly on the stereo bars.
Downloads
| 3D Audio Natural Recording
Paper on psychoacoustic basics for 3D Audio Microphone Recording by Günther Theile, Helmut Wittek, 2016 Articles |
 |
  |
| Microphone techniques for 3D-Audio and VR
About Basics, Image Assistant, OCT-3D, ORTF-3D, etc. (Powerpoint slides) Helmut Wittek, 2018 Lectures |
|
|
| OCT, OCT Surround: Guide
User Brochures |
|
|
