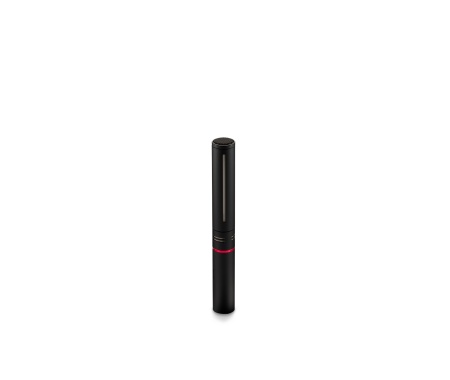

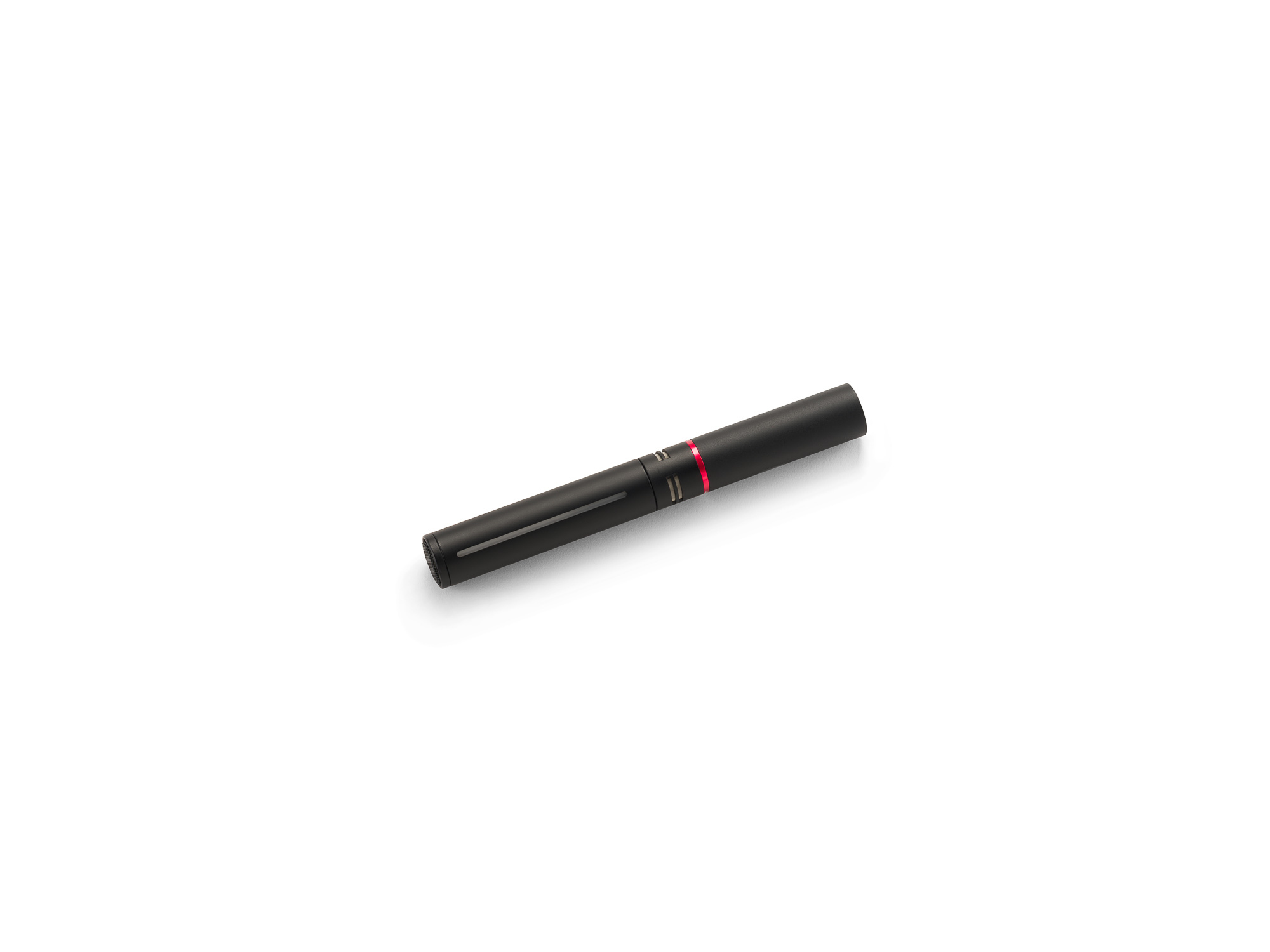

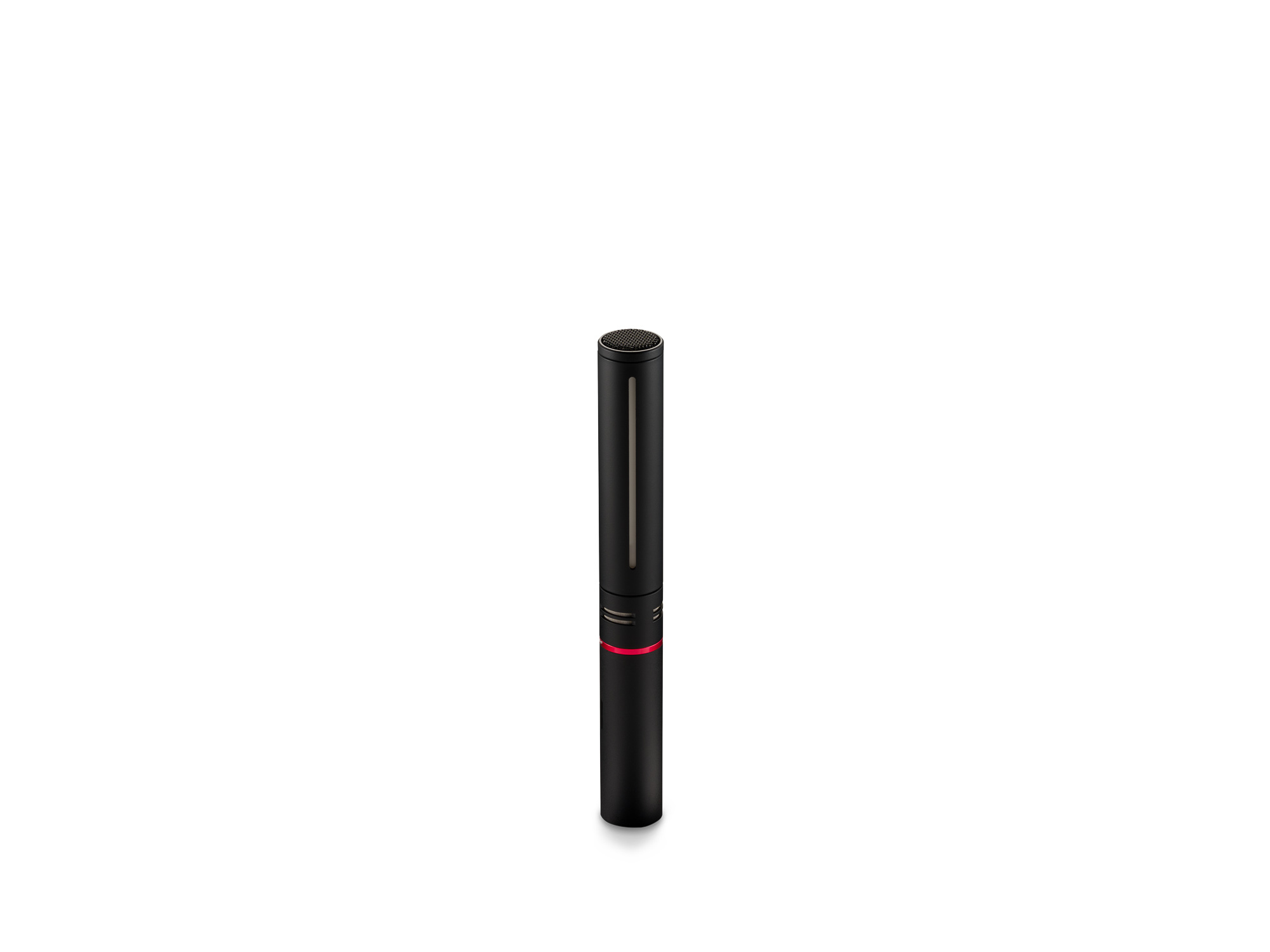

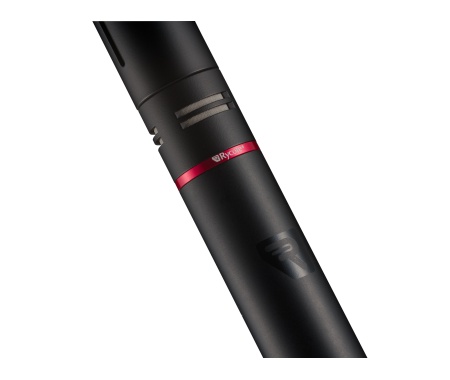

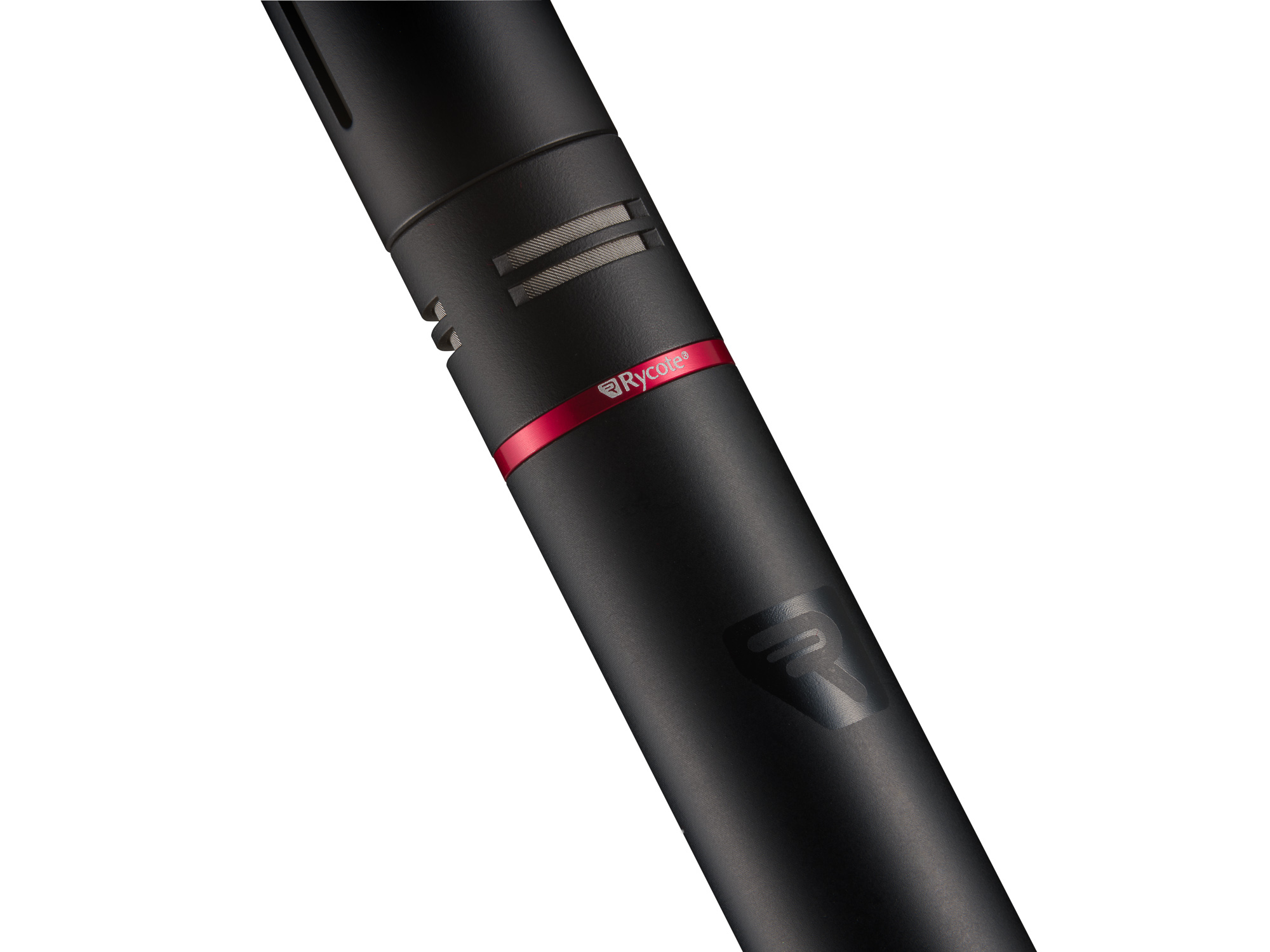

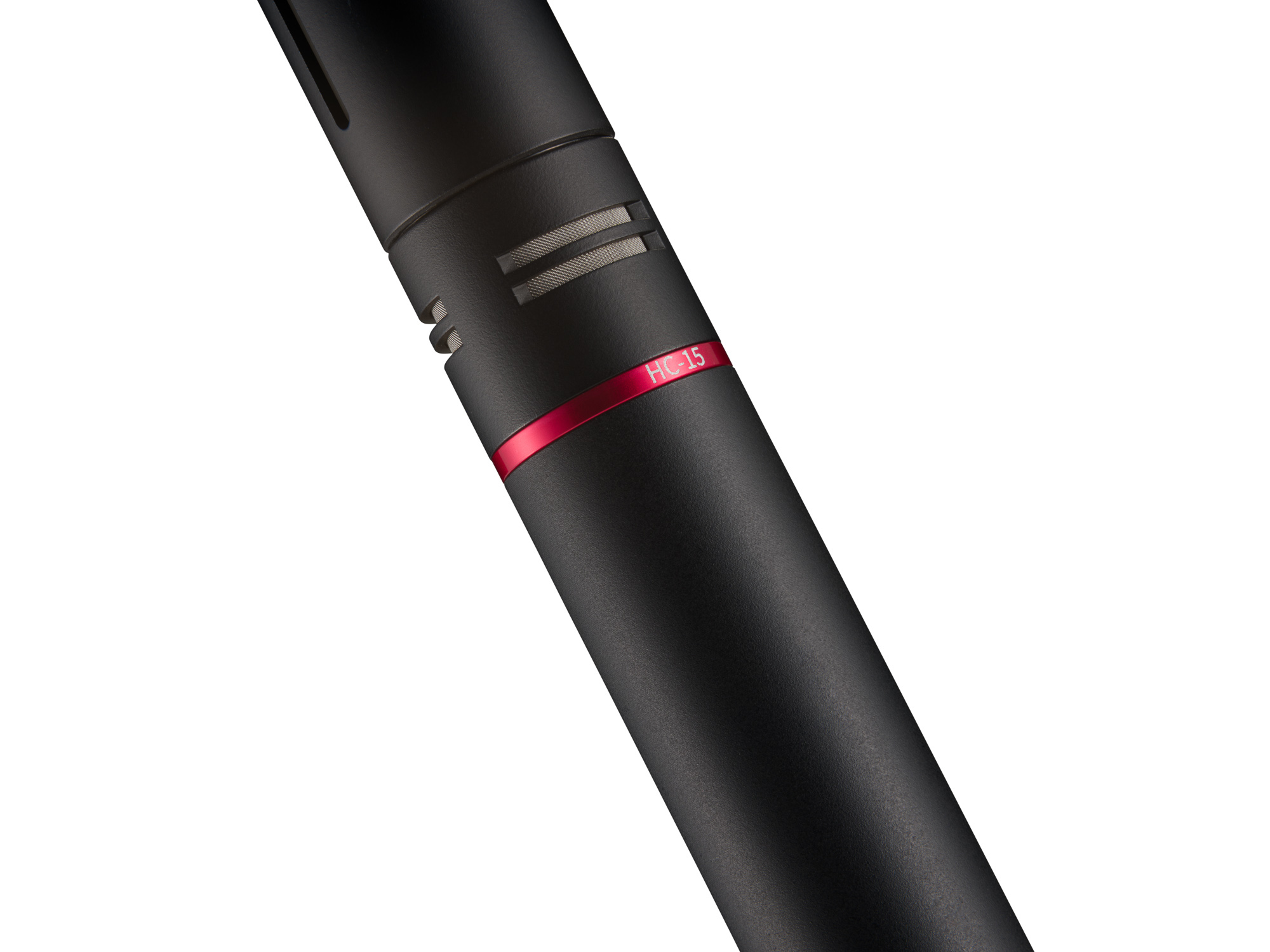

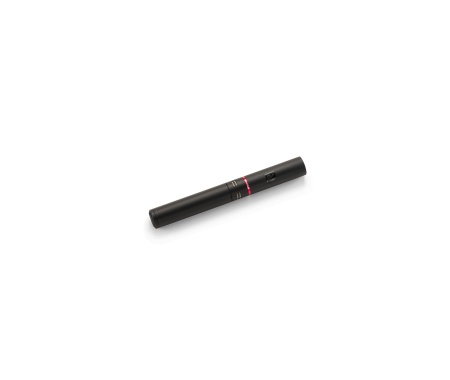

HC-15 Shotgun Microphone
HC-15 Shotgun Microphone (15 cm)
Tech Specs
| Frequency Range (+/-3 dB) | 50 Hz - 20kHz |
| Self-Noise (DIN/IEC) | 6.0 dB-A |
| Polar Pattern | Hyper-Cardioid |
| Capsule Type | Back Electret Condenser |
| Output Sensitivity | 53.0 mV/Pa (-25.5 dB) |
| Maximum Output Voltage | 4 Vp |
| CMRR (@ 1kHz) | > 60 dB |
| Min. Load Impedance | 1 kΩ |
| Signal/Noise Ratio | 87 dB typical (at 1kHz/Pa A-weighted) |
| Impedance | 100 Ω |
| Maximum Cable length | 100 metres |
| Powering | P-48 |
| Powering Valid Range | 48-24V (Max SPL reduced at 24V) |
| Current Consumption | 3.0 mA |
| Max SPL |
133 dB SPL (at 1 kHz 1.0% THD Typical) 127 dB SPL (at 1 kHz 0.5% THD Typical) |
| RFI Shield | Yes |
| Pad | No |
| Filter/EQ | No |
| Connector | XLR-3M |
| Length | 153 mm |
| Diameter | 19 mm |
| Weight | 90 g |
