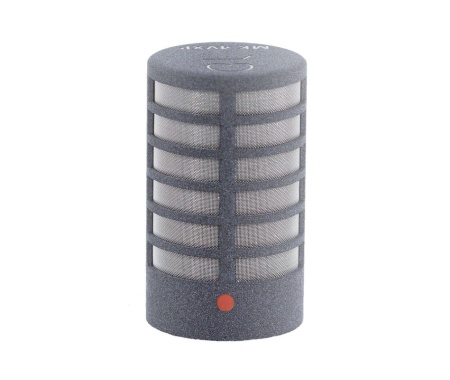

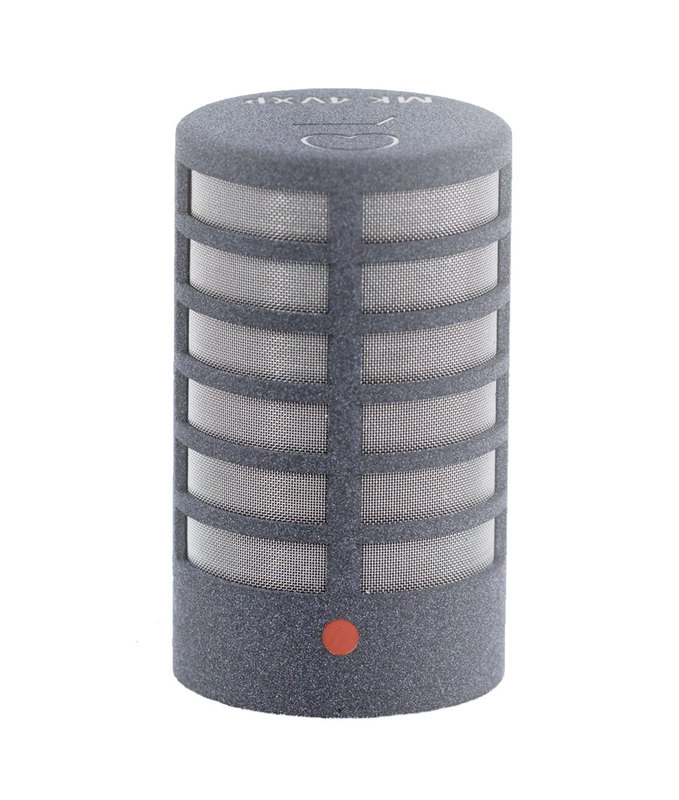

Schoeps MK 4VXP Microphone capsule for close pickup, side-addressed

Schoeps MK 4VXP Microphone capsule for close pickup, side-addressed

This cardioid microphone, with its main axis along its side, improves speech intelligibility in very loud environments. It is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth. Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

cardioid for lateral pickup
for pick up of speech or music at close range (under 10 cm)
considerable attenuation of low frequencies

Audio Samples

SuperCMIT
Polarflex
Close Pickup Capsules

Specifications

MK 4VXS
Frequency range	close pickup
Sensitivity	10 mV/Pa
Equivalent noise level (A-weighted)	14 dB-A
Equivalent noise level (CCIR)	25 dB
Signal-to-noise ratio (A-weighted)	80 dB-A
Maximum sound pressure level at 0.5% THD	134 dB-SPL
Length	34 mm
Diameter	20 mm
Weight	18 g
Surface finish	matte gray (g) or nickel (ni)

Graphics

Downloads

336 855 Ft (265 240 Ft nettó)

–

A kosárba helyezés gomb akkor jelenik meg, ha kiválasztotta a fenti értékeket

gyártó: Schoeps
termékkód: S131705
