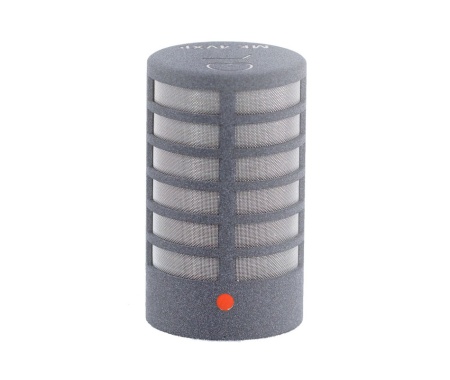

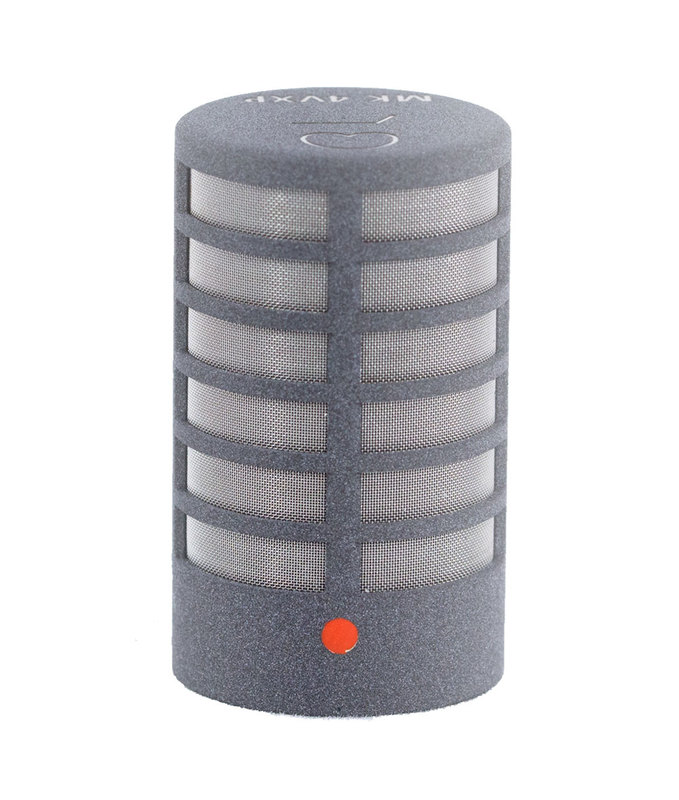

Schoeps MK 4VP Microphone capsule for close pickup, side-addressed
Schoeps MK 4VP Microphone capsule for close pickup, side-addressed
This cardioid capsule, with its main axis along its side is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth. Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.
- cardioid pattern, side-adressed
- for pickup of speech or music at close range (under 20 cm), otherwise the sound may become “thin“
- moderate low frequency attenuation
Audio Samples
Specifications
| MK 4VP | |
|---|---|
| Frequency range | close pickup |
| Length | 22 mm |
| Diameter | 20 mm |
| Weight | 17 g |
| Surface finish | matte gray (g) or nickel (ni) |
Graphics
Low-frequency response curves of the two capsule types (P and XP) compared to the standard MK 4 (measured at a 60 cm equivalent distance).
Downloads
| User guide | ||
|---|---|---|
| MK _ Microphone capsules |
 |
Download (pdf, 1.72 MByte) |
