ACCSI-GPS

Ambient Serial Interface w/ GPS Receiver Module

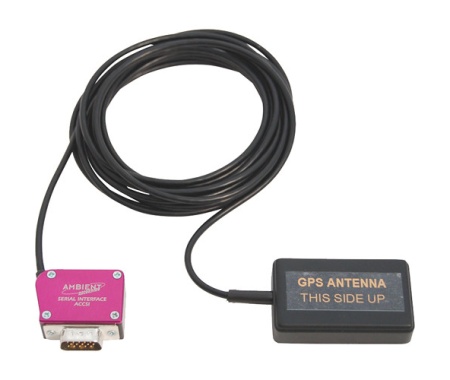

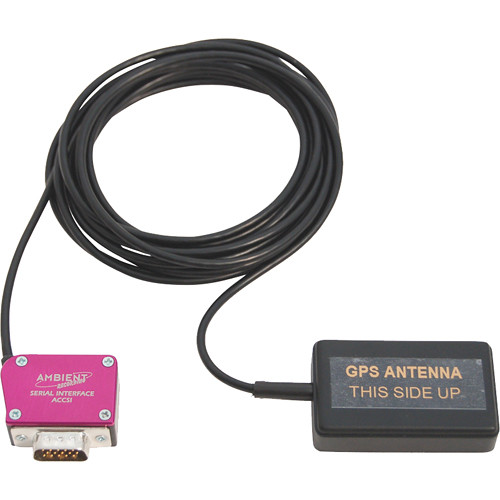

The ACCSI-GPS Serial Interface with GPS Module from Ambient Recording is a universal serial interface which plugs into the 15-pin Sub-D socket of the ACC501 and serves as an interface for the GPS module. It comes with a 6-foot cable attached and can be used to derive position data and universal time (UTC) to jam the internal time code generator. The GPS reference signal of one pulse per second can also be used to calibrate the internal reference oscillator. Thus, it is possible to synchronize cameras anywhere worldwide to well under 0.5 frames offset. Prior to connecting or disconnecting the ACCSI the ACC501 must be turned off.

Main Benefits:

Powerful Atmel controller
Small enough to be stored in the ACC pouch
Attached Sanav GPS module

Overview

ACCSI is a universal serial interface which plugs into the D-sub-15 socket of the Clockit Controller (ACC501) and serves as a interface for the GPS module. Featuring a powerful Atmel controller, it is a future-proof design to adopt various serial interfaces.

Ambient’s GPS module has been kept small enough to be stored in the Clockit Controller pouch (ACC-T).

It comes with a 2-meter cable attached and can be used to derive position data and universal time (UTC) to jam the internal timecode generator. The GPS reference signal of one pulse per second can also be used to calibrate the internal reference oscillator. Thus, it is possible to synchronize cameras anywhere worldwide to well under 0.5 frames offset.
For GPS modules bought after February 2013 the new ACC 501 firmware update is necessary.

Tech Specs

Downloads

Call for pricing

–

The add to cart button will appear once you select the values above

brand: .. discontinued ..
sku: ACCSI-GPS

Specifications

availability:

Twitter

Recently viewed

Super-Shield Kit, Small

Product Code: 010320 The Super-Shield Kit is a complete windshield and shock mounting system for shotgun microphones up to 200mm in length Main

RYC010320

Display the description to the Readmore tag.: The Super-Shield Kit is a complete windshield and shock mounting system for shotgun microphones up to 200mm in length.

153 111 Ft (120 560 Ft excl VAT)

–

22mm BBG Windshield

Product Code: 011002 Maximum wind-noise protection in a compact spherical packageSuitable for microphones with a 22mm shank diameter Main Benefits:

RYC011002

Display the description to the Readmore tag.: Maximum wind-noise protection in a compact spherical package. Suitable for microphones with a 22mm shank diameter.

55 067 Ft (43 360 Ft excl VAT)

–

Cable Length	6' (2 m)
Connector	15-pin Sub-D, interface on cable
Compatibility	ACC501 Ambient clockit controller
Dimensions	GPS-Module: 2.3 x 1.4 x 0.6" (58 x 35 x 15 mm) ACCSI: 1.2-1.6 x 1.4 x 0.6" (32-40 x 35 x 15 mm)
Weight	GPS-Module: 0.6 oz (18 g) ACCSI: 0.7 oz (20 g)
