COS-11DPT / 3.0 - Bézs
COS-11DPT / 3.0 - Beige

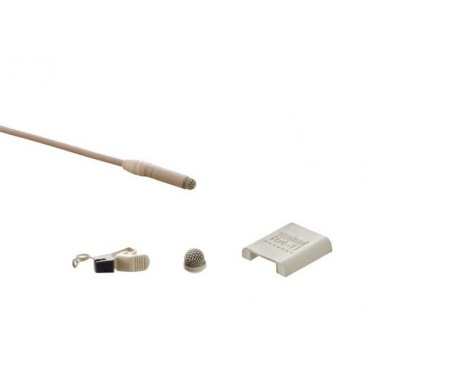

Lavalier Microphone with 3m cable stripped end, no connector, with accessories.
Main Benefits
- Overcomes digital transmitter RFI
- Water Resistant・ Durable Design
- Great Clear and Rich Sound
- 4 Color Choices
- Improved Moisture Resistance
- Original Vertical Diaphragm Design
- Optimized for the Human Voice
Description
Sanken has introduced the COS-11D, which overcomes RFI (radio frequency interference) from the digital transmitter. In today’s wireless transmission systems the microphone must remain unaffected by new forms of digital transmitter signals. They present new challenges in the area of emission protection. In many cases, noise levels increase and the S/N ratio is deteriorated by the interference of digital transmitters. Sanken has designed the COS-11D specifically to diminish the instances where interference is an issue.
Tech Specs
| Directivity | Omni directional |
|---|---|
| Transducer | Self-polarized condenser |
| Frequency range | 50Hz - 20kHz |
| Sensitivity (nominal at 1kHz) |
8.9mV/Pa (-41dB,0dB=1V/Pa) |
| Equivalent noise level (A-weighted) |
28dB-A |
| Max SPL (1% THD) | 123dB SPL. |
| Output impedance at 1KHz |
700 ohms |
| Powering | +3V to +10V |
| Current consumption | less than 0.5mA |
| Weight | 19g |
| Dimensions | 16.1mm X 4.0mm (diameter), 3.0m(cable length) |
| Connector | Connector-less |
Graphics
Frequency Response
♦ Fig-1
Polar Pattern
♦ Fig-2

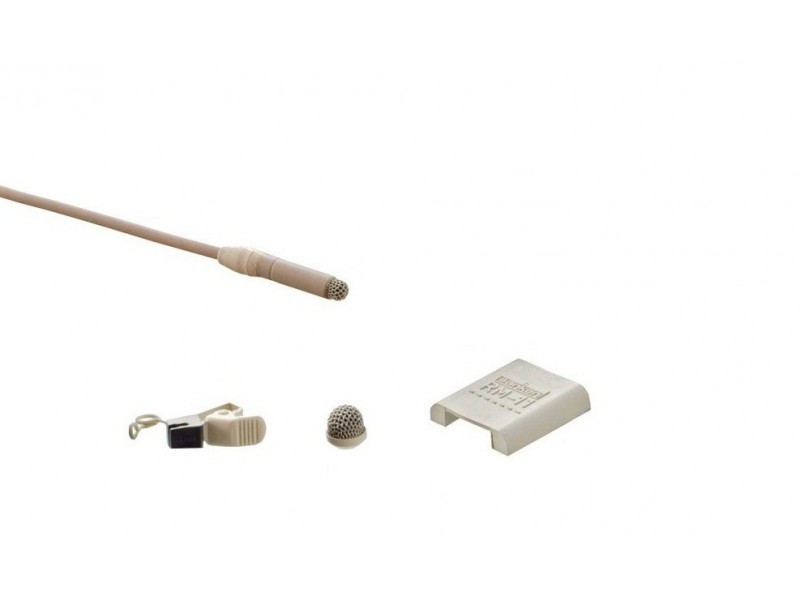

Included Accessories
| HC-11 holder clip (AL type doesn't include) |
| WS-11 metal windscreen (AL type doesn't include) |
| RM-11 rubber mount (AL type doesn't include) |
| instruction manual |
| warranty card |
| plastic case |
