A10-RX-XLR - Two-channel, dual-diversity receiver with XLR and power cables

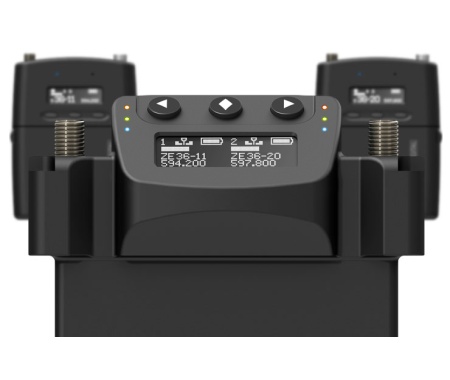

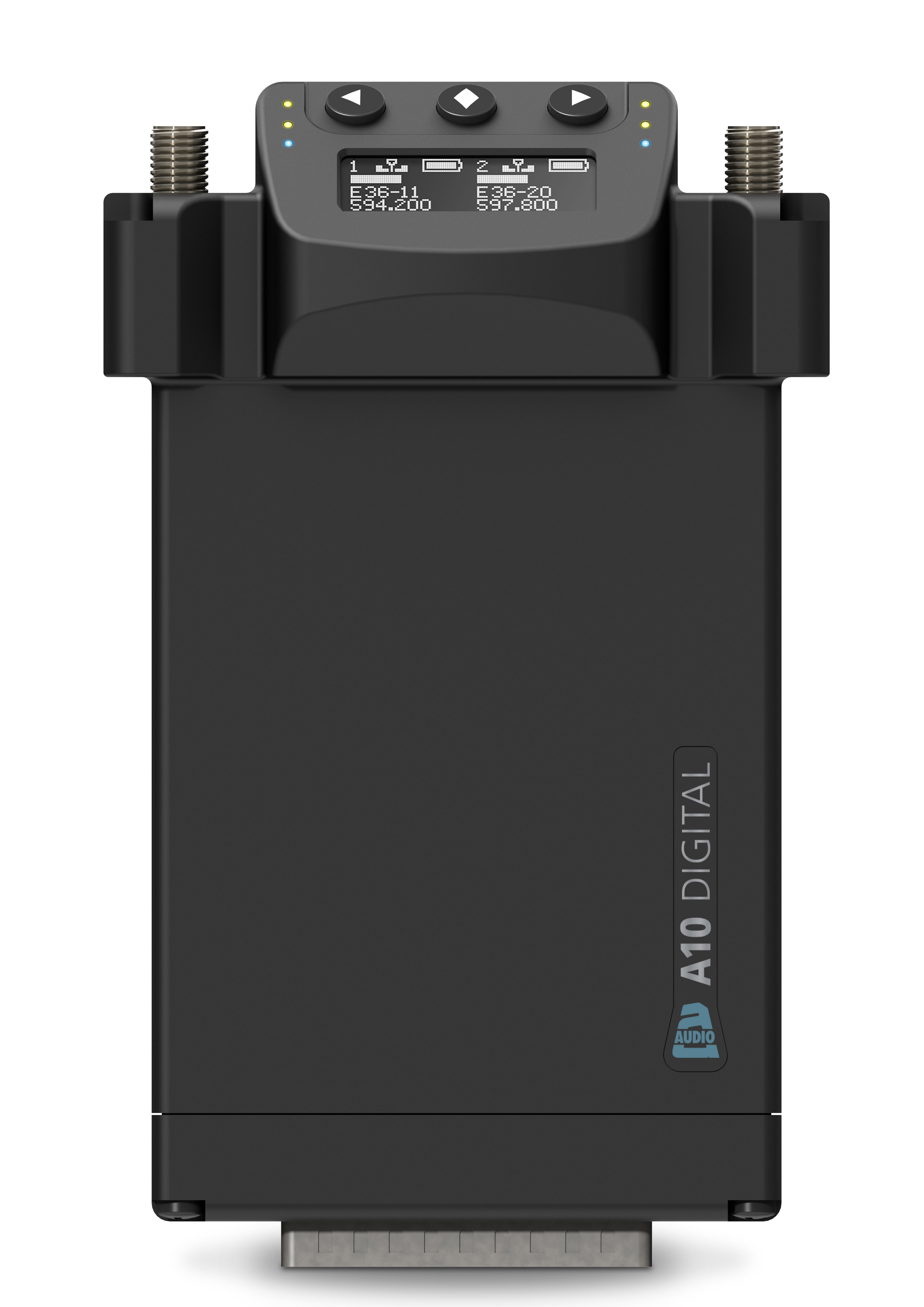

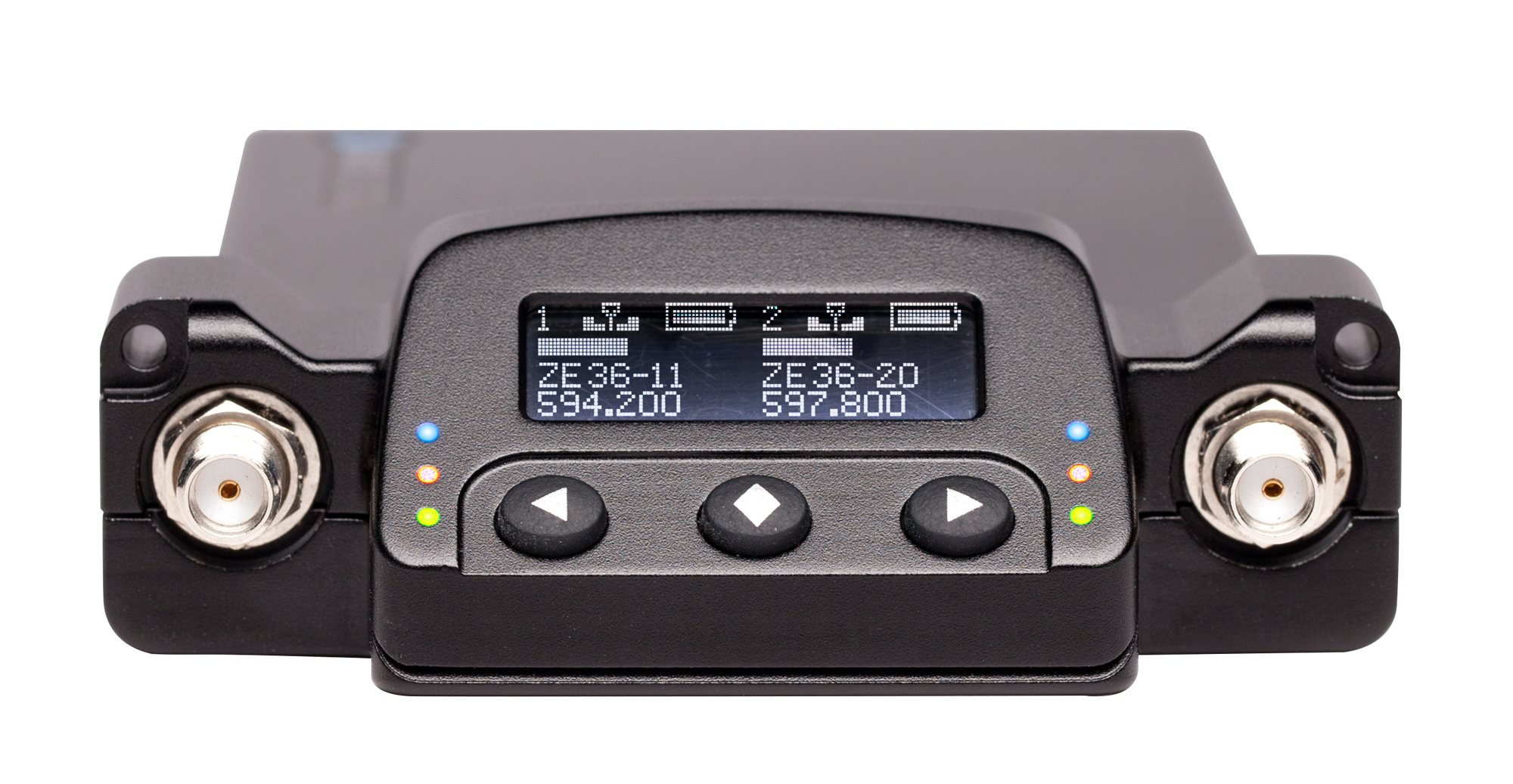

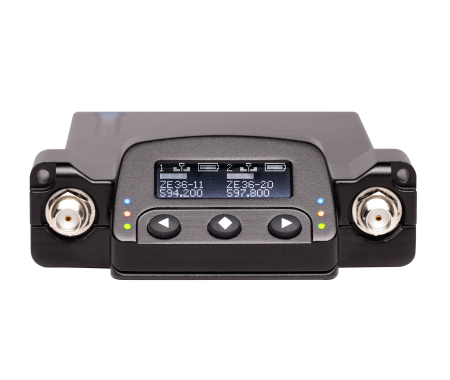

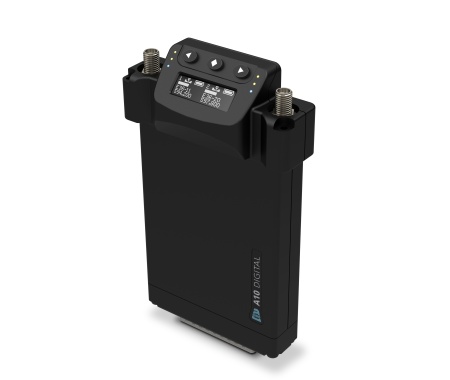

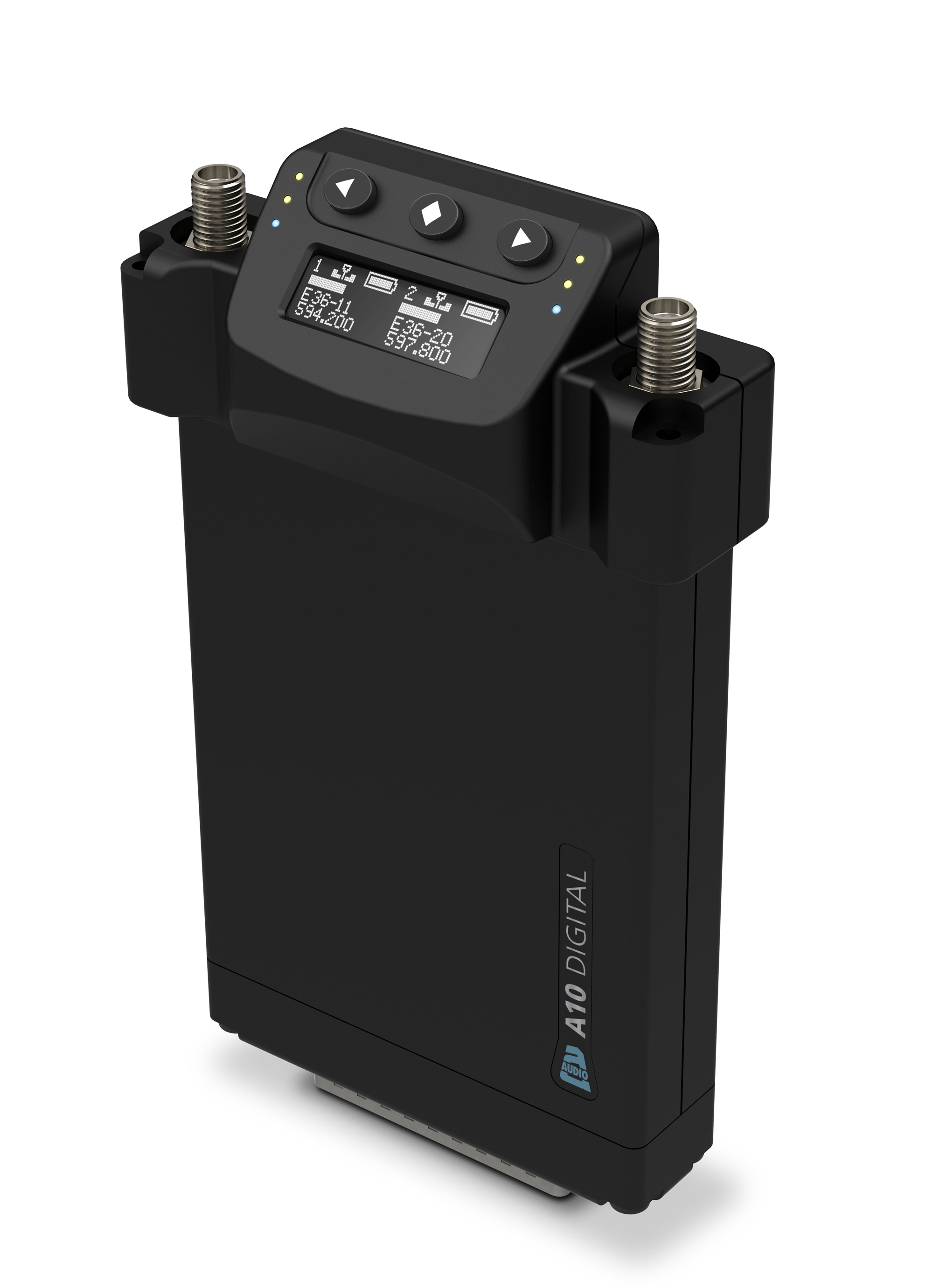

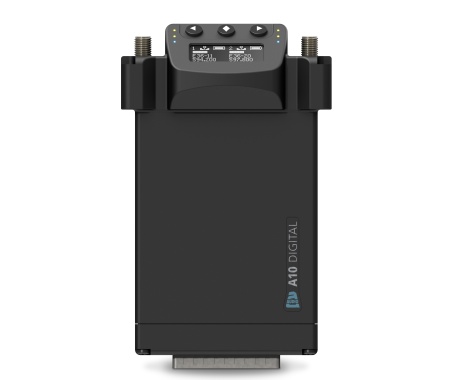

The two-channel A10-RX receiver is an advanced digital tool that works with either one or two A10-TX transmitters. With its Advanced Digital Diversity System the A10-RX receiver selects the best signal between each channel's two receivers. When at the limits of system operation ADDS combines error-free digital packets from each receiver. This results in lossless, wireless digital audio up to the absolute limits of operation.

Description

The A10-RX is offered in two versions, the A10-RX-SL for uni- and Superslot mounting, and the A10-RX-XLR for stand-alone operation in a production bag.

Tech Specs

Downloads

Hívjon az árért

–

A kosárba helyezés gomb akkor jelenik meg, ha kiválasztotta a fenti értékeket

gyártó: .. discontinued ..
termékkód: A10-RX-XLR
Weboldal: https://audioltd.com/a10/a10-rx-two-channel-receiver/

Specifikációk

availability:

Twitter

World Models:	A10-RX-SL - Uni-/Superslot receiver with DB-25 connector A10-RX-XLR - XLR and Hirose 4-pin connector
Operating Frequency Range	470-694 MHz
USA Models:	A10-RX-SL-US - Uni-/Superslot receiver with DB-25 connector A10-RX-XLR-US - XLR and Hirose 4-pin connector
Operating Frequency Range	470-608 MHz
Switching Bandwidth	Tuneable in 25 kHz steps throughout the 224 MHz receiver tuning range
Audio Frequency Response	20 Hz-20 kHz
Output Gain Control	0 dB (+12 dBv) to -36 dB in 12 dB steps, menu controlled
Output - Analog	Balanced mic- or line-level, line level over Uni/Superslot
Output Digital	AES3 (balanced), two channel

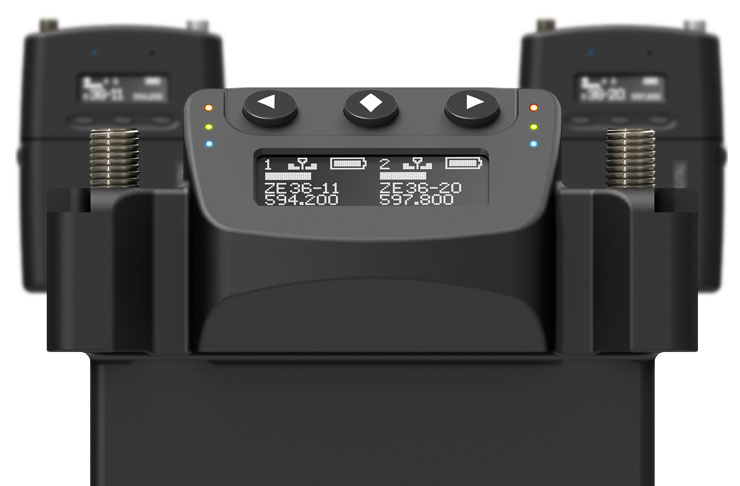

Menu	3-button navigation, OLED display
Powering	6–18 VDC
Operating temperature range	-10 °C to +55 °C
Weight	180 g
Dimensions	124 x 68 x 18 mm
