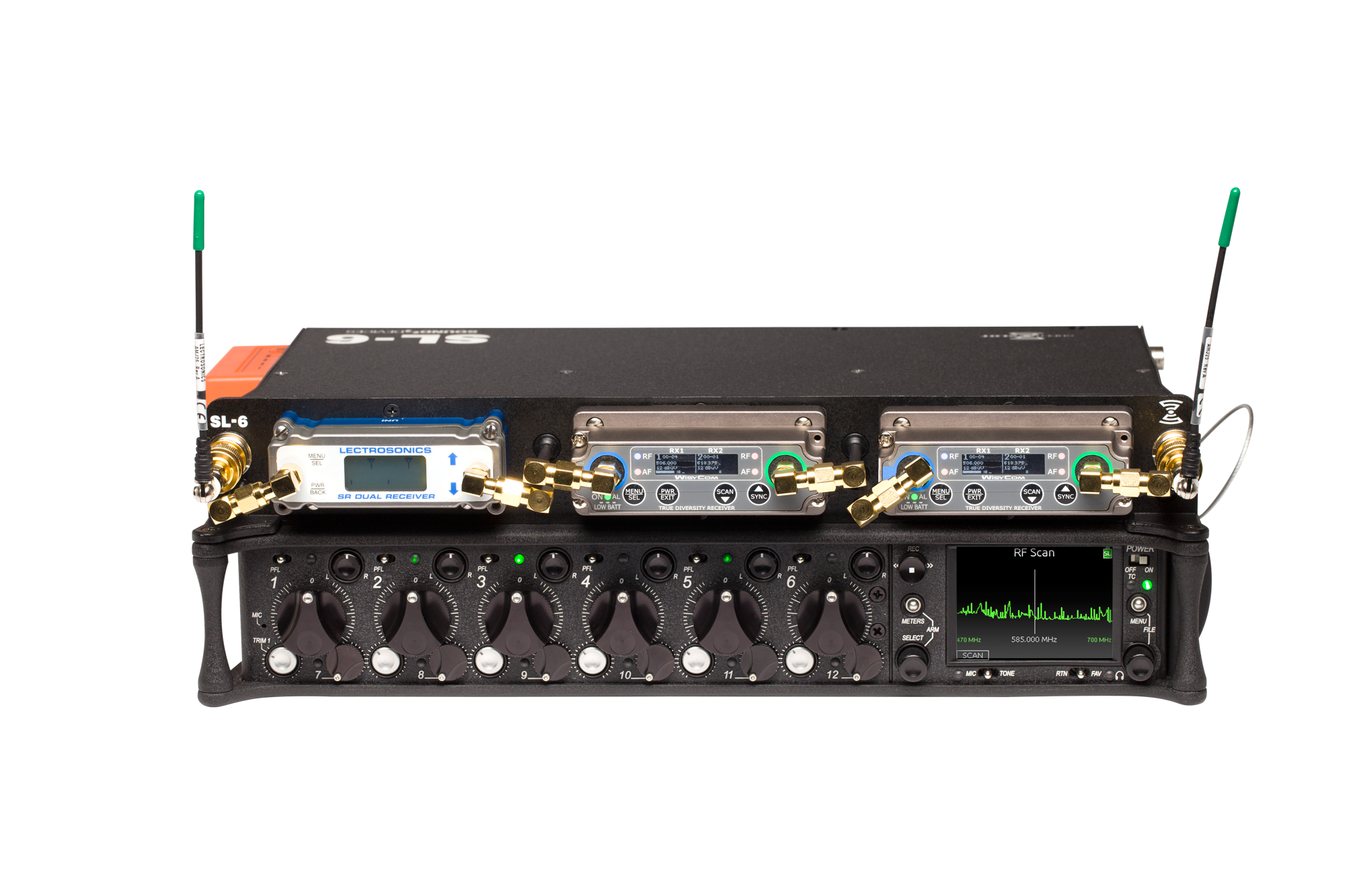

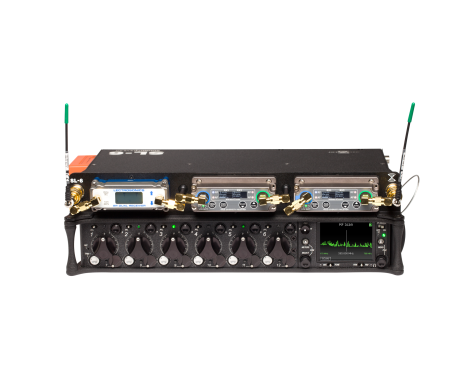

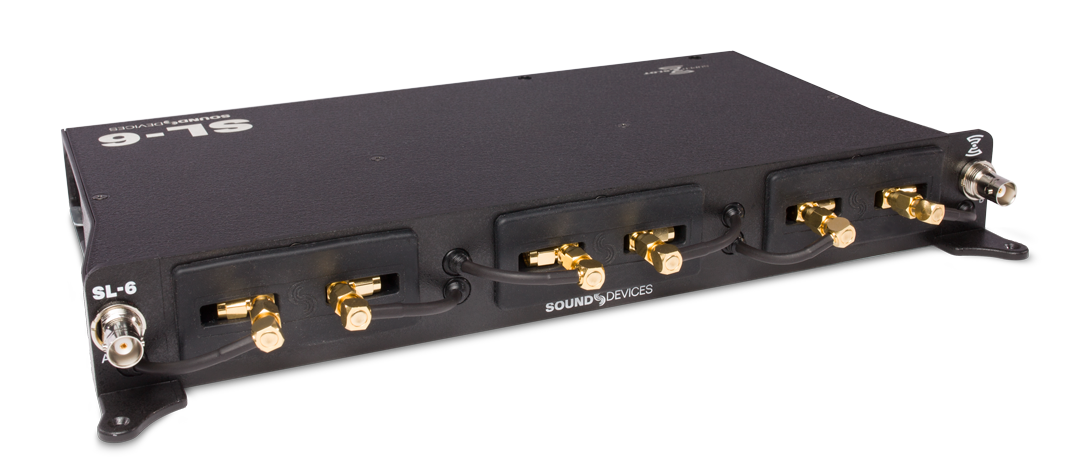

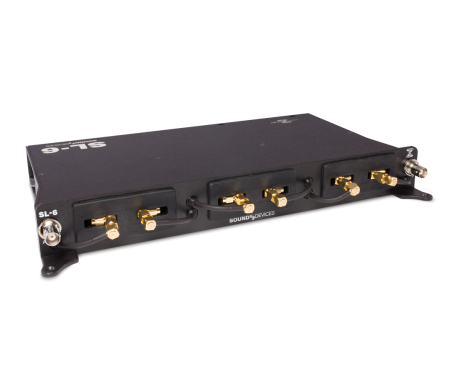

SL-6 Powering and Wireless System for 688 Field Mixer
Wireless integration accessory for the 688 and Scorpio. HoldS up to three dual unislot or SuperSlot™ compatible Recievers controedled via the 688 or Scorpio. Adds NP-1 powering option, two 12v isolated outputs & two non isolated outputs for external devices.Plus one USB Charging port. SL-Riser required to secure to Scorpio.
Main Benefits
- Power and Wireless Hub
- SuperSlot System Compatible
- USB Charging Powre
- 2x 12V Isolated Outputs
- 2x Direct Battery Outputs
Description
Designed to provide power and simplified wireless interconnection for their 688 field mixer, the SL-6 Powering and Wireless System for 688 Field Mixer from Sound Devices features an NP1 battery slot (battery not included), two 12V isolated outputs, a USB charging port, and two non-isolated direct battery outputs. It incorporates Sound Devices' SuperSlot wireless connectivity system, and supports models from Audio Ltd, Lectrosonics, and Wisycom.
- Powering
- With its NP1 battery slot, USB charging port, two 12V isolated outputs, and two non-isolated direct battery outputs, the SL-6 is a powering hub for peripheral devices in a sound mixer's bag
- SuperSlot
- A non-proprietary, open wireless control and interfacing standard, SuperSlot was developed by Sound Devices, and is the result of its collaboration with a number of wireless manufacturers including Audio Ltd, Lectrosonics, Sennheiser, and Wisycom. The standard allows for all powering and audio interconnection, plus control and monitoring between SuperSlot-compatible mixers and receivers
-
- Accepts three dual-channel slot-in wireless receivers for a total of six channels
- Compatible with existing slot-in and new SuperSlot wireless receivers
- Ability to set SuperSlot-compatible receiver frequency and power on/off from the 688
- Ability to monitor SuperSlot-compatible receiver battery, audio, and RF levels from the 688
- Accepts analog or digital audio depending on wireless receiver
- Built-in antenna signal distribution
- NP-1 battery slot for powering 688, receivers, and external peripherals
- USB charging port
- Two 12V isolated outputs
- Two non-isolated direct battery outputs
- PowerSafe 10-second power reserve
- Easy to attach to the 688
Tech Specs
SL-6 Compatible Wireless Receivers
| Manufacturer | Model | Unislot Compatible (Audio and Powering) |
SuperSlot Compatible (Control, Monitoring & RF Scan from 688 LCD) |
|---|---|---|---|
| Audio Ltd | En2 CX2-P | ✓ | -- |
| Audio Ltd | A10-RX | ✓ | ✓ |
| Lectrosonics | SRa | ✓ | -- |
| Lectrosonics | SRb | ✓ | ✓ with audio board update from Lectrosonics |
| Lectrosonics | SRc | ✓ | ✓ |
| Sennheiser | EK-6042 | ✓ | ✓ |
| Sennheiser | EK 3241 | ✓ (see note) | -- |
| Wisycom | MCR42 | ✓ | ✓ with SLK42-IKSS rear panel adapter |
Note: While the EK3241model is Unislot compatible for audio and powering, it is not compatible with the antenna distribution of the SL-6.
