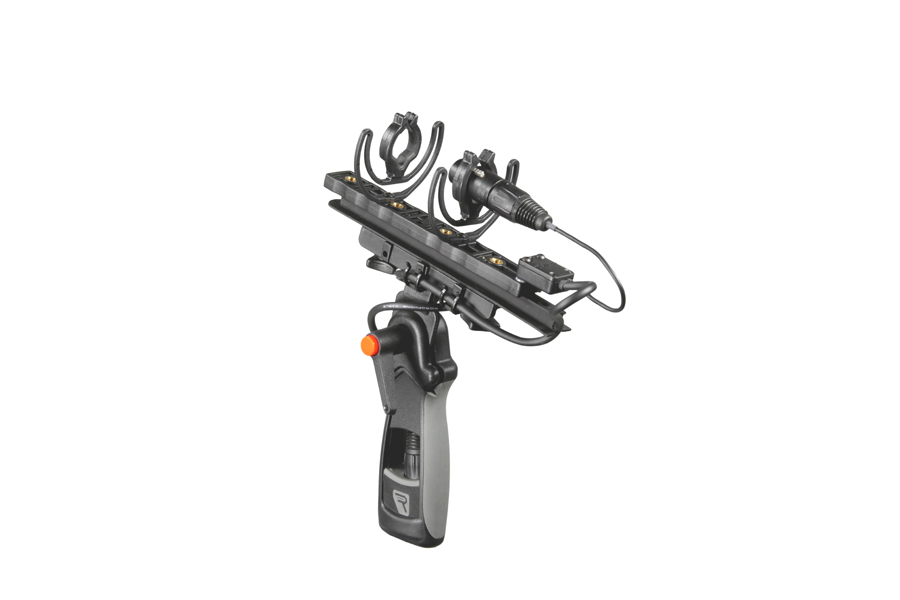

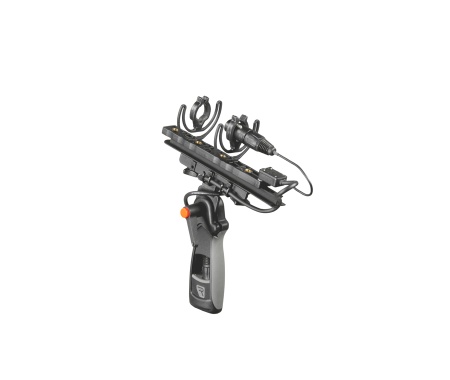

Suspension Medium (XLR-3F) 62 single Lyres
Product Code: 040142
Suspension Medium (XLR-3F) 62 is suitable for small diaphragm condensers up to 160mm in length and a diameter of 19-25mm with a 3-Pin XLR connector such as the Sennheiser MKH 50 or the Schoeps CMC Series.
Main Benefits:
- Patented Lyre suspensions provide complete isolation against handling noise whilst safely gripping the microphone
- Our new small and medium modular bars are now more durable and less prone to wear and tear.
- Comfortable pistol-grip handles allow handheld use, but also have a 3/8" boom adaptor in the base for quick transfer boom operation
Description
Our suspensions provide complete isolation against handling and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.
The patented Lyre are extremely robust, and virtually unbreakable, as they do not use elastic or rubber components which are prone to wear and tear. These completely backward compatible Lyre have replaced the original silicone O-rings suspension, and can be bought separately to upgrade older suspensions. Lyre suspension webs come in five varieties, please see Kit Contents Tab for details.
Small, Medium and Large Modular Suspensions are available, each with corresponding length bars. All other components are shared, including Rycote Pistol-grip with integral XLR MarkII holder and boom adaptor (with 3/8" adaptor) for handheld or boom operation.
A Connbox is fitted as standard to Small, Medium and Large Suspensions (Windshield Kits 1- 11), for maximum reduction in unwanted noise. Using a Connbox breaks the transmission path of the cable-borne noise, and significantly reduces handling noise. For the best performance we only use ultra soft/flexible Mogami cable and gold pin Neutrik 3-pin XLR's
Tech Specs
Bar: Medium 2 module (160mm length)
Lyres Fitted: 2x Single Lyre 62 (19/25)
Lyres as Spare: 2x Single Lyre 72 (19/25)
Connbox: CB1 (XLR-3F)
Small Modular suspensions are suitable for shotgun microphones from approximately 120mm to 210mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Medium Modular suspensions are suitable for shotgun microphones from approximately 210mm to 400mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Large Modular suspensions are suitable for heavier shotgun microphones from approximately 400mm up to 540mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Compatibility
| Sennheiser MKH 20 | An RF condenser microphone using a symmetrical capsule. It has a transformerless, fully-floating balanced output, switched pre-attenu... |
Contents
 |
1 x XLR Holder MK II Product Code: 048493 The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system |
 |
1 x Boom Poles Adaptor Product Code: 048402 |
 |
1 x Pistol Grip Handle with Lever Product Code: 048401 |
 |
1 x Connbox CB1 (XLR-3F) Product Code: 016901 Suitable for mono microphones with 3-pin XLR. |
2x Single Lyre 62 (19/25)
2x Single Lyre 72 (19/25) (as spare)
1 x Medium (2-Module) Bar
1 x Hex Head Key
