HORUS DA8 Module
HORUS DA8 Module

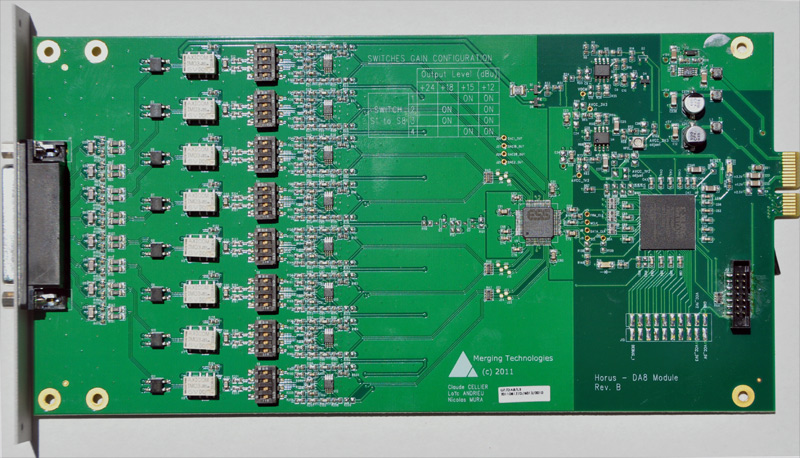

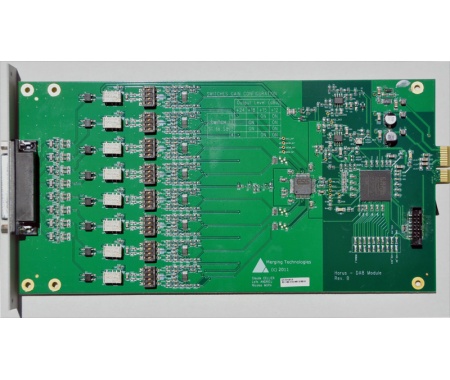

The DA8 (up to 192kz) and the DA8P (up to DSD) have consistently shown in testing to be the quietest multichannel D/A conversion modules available anywhere.
Main Benefits
- 123dB Signal to noise ratio (SNR)
- Power up/power down auto-mutes (speaker protection)
- Assignable Line up levels
- Auto-mute circuitry for “no-pop” power cycling
- Digitally controlled trims for line up procedures
- Dynamic range of 127dB (typ.)
- Easy to set dip switches for international operating levels
Description
Ravenna Technology
Using Ravenna technology, Horus brings to the table the possibility to interconnect your entire facility using nothing more than a standard RJ45 connector. Once in Ravenna mode, the Horus box simply becomes a node on a network, one that can be instantly called to be an input, an output, or a combination of both. Whether you are in broadcast, TV and film, CD/SACD mastering, studio or live music recording, live events, theatres, museums, cruise ships, or any industry where you need audio to get from A to B (or A to B and C, or C to A and part of D, E, and F!). Using standard network connections, switches and connectors, Horus and other Ravenna-enabled devices can be placed on a network and interconnected IN ANY WAY YOU CAN IMAGINE.
Features
The Base Unit
Tech Specs
DA8/DA8P Specifications |
|
| Max Line Output @ 0 dBFS (jumpers on +24 dBu) | +24 dBu +0/-0.5 dB |
| Frequency response +0/-0.3dB @ fs = 48000 Hz | 6 Hz – 20 kHz |
| Frequency response +0/-0.3dB @ fs = 2.8224 MHz (DSD) | NA / 6 Hz – 20 kHz |
| Frequency response +0/-3.0dB @ fs = 2.8224 MHz (DSD) | NA / 2 Hz – 50 kHz |
| Line Output Impedance (Differential) | 100 Ω |
| Dynamic Range (A-weighted, typ) | 126 dB |
| THD+N D/A (1 kHz) @ 0 dBFS (IOM-HORUS-DA8) | < -113dB (0.00022 %) |
| THD+N D/A (1 kHz) @ 0 dBFS (IOM-HORUS-DA8P) | < -115dB (0.00018 %) |
| Interchannel Crosstalk @ 1kHz, typ. | -135 dB |
| Connector Pinout (DB-25 female) | AES59/Tascam Analog |
Line Output Section |
|
| Max Output level software switchable for 0 dBFS | +24 dBu / +18 dBu +0/-0.5 dB |
| Frequency response +0/-0.3dB @ fs = 48 kHz | 6 Hz – 22 kHz |
| Frequency response +0/-3dB @ fs = 96 kHz | 6 Hz – 44 kHz |
| Frequency response +0/-3dB @ fs = 192 kHz | 6 Hz – 88 kHz |
| Output Impedance (Differential) | < 100 Ω |
| Dynamic Range (A-weighted, typ.) | 123 dB |
| THD+N (1 kHz) @ 0dBFS | < -108 dB (0.0004 %) |
| Interchannel Crosstalk @ 1kHz | < -135 dB |
| Connector Pinout | DB-25 / AES59 (Tascam Ana.) |
Latencies |
|
| Input latency at 44.1/48kHz | 16 samples |
| Input latency at 88.2/96kHz | 16 samples |
| Input latency at 176.4/192kHz | 13 samples |
| Output latency at 44.1/48kHz | 9* samples |
| Output latency at 88.2/96kHz | 9* samples |
| Output latency at 176.4/192kHz | 9* samples |
| * Filter setting - Slow Roll Off Filter option = 9 Samples - Sharp Roll Off Filter option = 38 Samples |
|
