MKDS7
MKDS7
length: 7 m
Our high-quality microphone cables are produced in any required length.
They are extra thin and flexible, thus carrying less physical noise.
Thanks to their poly urethane coating they remain flexible even in very low temperatures.
The braided shield takes care of optimum protection from EM or HF interference.
Intead of XLR connector, the standard microphone cables are also available with Tuchel connector.
7-pin XLR male to 7-pin XLR female
Flexible microphone cable with, braided screen, non-crush, breaking resistant, cold-resistant, easy spooling and unspooling, Ø 6,1 mm

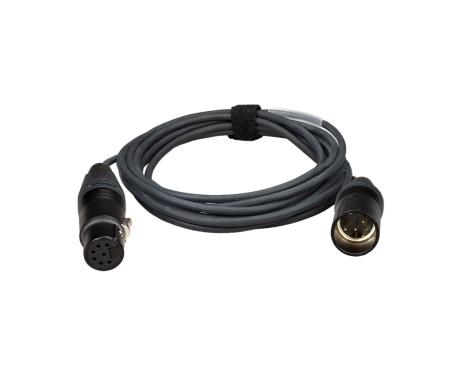

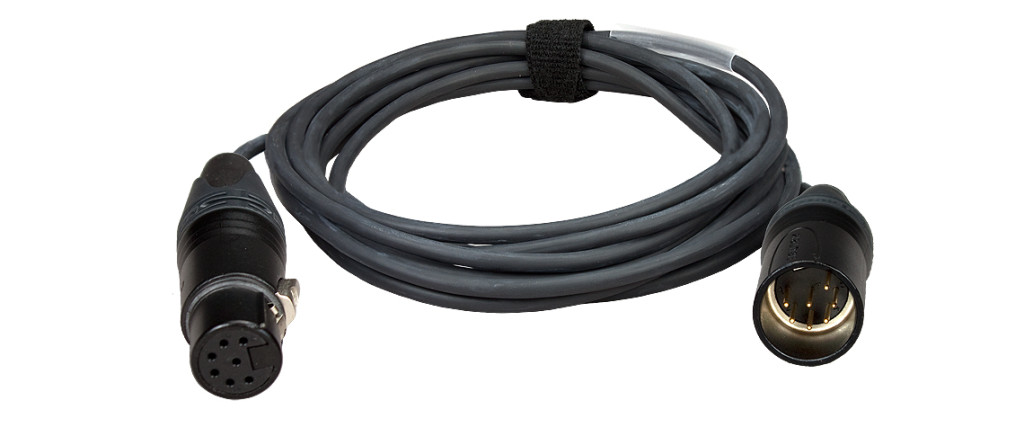

Pictured is the microphone cable with a length of 15 m (MKDS15)
Tech Specs
| 7-pin XLR female to 7-pin XLR male |
| Peridax cable |
| Braided screen |
| Diameter: 6,1 mm |
| Technical Description: |
| Conductor: tin-plated stranded copper conductor |
| Isolation: perimer |
| Stranding: 2 (4) stranded insulated wires |
| Overall shielding: tin-plated copper wires |
| Sheath: peripur |
| Color: black |
| Mechanical features: |
| Range of temperature: |
| Fixed usage | -40 °F up to +176 °F |
| Flexible usage | -13 °F up to +176 °F |
| Bending radius: |
| Fixed usage | 6x outer diameter |
| Flexible usage | 8x outer diameter |
