Flux Elixir V3, True Peak Multichannel Limiter
Flux Elixir V3, True Peak Multichannel Limiter
Elixir v3 is carefully designed to accomplish a true natural sounding result preserving the natural timbre of the audio material, meeting the broadcast, post-production and mastering industry norms with real True Peak output in accordance with the ITU-R BS.1770 and EBU R128 norms, with up to eight channels for multichannel/surround.
Main Benefits

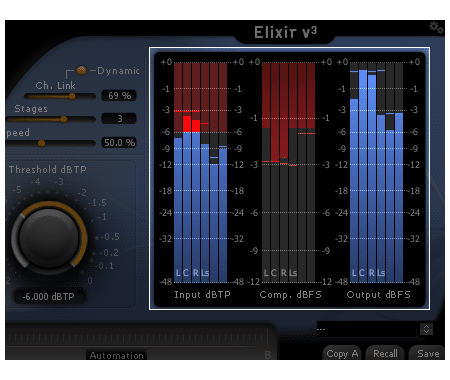

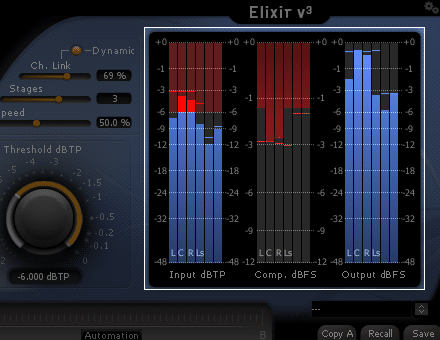

- True Peak level metering and limiting – ITU-R BS.1770 / EBU R128 Compliant
- Up to 8 channels Input/Output
- Input / Output Gain (-12/+12 dB) applied to the limiter input and to the output stage of the limiter
- Multistage processing, providing the option to set the algorithm to perform the limiting processing in multi-stages, in order to achieve even more precise and natural sounding results.
- True bypass control routing the incoming signal direct to the output for a smooth transition between clean and processed signal
- Preset/Parameter slots
- To enhance the workflow the two Preset/Parameter slots, A and B, can be loaded with two full set of parameters at the same time. Apart from saving each preset, a “Global Preset” containing both the A and B settings, and the position of the “Morphing Slider”, can be saved.

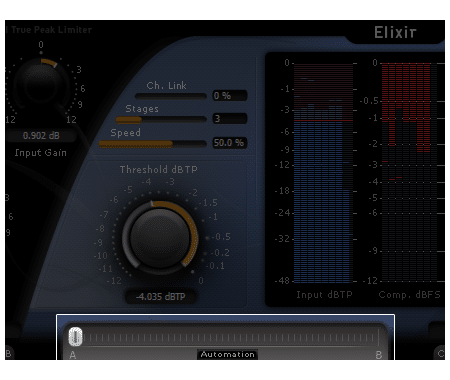

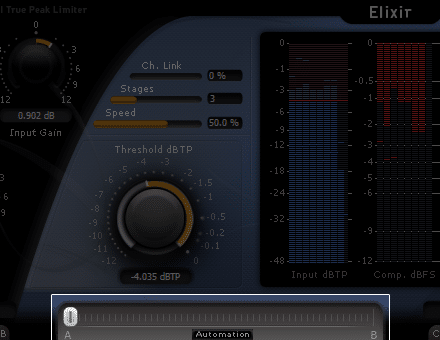

- Parameter Morphing Slider with Automation
- The Morphing Slider provides morphing between the parameter settings of slot A/B allowing for really creative and useful real-time tweaking. Enabling the Automation control button exposes the Morphing Slider to the host automation.
Description

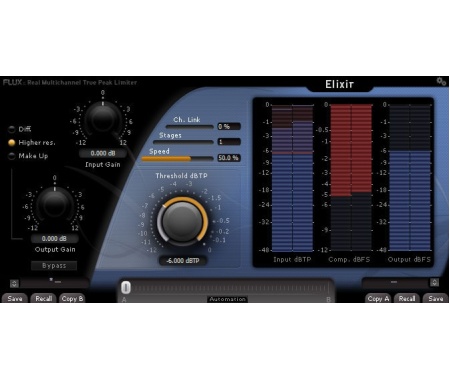

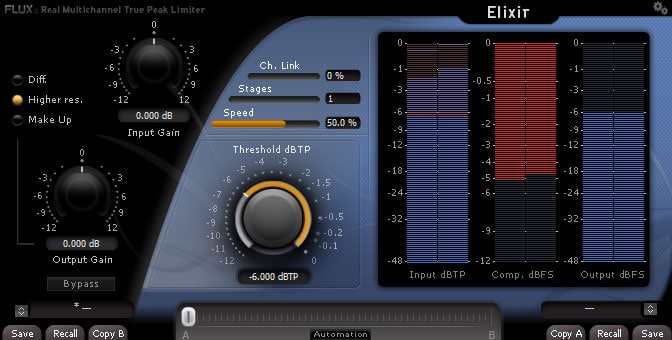

Quick and easy setup
Elixir’s straightforward user interface makes it exceptionally easy to achieve great results, even under a tight deadline.
Simply set the input level, adjust the Threshold according to the amount of limiting desired, and finally enable Make Up for gain compensation and loudness addition – That’s it!
Dual Preset Slots and Parameter Morphing
The built in preset manager and the preset morphing slider, provides instant and intuitive control of all parameters and controls. In a second, with a simple one-click operation, everything is copied from one of the two preset slots to the other, even during playback.
Details:
The two Preset/Parameter slots, A and B, can be loaded with two full set of parameters at the same time, and except for only A/B comparing two sets of parameters, the morphing slider will allow to mix them, and to record the morph with the host automation.
Stage Processing
For truly delicate and fine processing tasks, Elixir v3 presents a new innovative concept called Stages, providing the option to set the algorithm to perform the limiting processing in multi-stages, in order to achieve even more precise and natural sounding results.
Example: If the threshold is set to -3 dB and the ‘Stages’ parameter set to 3, the first stage will limit at -1dB, the second stage will limit at -2dB and the third will limit at -3dB, with analyzing performed in each of the three stages.
Tech Specs
Elixir v3 is available in:
AU / VST / AAX Native / AAX DSP / AAX AudioSuite / Waves WPAPI
- Merging VS3 MassCore/Native for Pyramix 10/11 & Ovation 6/7
Elixir v3, as all Flux:: plug-ins, provide
- Up to 8 channels Input/Output.
- 64-bits internal floating point processing.
- Sampling rate up to 384 kHz DXD (Pyramix & Ovation MassCore/Native)
- Sampling rate up to 192 kHz for Native (AU/VST/AAX/AAX AudioSuite).
Hardware requirements:
A graphic card fully supporting OpenGL 2.0 is required.
- Mac OS X: OpenGL 2.0 required – Mac Pro 1.1 & Mac Pro 2.1 are not supported.
- Windows: If your computer has an ATi or NVidia graphics card, please assure the latest graphic drivers from the ATi or NVidia website are installed.
Software licence requirements:
In order to use the software an iLok.com user account is required (the iLok USB Smart Key is not required).
Compatibility:
All major native formats are supported
Windows – 7 SP1, 8.1 and 10, all in 64 bits only.
- VST (2.4)
- AAX Native
- AAX AudioSuite
- Waves WPAPI
- Merging VS3 (Only in Windows 7 64 bits)
Mac OS X (Intel) – 10.7.5, 10.8.5, 10.9.5, 10.10.5, 10.11.6 and 1.12.6.
- VST (2.4)
- AU
- AAX Native
- AAX AudioSuite
- Waves WPAPI
AAX DSP Specifications:
| AAX DSP Number of Elixir v3 instances per dsp. |
|||
| 44.1 – 48 khz (1 FS) | 88.2 – 96 khz (2 FS) | 176.4 – 192 khz (4 FS) | |
| 1 Channel | 3 | x | x |
| 2 Channels | 1 | x | x |
| 3 Channels | x | x | x |
| 4 Channels | x | x | x |
| 5 Channels | x | x | x |
| 6 Channels | x | x | x |
| 7 Channels | x | x | x |
| 8 Channels | x | x | x |
| AAX DSP Number of Elixir v3 1-Stage instances per dsp. |
|||
| 44.1 – 48 khz (1 FS) | 88.2 – 96 khz (2 FS) | 176.4 – 192 khz (4 FS) | |
| 1 Channel | 8 | 2 | 2 |
| 2 Channels | 4 | 1 | 1 |
| 3 Channels | 2 | x | x |
| 4 Channels | 2 | x | x |
| 5 Channels | 1 | x | x |
| 6 Channels | 1 | x | x |
| 7 Channels | 1 | x | x |
| 8 Channels | 1 | x | x |
