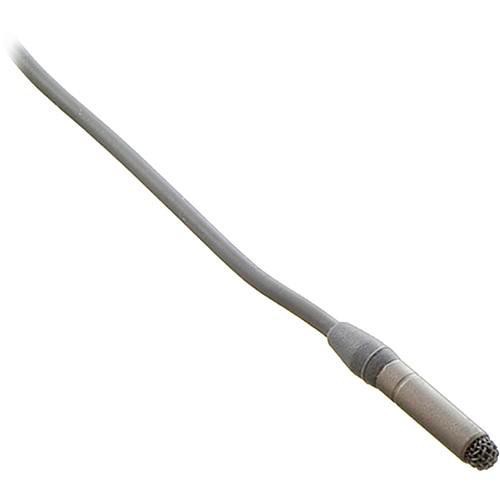

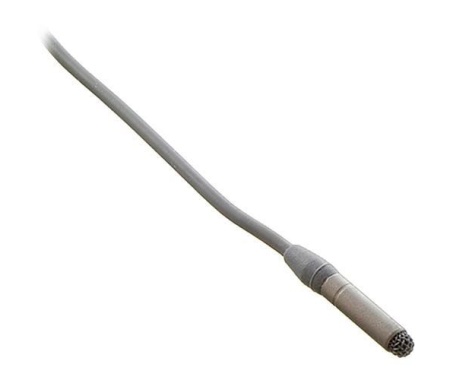

Sanken COS-11DBP Omnidirectional Battery/Phantom Lavalier Microphone (Gray)
The gray COS-11DBP Omnidirectional Battery/Phantom Lavalier Microphone from Sanken delivers the audio performance that meets the standards of digital wireless microphone transmitters. The COS-11DBP addresses the noise issues associated with digital in order to ensure a pristine audio signal. The wide frequency response ensures an accurate, transparent audio reproduction. Its omnidirectional polar pattern provides a generous pickup area while minimizing feedback and off-axis noise.
Main Benefits
- Optimized for Digital Transmission
- XLR Connector
- AA Battery Powered
- Shielded RF Noise Protection
- Omnidirectional Polar Pattern
- Water-Resistant Design
- Wide Frequency Response
Description
An improved water-resistant mesh screen protects against humidity, perspiration, makeup, bad weather, etc. The miniature profile of the lavalier makes it an ideal solution for professional theater, video recording, film, and broadcast applications.
- Optimized for Digital Transmission
- Addresses the noise issues associated with digital in order to ensure a pristine audio signal.
- 3-Pin XLR Connections
- Features a 3-pin XLR connection that houses a AA battery. This version is capable of +48 to +52V phantom or battery operation.
- Meets High-Definition Audio Standards
- The wide frequency response, low noise, and transparent audio reproduction meet the demands of high-definition audio sound reinforcement and recording systems.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides a generous pickup area while minimizing noise and feedback at the off-axis sections.
- Water Resistant Mesh Screen
- The improved mesh screen protects the element against moisture damage.
- Miniature Profile
- The miniature profile of the lavalier makes it an ideal solution for professional theater, video recording, film, and broadcast applications.
Tech Specs
| Transducer | Self-polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 50 Hz to 20 kHz |
| Dynamic Range (Typical) | Not Specified by Manufacturer |
| Signal-to-Noise Ratio | 28 dBA |
| Maximum Input Sound Level | 127 dB |
| Power Requirements | +12 to +52 V AA battery |
| Output Impedance | 180 Ohms |
| Output Connectors | 3-pin XLR |
| Pad | No |
| Low Frequency Roll-Off | No |
| Cable Length | 9.8' (3.0 m) |
| Dimensions (L x Diam) | 0.63 x 0.15" (16.1 x 4 mm) |
| Weight | 3 oz (82 g) |

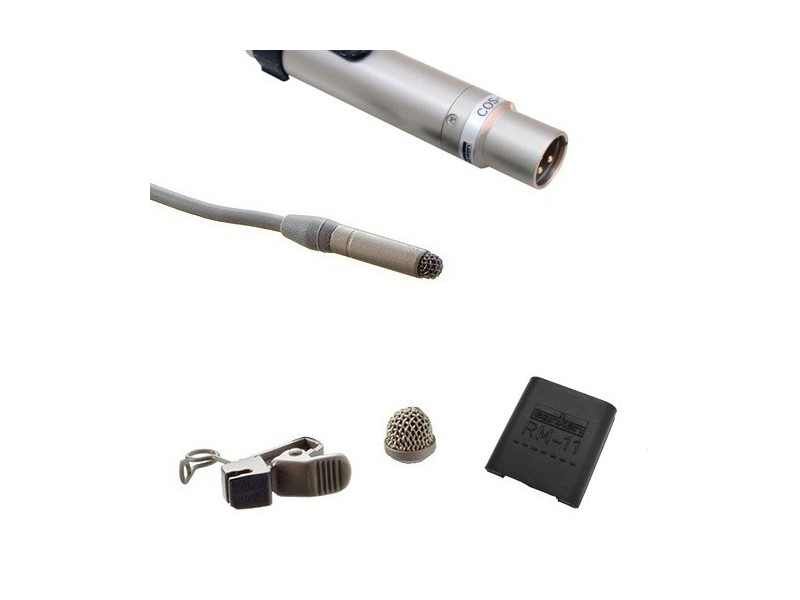

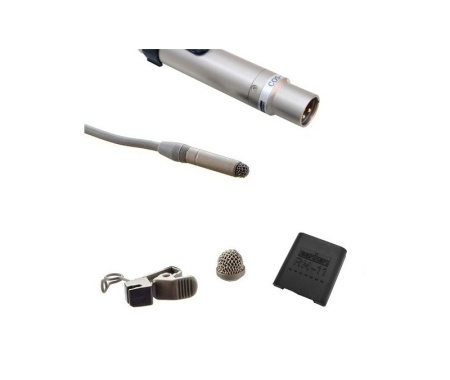

Included Accessories
| HC-11 holder clip |
| WS-11 metal windscreen |
| RM-11 rubber mount (BE,WH type) RM-11-BK (BK,GY type) |
| AA battery |
| instruction manual |
| warranty card |
| vinyl case |
Graphics
Frequency Response
♦ Fig-1
Polar Pattern
♦ Fig-2
