CL-9
CL-9
Linear fader controller for the 788T Digital Recorder. Includes 100 mm linear faders, rotary trim control, adjustable single-band parametric eq, pan control, and solo per input. Rotary level controls for L, R, Aux 1, and Aux 2 tracks and outputs. Also offers two PL comm return inputs. Powered by 788T USB connection.
Main Benefits
- Eight 100mm Linear Faders
- Rotary Trim and EQ Controls
- Dedicated Talk back Mic Connections
- Fast Response
Description

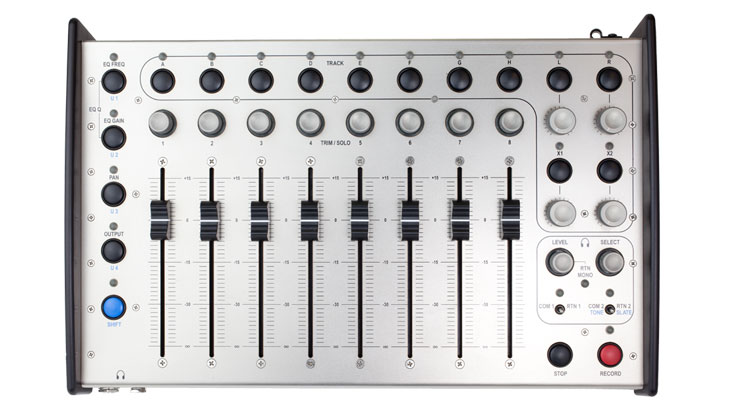

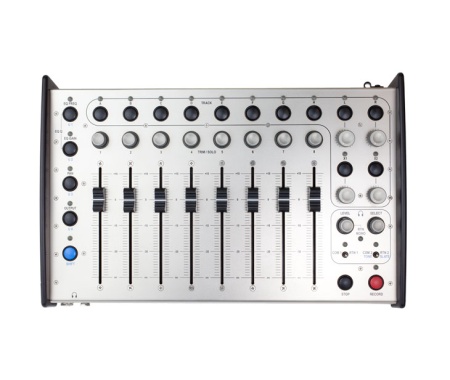

The Sound Devices CL-9 Linear Fader Controller features a small profile, 8 linear faders, rotary and push-button controls that establishes a comfortable recording and mixing surface when used with the 788T digital recorder. The USB powered CL-9 features dedicated connections for talk-back and talent / engineer communication, controllers for accessing the 788T's EQ and dynamics processing DSP, low latency operation and more.
- Eight 100mm linear faders for precise input level control
- Rotary trim control for each input with ring LED metering
- Sweepable, single-band parametric EQ per input with variable frequency, gain and filter Q
- Four rotary level controls for Left, Right, Aux1, and Aux2 tracks
- Input pan control
- Quick control of input, track, or output solo monitoring
- Output level control for outputs 1-6
- Two communication return inputs for private talkback circuits
- Record and Stop control
- Slate circuit for recording slate mic to tracks and sending to outputs
- Power and control from the 788T over the USB connection
- Remote level metering on Mac OS or Windows computers using Wave Agent
- Output muting
- Footswitch input for programmable switch closure (GPI)
- Four additional user-progammable controls, useful to assign menu items to physical controls
- Stainless-steel chassis with and machined aluminum end panels
Tech Specs
| Connections | Balanced Line level XLR Inputs (40k ohm) x2 1/4" TRS Phone Headphone Input (10k ohm) 1/4" TRS and 1/8" (3.5mm) Mini Headphone Outputs 1/4" TRS Phone Headphone Pass-Through (100 ohm) USB Bus to 788T |
| Frequency Response | 20Hz to 20kHz +/- 1dB @ 1kHz |
| Metering | Sunlight-Viewable LED Metering PPM, VU or Combination Level Metering Multi-color Backlit LCD Signal Present, Peak and Limiting LEDS |
| Power | USB Bus Powered from 788T 200mA @ 5V Typical |
| Construction | Aluminum and Stainless Steel Chassis |
| Dimensions | 2.75 x 13.75 x 8.75" (7 x 34.5 x 22.5cm) |
| Weight | 4 lb 11 oz (2.4kg) |
Downloads
998 855 Ft (786 500 Ft nettó)
gyártó: .. discontinued ..
termékkód:
CL-9
A kosárba helyezés gomb akkor jelenik meg, ha kiválasztotta a fenti értékeket
Specifikációk
|
|
