VPAKIII
V-Lock battery mount, 5x Hirose
The VPAKIII V-Mount Portable Power Supply from Ambient Recording is designed for high-capacity V-Mount camera batteries, and supplies power via 4-pin Hirose connectors to up to five devices. It features a USB charger port with 10W output power, four Hirose 4-pin sockets, and an output cable with Hirose 4-pin plug connector. The adhesive hook-and-loop tape allows you to mount the VPAKIII on a recorder or mixer. The Hirose connectors are protected by a self-resetting fuse.
Overview
Battery Power Distribution, VPAKIII
VPAK III V-Mount power distribution to 5x Hirose
The VPAK III is designed for high capacity V-Mount camera batteries. It supplies power via 4-pin Hirose connectors for up to five devices. Further, it features a USB charger port with 10 Watt output power so it can charge the most power hungry pieces of equipment.
The Hirose connectors are protected by a self resetting fuse (release current 10A)

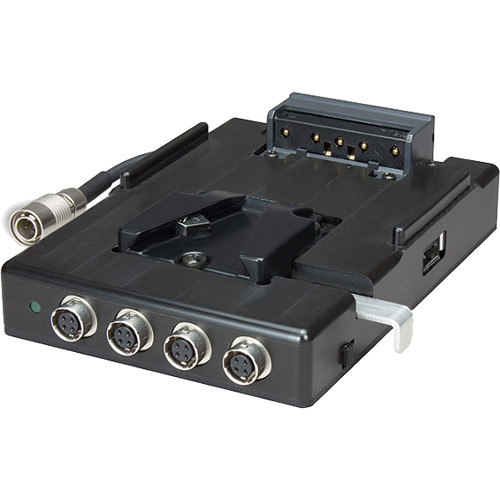

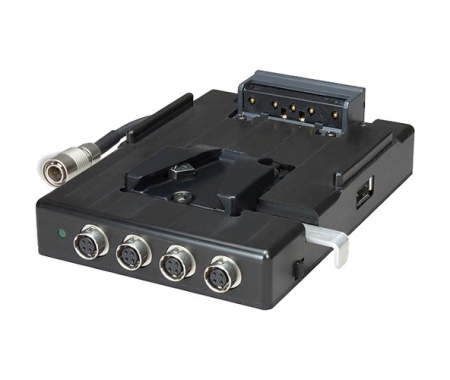

4x Hirose 4-pin socket, output cable with Hirose 4-pin plug connector

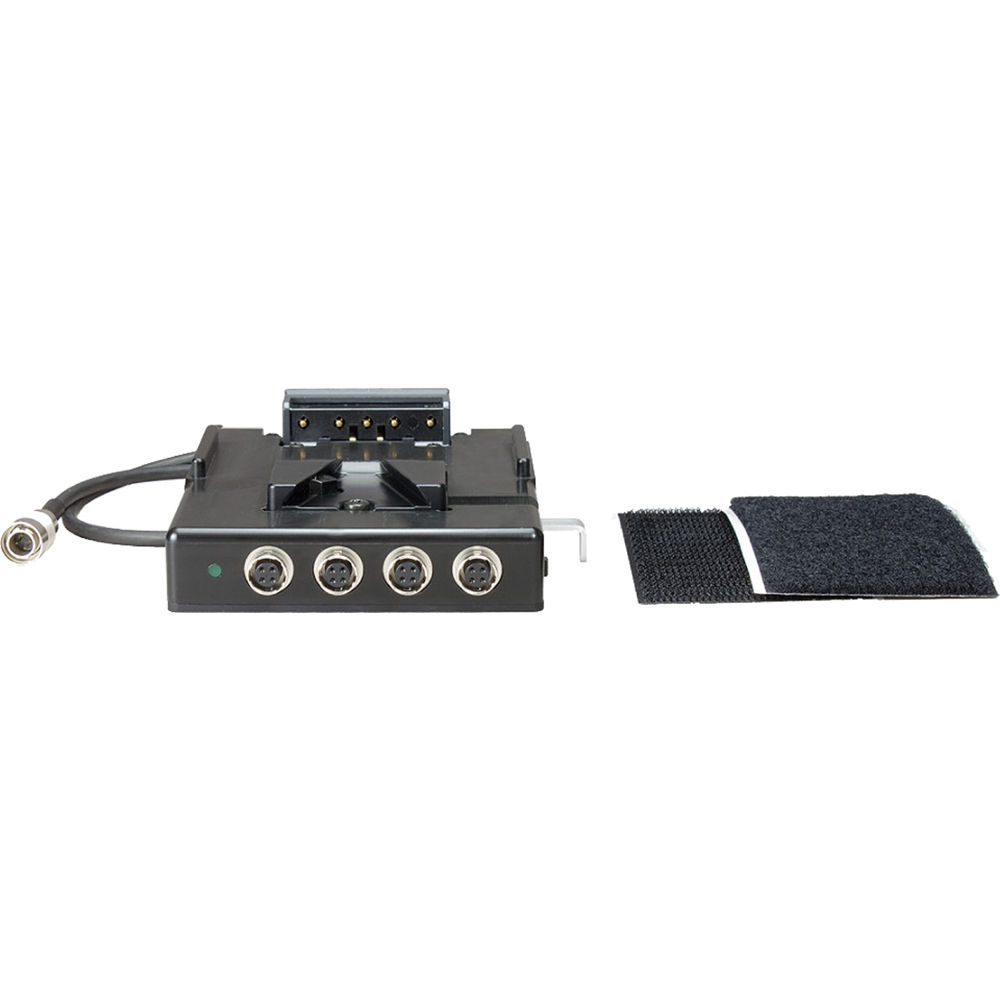

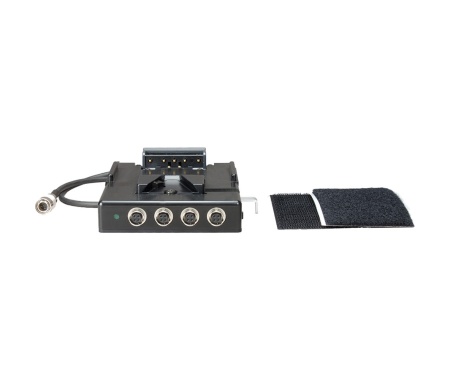

Delivered with adhesive hook-and-loop tape to mount the VPAK III on recorder or mixer.
Tech Specs
| USB Charging | USB charging port with 10 W output power |
| Material | POM |
| Output Cable Length | 15.7" (40 cm) |
| Dimensions | 3.2 x 0.6 x 4.5" (82 x 15 x 115 mm) |
| Weight | 8.8 oz (250 g) |
