20900 - TouchMonitor TM9
TouchMonitor TM9:

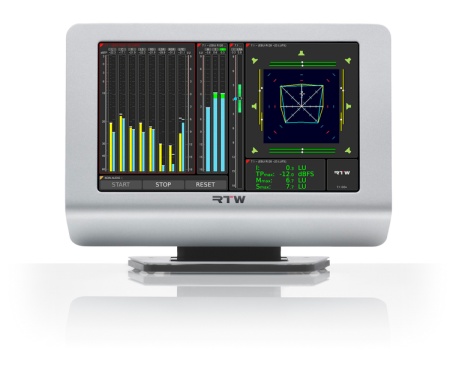

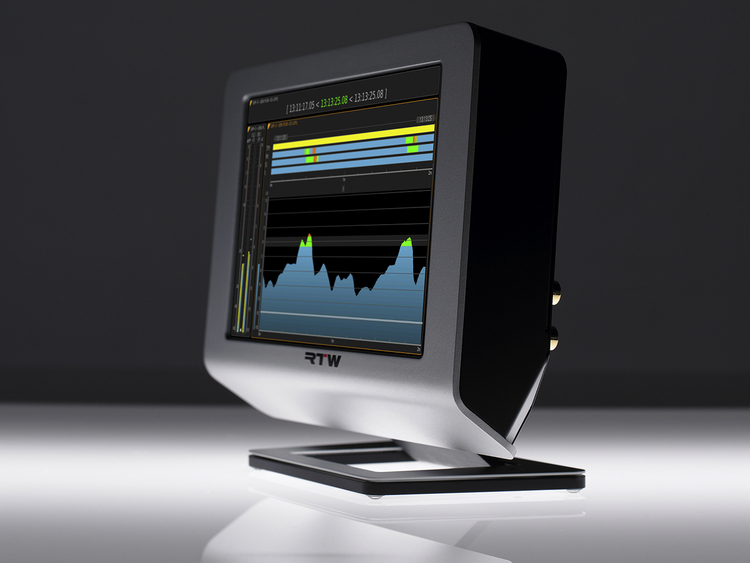

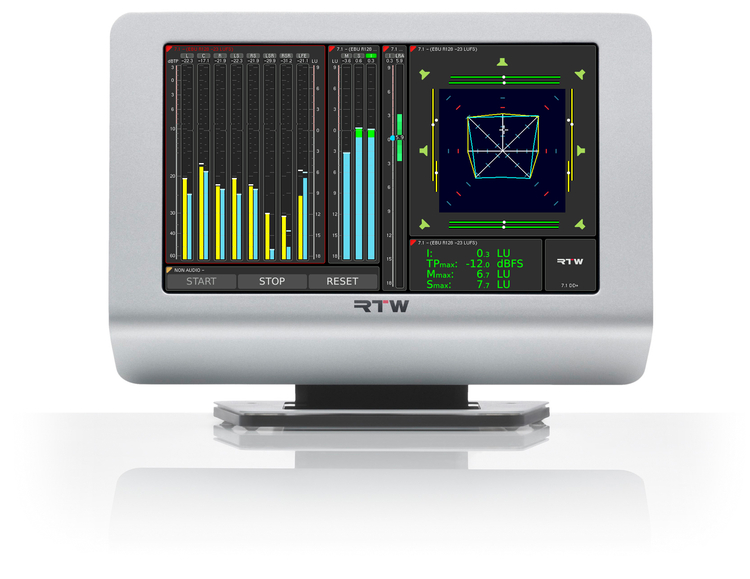

Main unit with 9" 16 : 9 TFT resistive touch screen in table-top frame, with table-stand and mains adapter. Basic 4-channel PPM software: Peak, True Peak, correlation, gain reduction. Display of up to 4 routed channels in a maximum count of 4 groups at a time (single channel or 2-channel stereo).Mulitchannel display and other software modules for expansion are available as options (licences, see SW200nn) Additionally, one Audio Interface shall be selected and ordered: HW 20911, HW20912, HW20913, HW20914, or HW20915. Order no.: 20900 + HW2091n
Main Benefits:
- Easy and fast touch screen control with comfortable onscreen help
- Highly flexible screen layout options with scalable instrument
- Powerful DSP platform for parallel display of multiple instruments
- Fully scalable, modular software approach for flexible configuration and easy on-site upgrades
Description
The new level
The all-new audio metering units of the TouchMonitor range is RTW‘s answer to growing requirements in today‘s production, post-production, and broadcast world. Equipped with high-grade 7“ or 9“ touch screens and an easy-to-use GUI, TouchMonitor enters a new level of professional audio metering in terms of precision, performance, efficiency and flexibility.
Simple and flexible

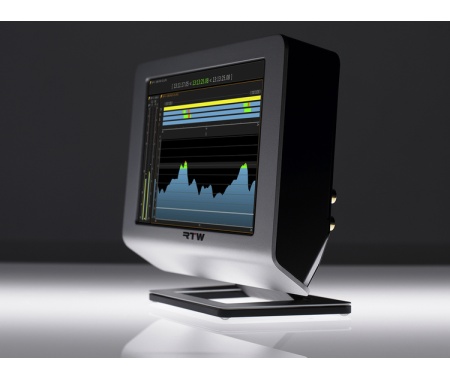

The graphical user interface used in the TouchMonitor TM9 is controlled simply by using your finger or a mouse. Instruments can be scaled, randomly positioned and combined in almost every way for optimized use of available screen space. Even multiple instruments of the same type, assigned to different input channels and configurations, can be displayed simultaneously. Plus, a context-sensitive, on-screen help feature supports the user, allowing him to make setup changes with ease.
Update 6-01 expands basic software and instruments
Firmware version 6-01 expands the basic software to 4-channel display, 4 x Mono, 2 x Stereo, 2 x Mono and 1 x Stereo can be measured without the need of an activated Multichannel licence. RTA provides a 1/12-octave mode, Cinema Loudness standards (LEQ(M), TASA, SAWA) have been implemented, and the Audio Vectorscope instrument allows up to 4 instances. The output routing can individually be adjusted for each preset, all presets can be exported or imported at the same time. Further details can be found in the Release Notes (included in the update package), or in the data sheet.
Customers with TouchMonitor devices of TC elelctronic® may convert their units to RTW devices purchasing the optional licence SW20021.
For existing units the firmware is available for download. See the Audio Monitors/TouchMonitor TM9 section of members area (Manuals & Software).
Features
- Easy and fast touch screen control with comfortable onscreen help
- Highly flexible screen layout options with scalable instrument
- Powerful DSP platform for parallel display of multiple instruments
- 16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)

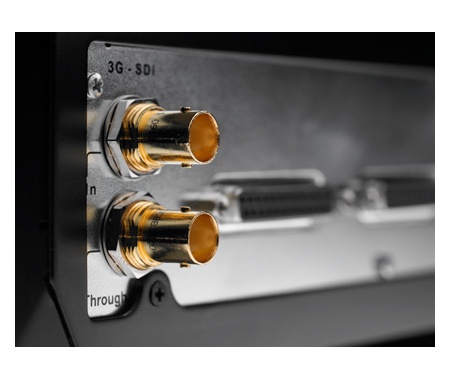

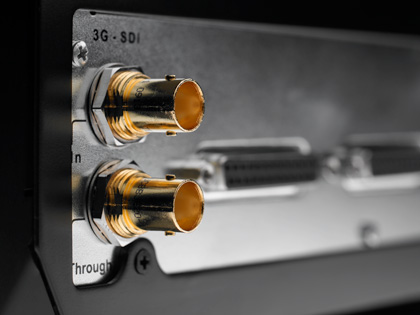

- Optional 3G-SDI interface for audio signals of 3G/HD/SD SDI data streams
- Fully scalable, modular software approach for flexible configuration and easy on-site upgrades

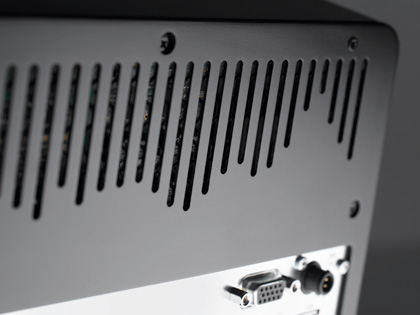

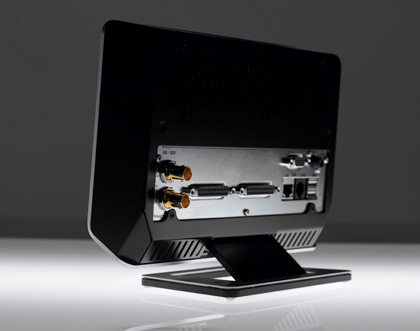

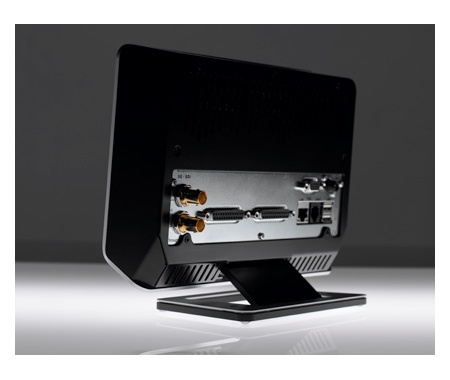

- Ethernet/LAN, USB, VGA and GPIO ports
- 9" touch screen 16 : 9 TFT

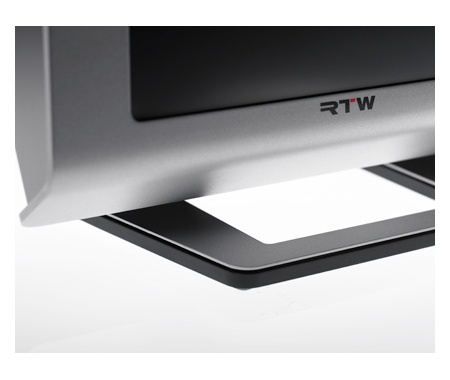

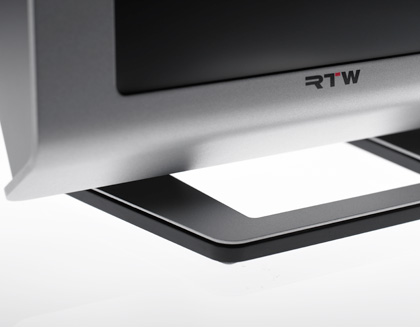

- Table-top unit, approx. 245 x 165.5 (185.5) x 46.5 (95) mm, W x H x D (with table-stand), incl. mains adapter
- Flush mount versions available (please contact our sales department)
- Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)
- Other software modules available as options
Instruments
Every device comes with a comprehensive basic software package including all relevant measuring tools and instruments for the immediate use in many applications. For specific demands, the feature set can be expanded with software modules (licences).
Basic Software
PPM
Basic 4-channel PPM and TruePeak meter for up to 4 of the routed channels in a maximum count of 4 audio groups at a time with analog and digital scales, Peak Hold, Peak Memory, Over indicator, numerical display. Additional control keys for positioning on the display. Loudness bargraphs switchable with SW20002.
Stereo-Correlator
Stereo Correlator instrument for displaying the phase relationship between the two channels of a stereo signal for the evaluation of mono compatibility. Additional control keys for positioning on the display.
AES Status
AES Status monitor for displaying various parameters of AES3 digital audio signals in plain text. Additional control keys for positioning on the display.
Gain Reduction
Instrument for the display of external gain reduction data streamed by dynamic processors used in audio equipment and fed to the TouchMonitor via its Network interface and TCP/IP, for example the compressor activity of a mixing desk channel. Multi-channel mode available with SW20001.
Global Keyboard
Global Keyboard with definable on-screen keys for simultaneous control of defined functions in multiple instruments, and for preset recall. It also allows external control vial GP IO interface.
Software Licence SW20001 Multichannel Mode
8-channel PPM
PPM and TruePeak meter for up to 8 channels in a group processing Mono, Stereo, 3.1 Surround, 5.0 Surround, 5.1 Surround, 7.1 Surround (Cinema and DD+), and Multi-Channel (2 to 8 channels in one block, up to 4 blocks with 3G SDI option) formats. Simultaneous display of multiple channels or channel groups. Analog and digital scales, Peak Hold, Peak Memory, Over indicator, numerical display. Additional control keys for positioning on the display. Loudness bargraphs switchable with SW20002.
The elements of Multichannel-PPM
Software Licence SW20002 Loudness and SPL Display
Loudness Sum
Loudness Sum bargraph instrument for the display of the summed Loudness values M, S, and/or I of a Loudness measurement acc. to EBU R128, ITU BS.1770-3/1771-1, ARIB, ATSC A/85, OP-59, AGCOM, CALM Act, LEQ(M), TASA, SAWA, or specified by customer. SPL meter. Additional control keys for positioning on the display.
Loud. Num.
Loudness Num instrument for the numerical display of all relevant values of a loudness measurement: M, S, I, LRA, TPmax, Mmax, Smax, Itime. Additional control keys for positioning on the display.
LRA
Loudness Range instrument with MagicLRA mode for a graphical representation of Loudness variances. Adjustable ranges with different colors. Additional control keys for positioning on the display.
Dialnorm (only available together with SW20001)
Calculation and display of numerical Dialnorm values (w/o speech intelligence) from digital surround signals. Additional control keys for positioning on the display.
Software Licence SW20003 RTA - Real Time Analyzer
RTA
Real Time Spectrum Analyzer instrument with adjustable weighting filters for displaying the spectral content of the input channels using 31 (1/3-octave), 61 (1/6-octave), or 120 (1/12-octave) filter bands. Highpass filter for High Band (> 20 kHz). Additional control keys for positioning on the display.
Software Licence SW20004 SSA - Surround Sound Analyzer
--- requires SW20002 ---
SSA
Visualisation of the interaction of all important parameters of stereo or surround signals (with SW20001). The dynamic behaviour of all display elements (House display) corresponds to the subjective listening impression to see the balance of a surround programme intuitively and at a glance. Additional control keys for positioning on the display. Without SW20001, the display is reduced to Stereo.
Specifications | The elements of SSA
Software Licence SW20005 Radar Display
--- requires SW20002 ---
Radar
High resolution circular Loudness or longitudinal chart display for Momentary values and history, enhanced with numerical display of measuring time and two descriptors. Additional control keys for positioning on the display.
Software Licence SW20006 RTW Premium PPM
Premium PPM
Expansion of the PPM and TruePeak meter with additonal scales (Zoom, SMPTE, NHK, ARD+9, et. al.) and display modes (segment, classic). With SW20001, corresponding expansion of multi-channel PPM. Additional control keys for positioning on the display.
Moving Coil
2-channel stereo needle instruments with PPM (British) and VU display. With SW20002, also Loudness display and combined PPM and Loudness display (BBC mode) available. Additional control keys for positioning on the display.
VSC - Vectorscope
2-channel Audio Vectorscope for displaying the phase relationship between the two channels of a channel pair (Lissajous display). With SW20001, four instances and 4-channel display available. Additional control keys for positioning on the display.
Specifications | The elements of VSC
Multi-Correlator (only available together with SW20001)
Multifold correlator instrument for displaying the phase relationship between the two channels of all available channel pairs of a surround signal. Additional control keys for positioning on the display.
Specifications | The elements of Multi-Correlator
Software Licence SW20008 Timecode Reader
--- requires SW20002 ---
Timecode Reader
Decoding and display of an SDI-embedded or LTC timecode using the 3G-SDI interface (HW20930 option) or one of the selectable audio inputs.
Loud. Recal.
Instrument for the control of a loudness measurement by a timecode either with program loudness recalcualtion or without. Additional control keys for positioning on the display.
Software Licence SW20013 BLITS
--- requires SW20001 ---
BLITS
Generation of digital line test signals according to EBU 3304, GLITS, and BLITS definitions as well as automatic and significant analyzing of channel allocation, level, phase and delay, and polarity of received BLITS 5.1 test signals.
Software Licence SW20014 Logging Data Server
--- requires SW20002 ---
Logging
Instrument for data collection of Loudness and TruePeak measurements and for storing them on a USB memory stick or sending them via IP connection to the LQL - Loudness Quality Logger PC software for analyzing. Additional control keys for positioning on the display.
Loudness Chart
Graphical display and analysis of the courses over time of selectable values of a loudness measurement. Additional control keys for positioning on the display.
Specifications | The elements of Loudness Chart
