Suspension XX-Small (no connbox)

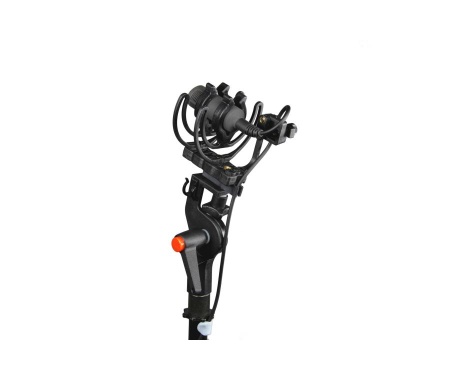

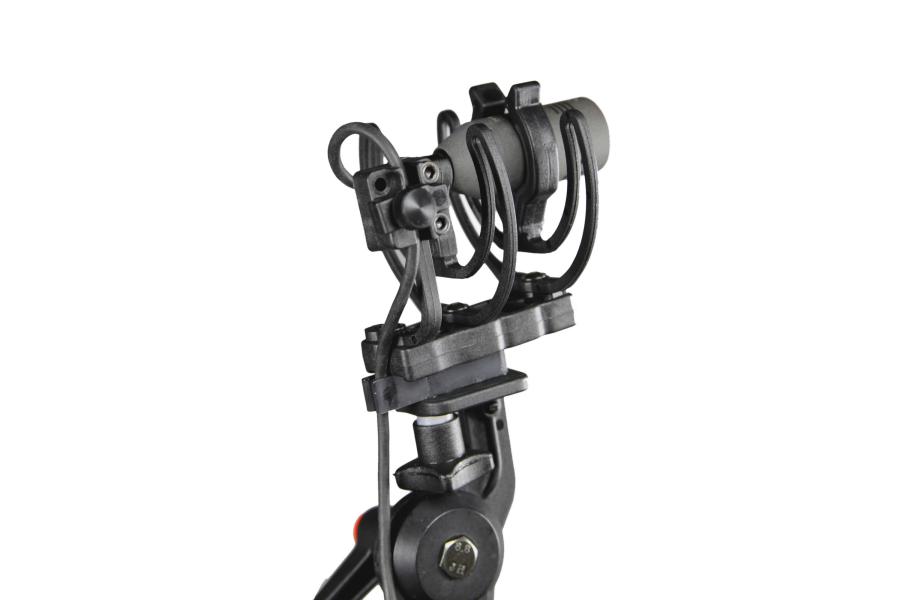

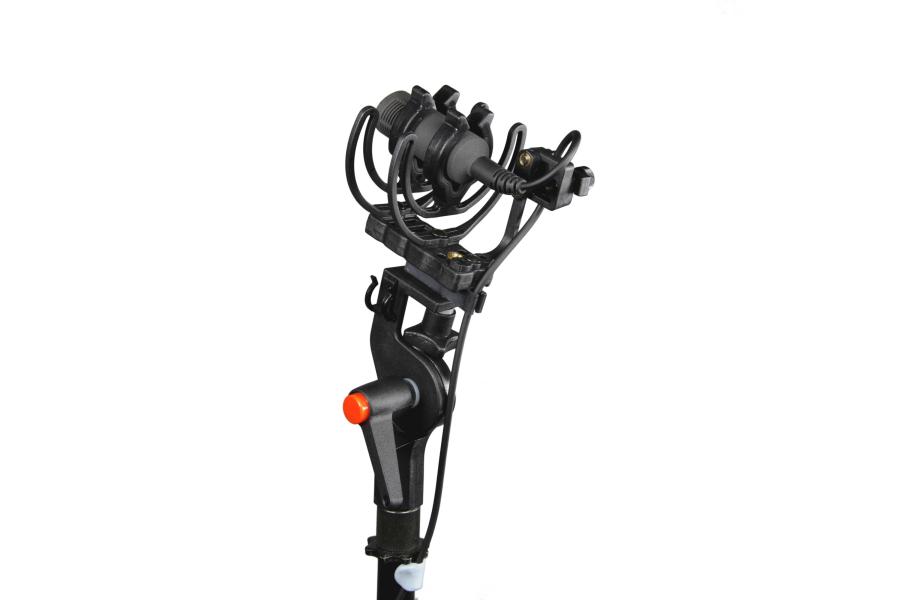

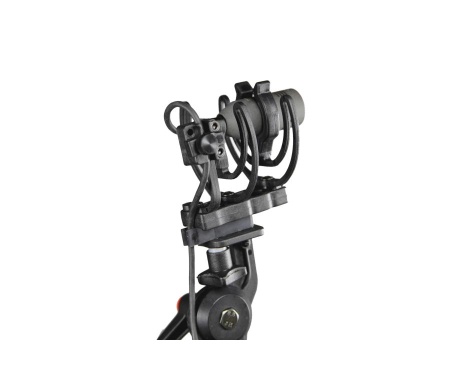

For compact condenser microphones or remote capsule setups. Equipped with two different Lyres mounted on the Mono Extended Ballgag Suspension. The front Lyre is a special 19/25mm diameter clip for holding the main part of the compact microphone. The rear Lyre is either an 8mm clip to hold the Lemo collar (Schoeps CCM) or a second 19/25mm clip to grip further back on the body (Sennheiser MKH 8000).

Bar: XX Small half module (40mm length)

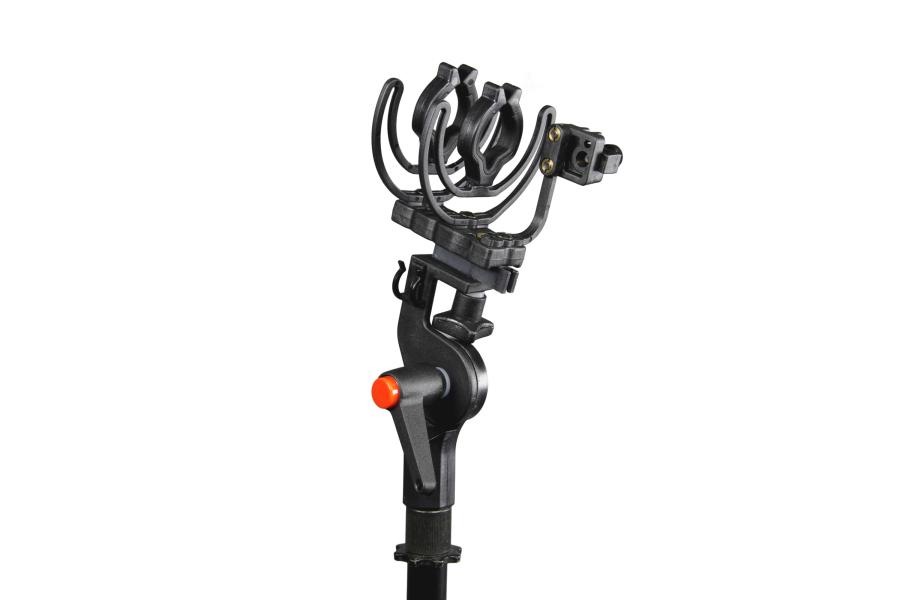

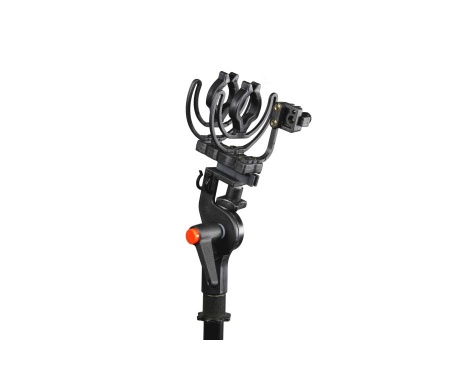

Lyres Fitted: 1 x Single Lyre 62 (19/25) and 1 x Single Lyre 62 (8)
Lyres as Spare: 1 x Single Lyre 62 (19/25)
Connbox: No Connbox

Small Modular suspensions are suitable for shotgun microphones from approximately 120mm to 210mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.

Medium Modular suspensions are suitable for shotgun microphones from approximately 210mm to 400mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.

Large Modular suspensions are suitable for heavier shotgun microphones from approximately 400mm up to 540mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.

	1 x XLR Holder MK II Product Code: 048493 The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system
	1 x Boom Poles Adaptor Product Code: 048402
	1 x Pistol Grip Handle with Lever Product Code: 048401

1x Single Lyre 62 (19/25), 1 x Single Lyre 62(8)
1x Single Lyre 62 (19/25) (as spare)
1 x X Small (3/4 module) Bar
1 x Hex Head Key

WS9Kit_noCB_086017_040106.pdf
Spares for the Modular Windshield 9 Kit (noCB) (08
