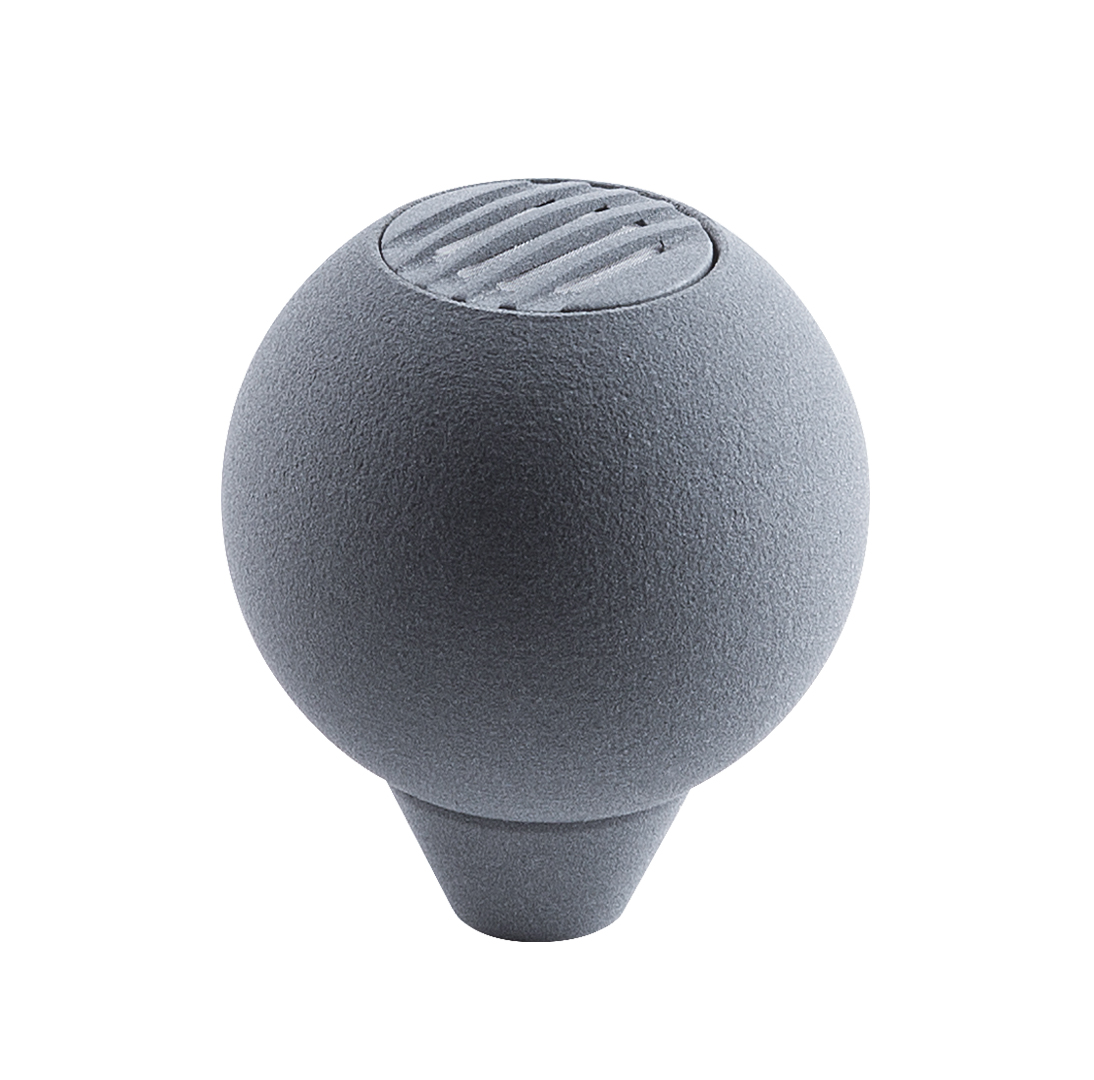

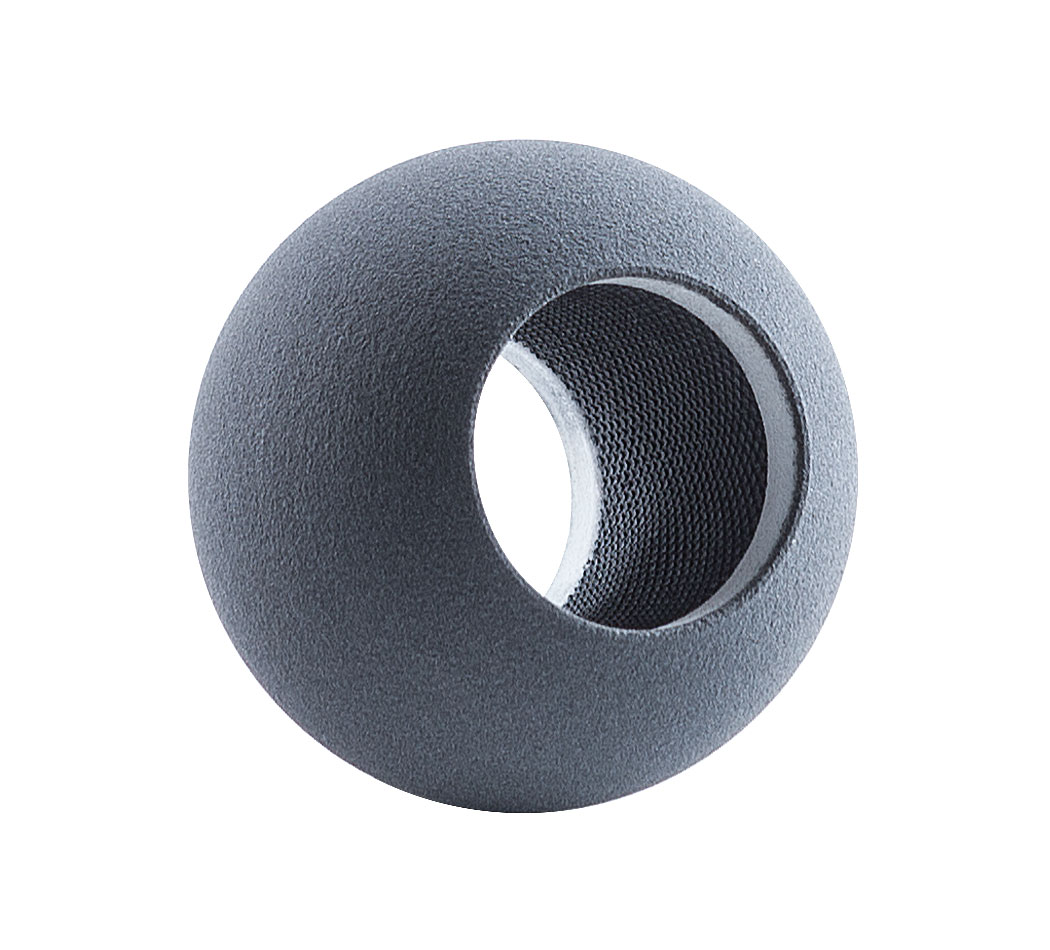

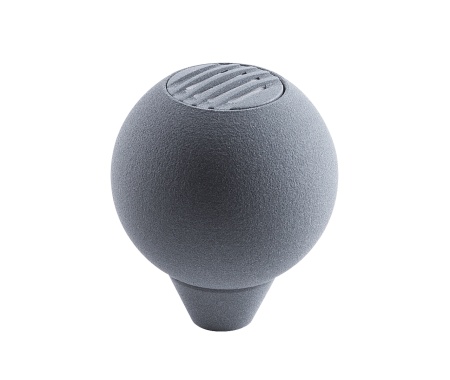

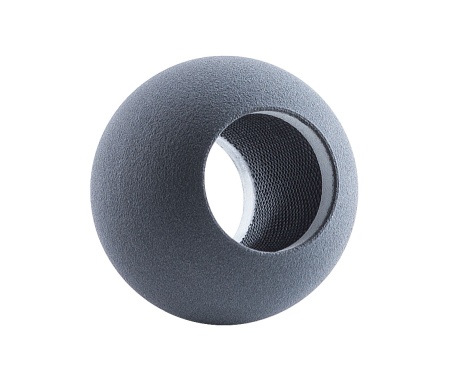

Schoeps KA 40 Sphere Attachment for omnidirectional microphones
Schoeps KA 40 Sphere Attachment for omnidirectional microphones

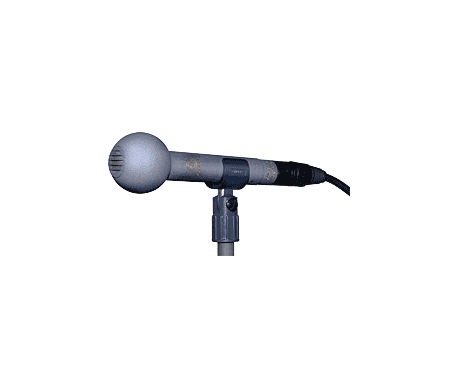

This sphere accessory (40 mm diameter) is for use with omnidirectional microphones as shown in the photo.
- sphere attachment for omnis
Overview
It creates the illusion of closer placement so that greater miking distances can be used while maintaining good ”focus” in the sound. This in turn improves the blend and balance when recording orchestras or choruses, for example. The effect is due partly to an increase in directivity, but mainly to the elevated midrange response (see frequency response curves. The low-frequency response remains undiminished.
Application
This sphere attachment is ideally suited for the “Decca Tree":
Specifications
| Specifications | |
|---|---|
| Diameter | 40 mm |
| Surface finish | matte gray |
Graphics
CMC 62 with KA 40
CMC 62 without KA
Downloads
| User guide | ||
|---|---|---|
| KA 40 Sphere attachment for altering the sound |
  |
Download (pdf, 268.89 kByte) |
