Schoeps Double M/S Windshield Set 4V Set including 2*CCM 4V L, 1*CCM 8 L, WSR DMS LU, K DMS 5 U, AK DMS/3U
Schoeps Double M/S Windshield Set 4V Set including 2*CCM 4V L, 1*CCM 8 L, WSR DMS LU, K DMS 5 U, AK DMS/3U

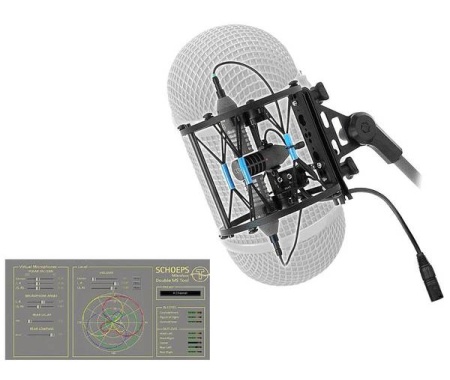

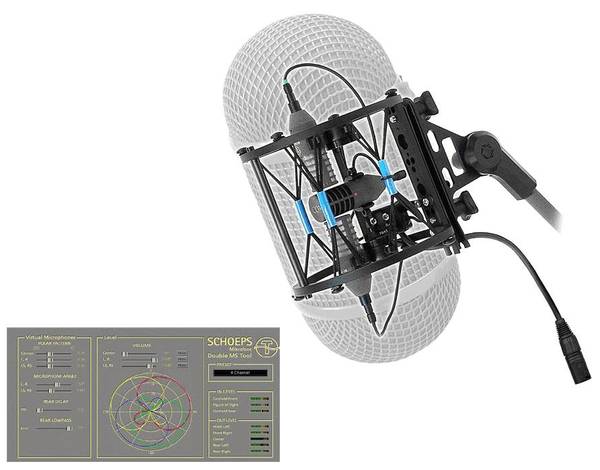

This double M/S set includes the microphones, windscreen and cables needed for double-M/S recording. It is designed for digital recording of the three unprocessed microphone signals, with subsequent post-processing to be performed through the use of our Double M/S plug-in.
Main Benefits
- complete set with three microphones for 5.0 surround with software matrix (DMS PlugIn)
- very small, lightweight array
- requires only three microphones and recording channels for 5.0 surround
Overview
This set comprises the following items:
- 2× CCM 4V Lg compact microphone (cardioid for lateral pickup),
- 1× CCM 8 Lg compact microphone (figure-8),
- WSR DMS LU windscreen,

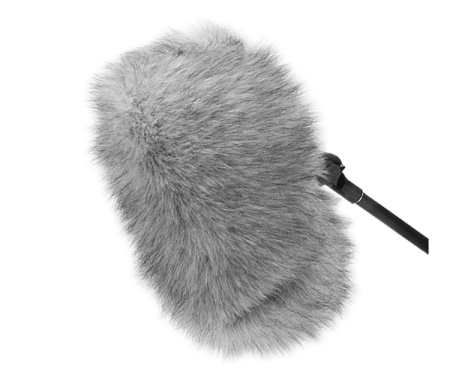

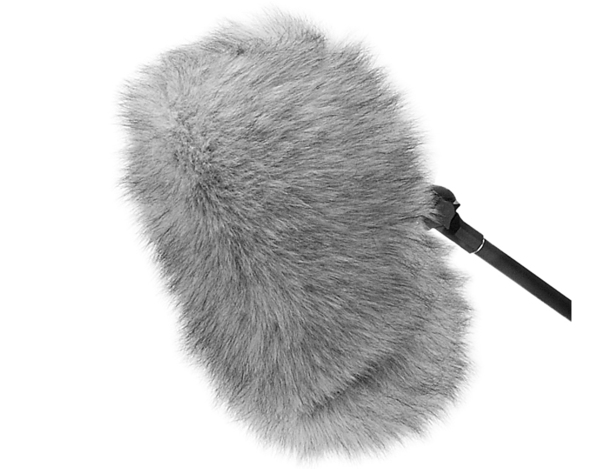

- WJ DMS Windjammer,
- K DMS 5 U XLR-7 extension cable,
- AK DMS/3U adapter cable (XLR-7 / 3× XLR-3)
The SCHOEPS "Double M/S Tool" plug-in enables customized, intuitive decoding of the three signals of the Double M/S system.
Description and download of the "Double MS Tool" can be found here.
Specifications
| CUT 1 | |
|---|---|
| Cut-off frequency (-3dB) | 70 Hz |
| Slope | 24 dB/oct. |
| Length | 64 mm |
| Diameter | 20/21 mm |
| Weight | 50 g |
| CUT 2 | |
|---|---|
| Cut-off frequency | 35 Hz |
| Slope | 24 dB/oct |
| Length | 64 mm |
| Diameter | 20 / 21 mm |
| Weight | 50 g |
Included Accessories
Adapter Cable AK DMS 3U
Compact Microphone CCM 4V
Compact Microphone CCM 8
Double M/S Basket windscreen with WindjammerWSR DMS LU
Surround Plug-in for RTAS, VSTDouble MS Tool (2011)
Surround Plug-in for RTAS, VST, AUDouble MS Tool BF (2012)
XLR-7 Multicore CableK DMS 5 U
Downloads
| Software plug-in | |
|---|---|
| Double MS Tool (2011) for RTAS Mac, VST Windows/Mac |
Download (zip, 2.67 MByte) |
| Double MS Tool BF (2012) Windows - Installer |
Download (zip, 989.1 kByte) |
| Double MS Tool - Documents | ||
|---|---|---|
| Double MS plugins 2012 Overview of the current plugins |
 |
Download (pdf, 2.27 MByte) |
| Papers | ||
|---|---|---|
| Double M/S Paper | |
Download (pdf, 4.72 MByte) |
| Microphone Usage for Sports Broadcasting Article on microphone techniques used in sports broadcasting |
|
Download (pdf, 1.69 MByte) |
| User guide | ||
|---|---|---|
| Double M/S WSR DMS LU, DMS-Splitter, Matrix MDMS U |
 |
Download (pdf, 1.31 MByte) |
| Lectures | ||
|---|---|---|
| Schoeps Surround Microphones presents the SCHOEPS Surround microphones |
|
Download (pdf, 1.3 MByte) |
