CUX-100K

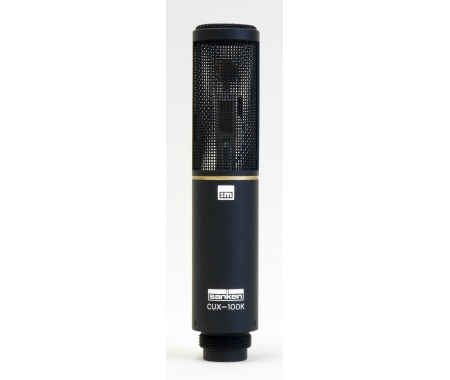

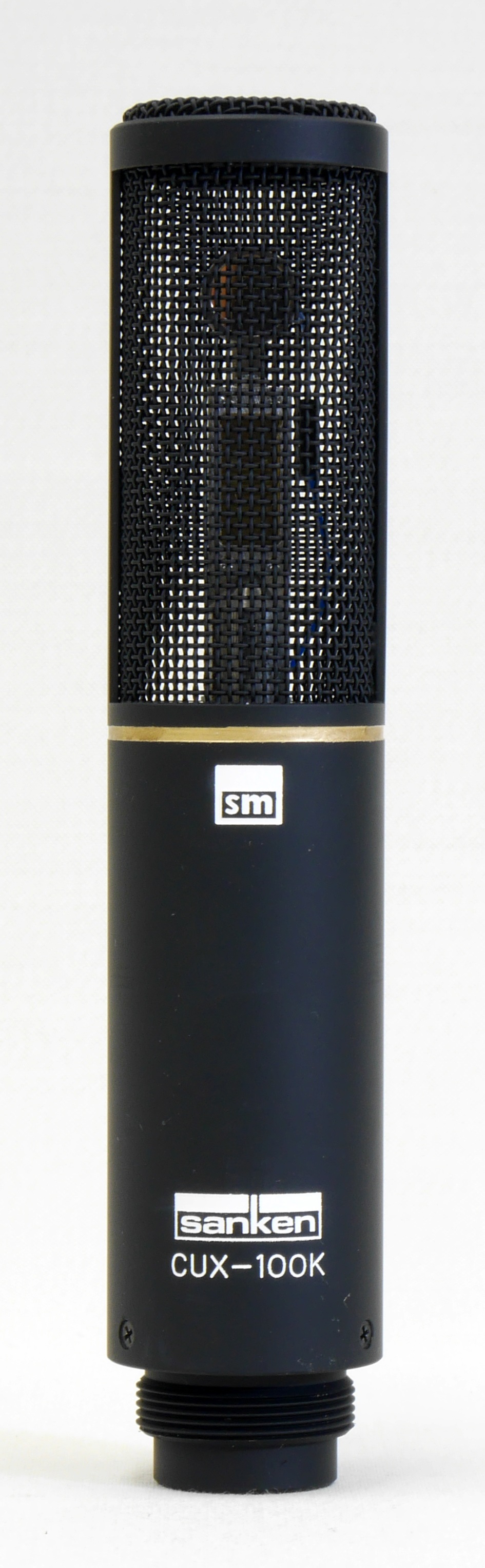

CUX-100K Super Wide Range Microphone (20Hz to 100kHz)
An omni/cardioid pattern super wide range condenser microphone with unprecedented 20Hz to 100kHz frequency response.
Main Benefits
- 20Hz to 100kHz Microphone
- Unique Diaphragm Design
- For Professional Recording
Description
The Sanken CUX-100K is the first 100kHz microphone in the world designed for actual professional recording, not for measurement purposes. A revolutionary microphone designed with NHK’s Science & Technical Research Laboratories, it is Sanken's response to those enthusiastic engineers who wish to record frequencies as high as 100kHz. After rigorous test recordings, it was found that this microphone is especially suited for classical music, acoustic instrument and sound effect recording.
Within the conventional "audible frequency" band of 20Hz to 20kHz the performance is exemplary, and clearly different. But the CUX-100K also provides the opportunity to experience musical sounds far beyond the typically accepted upper frequency limit. The CUX-100K is a new step in microphone technology, providing new realms of musical detail and nuance that has never before been possible.
Within the conventional "audible frequency" band of 20Hz to 20kHz the performance is exemplary, and clearly different. But the CUX-100K also provides the opportunity to experience musical sounds far beyond the typically accepted upper frequency limit. The CUX-100K is a new step in microphone technology, providing new realms of musical detail and nuance that has never before been possible.
Tech Specs
| Directivity | Cardioid / Omni directional |
|---|---|
| Transducer | DC biased condenser |
| Frequency range | 20Hz - 100kHz |
| Sensitivity (nominal at 1kHz) |
40mV/Pa (-28dB , 0dB=1V/Pa) |
| Equivalent noise level (A-weighted) |
17dB-A (Cardioid) 22dB-A (Omni) |
| Max SPL (1% THD) | 132dB SPL |
| Switch | Cardioid(Near & Far) / Omni 3position |
| Output impedance at 1KHz |
140 ohms |
| Powering | +48V phantom |
| Current consumption | 4.5mA |
| Weight | 207g |
| Dimensions | 148mm x 30mm(diameter) |
| Surface finish | matte black |
| Connector | XLR-3M |
Graphics
Frequency Response
♦ Fig-1-2
Polar Pattern
♦ Fig-3-4
