PIX 250i Complete
PIX 250i Complete

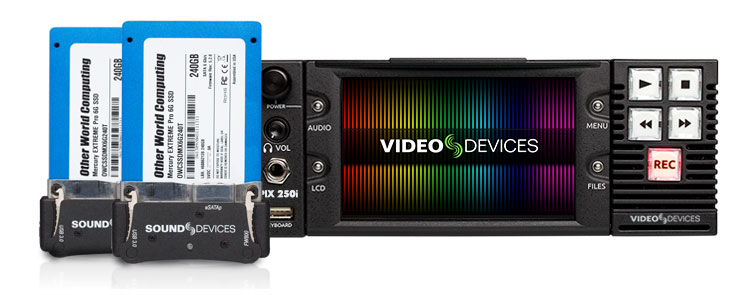

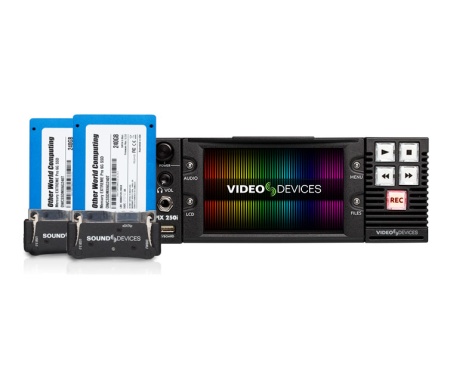

(1) PIX 250i Rack Mount Video Recorder with (1) XM-CADDY PACK, includes (2) 2.5" PIX SSD-6 240GB 2.5 inch SATA Drives pre-mounted to (2) PIX-Caddy2 drive mounting accessories. XL-WP4 power supply included. (PIX-RACK mounting accessory not included.)
Main Benefits
- Network Connected Video Deck & Recorder
- 2x 240GB SATA SSDs with Mounting Caddies
- SD/HD/3G-SDI & HDMI In/Out
- Up to 12-bit 4:4:4 I/O over 3G-SDI
- Apple ProRes and Avid DNxHD Codecs
- 5" IPS 800x480 Display
- Sequential or Simultaneous Recording
- Access and Transfer Files over Ethernet
- Up/Down/Cross Conversions
- Analog, AES/EBU, and Embedded Audio
Description
The Sound Devices PIX 250i Complete Kit with XM-CADDY Pack is a file-based video recorder featuring 3G-SDI and HDMI video inputs and outputs. It records edit-ready Apple ProRes or Avid DNxHD files and allows sequential or simultaneous recording to two 2.5" Sound Devices-approved SSDs. For added convenience, this kit features the XM-CADDY Pack, which includes two PIX-SSD6 240GB SSDs, each with a 2.5" Dive Caddy and mounting hardware for PIX recorders. The SSDs are from Other World Computing and come pre-formatted by Sound Devices.
Files can also be recorded, transferred, and accessed over Ethernet. The PIX 250i records Quicktime files in a variety of data rates, from Apple ProRes 4444 at 330 Mbps down to 36 Mbps proxy files. A built-in scaler will let you perform up, down, and cross conversion, pulldown removal, and aspect ratio conversions between HD and SD.
It supports eight channels of embedded audio over its HDMI input/output and 16 channels of embedded audio over its SDI input/output. For independent audio, two channels of analog audio in/out via balanced line-level XLR inputs and eight channels of AES/EBU digital audio is also available. For monitoring your footage, the PIX 250i features a 5" IPS display with 800x480 resolution.
Gigabit Ethernet network ports enable remote access to recorder files and the ability to transfer them quickly into your post-production environment. A built-in web server lets you control and setup the PIX 250i using any browser-capable device. You can also add external control devices using the RS-422 port or USB port. The PIX 250i is housed in a 1/2-rack 2U chassis and is powered by 10-27 VDC via a 4-pin XLR connector. A universal 66W power supply with detachable IEC power cord is included.
Please see the links below for more information on the items in this kit.
PIX 250i Video Recorder & Network Connected Video Deck
The Sound Devices PIX 250i Video Recorder & Network Connected Video Deck is a file-based video recorder featuring 3G-SDI and HDMI video inputs and outputs. It records edit-ready Apple ProRes or Avid DNxHD files and allows sequential or simultaneous recording to two 2.5" Sound Devices-approved SSDs. Files can also be recorded, transferred, and accessed over Ethernet. A built-in scaler will let you perform up, down, and cross conversion, pulldown removal, and aspect ratio conversions between HD and SD.
The PIX 250i records Quicktime files in a variety of data rates, from Apple ProRes 4444 at 330 Mbps down to 36 Mbps proxy files. It supports eight channels of embedded audio over its HDMI input/output and 16 channels of embedded audio over its SDI input/output. For independent audio, two channels of analog audio in/out via balanced line-level XLR inputs and eight channels of AES/EBU digital audio is also available. For monitoring your footage, the PIX 250i features a 5" IPS display with 800x480 resolution.
Gigabit Ethernet network ports enable remote access to recorder files and the ability to transfer them quickly into your post-production environment. A built-in web server lets you control and setup the PIX 250i using any browser-capable device. You can also add external control devices using the RS-422 port or USB port. The PIX 250i is housed in a 1/2-rack 2U chassis and is powered by 10-27 VDC via a 4-pin XLR connector.
File-Based Recording
The PIX 250i records Quicktime files in edit-ready Apple ProRes or Avid DNxHD video formats. You can record in a variety of formats, from Apple ProRes 4444 (330 Mbps) down to 36 Mbps proxy files. For color-critical applications, recording to ProRes 4444 provides uncompressed alpha-channel transparency for superb chroma keying and color grading performance.
Extensive Video I/O
The SDI input accepts 12-bit 3G-SDI (4:4:4 RGB or YCbCr), HD-SDI, and SD-SDI. The HDMI input accepts HD and SD video. Recording to ProRes 4444 via 3G-SDI 4:4:4 input provides recordings that are perceptually indistinguishable from the original source material.
Dual 2.5" Drives with Simultaneous or Sequential Recording
The PIX 250i records and plays back Quicktime video to removable 2.5" solid-state drives (SSDs). Drives require Sound Devices' PIX-CADDY 2 in order to be used. Drives and PIX-CADDY 2 are sold separately.
You can set up the drives for sequential recording or for simultaneous recording for immediate file redundancy and backup.
PIXNET Network Control
Control the PIX 250i from any browser-capable computer or mobile device via its Gigabit Ethernet port. When connected to a data network, transport controls and setup menu controls are available on PIXNET. You can group any number of units together and control them as a single system from either the hardware or the web-based control panel. The PIX 250i and be grouped with other PIX 250i, 260i, and 270i recorders. Over Ethernet, all drives are accessible as network-attached SMB shares.
Remote Control
Record, play, stop, fast-forward, rewind ,shuttle, jog, and locate control are all available over RS-422 for remote control operation. Remote control is further enhanced by GPIO ports and standard USB keyboards. USB keyboards also offer menu navigation and text entry.
Playback Control
The PIX 250i offers a wide range of playback features. Playback control includes off-speed, forward, reverse, jog, shuttle, freeze-frame, looping, and custom playlists. File markers can be set either while recording or playing back with the press of a button. Loop playback offers continuously looped playback of whole files or between file markers. Playlists help organize multiple files for consecutive or loop playback.
IPS Preview Monitor
With a 5" IPS LCD monitor, the PIX 250i can be used accurate evaluate your video signals during recording and playback. Picture overlays includes audio metering, timecode, file type, record status, and frame rate information. The display also doubles as a fast, simple menu interface. Timecode and record status display can be over-layed on the SDI and HDMI outputs.
Drag and Drop Transfer
Drives connected to a PIX 250i are accessible on Ethernet-based networks as read and write SMB shares, for easy file sharing. Files can be copied to or from any PIX 250i located on a network, from access across a room, or across the globe. Drives can be automatically switched to Ethernet when they are full.
Timecode Generator with Genlock
The internal, high-accuracy Ambient timecode generator makes the PIX 250i at home on complex, multi-camera and sync-sound productions. All common timecode frame rates and modes are supported. Embedded timecode over SDI and HDMI is also supported.
Scaler and Frame Rate Converter
The PIX 250i features a hardware scaler and frame rate converter. Up/down/cross-conversion and pulldown removal give you the ability to record files in a user-requested rate, even rates not supported by the camera. The PIX 250i also supports aspect ratio conversion.
PowerSafe Technology
THe PIX 250i is equipped with Sound Devices' PowerSafe technology. PowerSafe circuitry has a built-in 10-second power reserve. In the event of power loss, the unit continues to operate for up to 10 seconds, then stops any file operation and shuts down. This ensures that a complete power loss has no effect on the recording. PowerSafe also provides two-second "power-on-to-recording" so the recorder is ready for operation at moment's notice.
Additional Features
- False color, Peaking, Zebra
- Hardware-based 3:2 pull-down removal
- 1/2-Rack, 2U chassis
- Powered by 10-27 VDC via a 4-pin XLR connector
The Sound Devices XM-Caddy Pack - 2 SSDs with Caddies for PIX 220i/240i/250i/260i/270i & 970 recorders includes two 240GB SATA SSDs, and two PIX-CADDY 2 caddies, and mounting accessories. The SSDs are from Other World Computing, and are pre-formatted by Sound Devices. The included PIX-CADDY 2 units transport the SSDs, and provide Firewire 800 (400 compatible), USB 3.0 (USB 2, and 1.1 compatible), and eSATAp connectivity to a bare SSD.
Once you install an SSD into the caddy, you can easily insert and remove the SSDs from an available computer. The caddy allows you to connect the included SSDs to a computer, and the SSD shows up as an UDF volume for access to the files.
Tech Specs
PIX 250i Video Recorder & Network Connected Video Deck
| SDI Input | 1 x SD/HD/3G-SDI 4:4:4 or 4:2:2; 12, 10, or 8-bit 3G-SDI (levels A and B), HD-SDI, or SDI |
| SDI Output | 1 x SD/HD/3G-SDI 4:4:4 or 4:2:2; 12, 10, or 8-bit 3G-SDI (levels A), HD-SDI, or SDI |
| SDI Standards | SMPTE 12M-1, 12M-2, 125M, 259M, 272M, 291M, 292, 296M, 299, 352M, 424, 425 |
| HDMI Input | 1 x HDMI 1.4a 4:4:4 or 4:2:2, RGB or YCbCr, 10 or 8-bit, HDCP-enabled |
| HDMI Output | 1 x HDMI 1.3a 4:2:2 8-bit, RGB and YCbCr |
| Video Input Resolutions / Rates | 480i 59.94 (NTSC) 576i50 (PAL) 720p 23.976/24/25/29.97/30 (SDI only) 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.976/24/25/29.97/30 1080p 23.976/24/25/29.97/30 |
| Video Codecs and Files | Apple ProRess 4444 12-bit Apple ProRes 36, 100, 145, 220 MB/s, 8-bit and 10-bit Avid DNxHD 36, 100, 145, 220 MB/s, 8-bit and 10-bit Quicktime wrapper (.MOV) exFAT file system |
| Up/Down/Cross Conversion | 480i, 576i, 720p, 1080i, or 1080p to 480i, 576i, 720p, 1080i, 1080p, or anamorphic conversion |
| Frame Rate Conversion | 24, 25, 30, 50, 60 to 24, 25, 30, 50, 60, 23.976, 29.97, 59.94 to 23.976, 29.97, 59.94, automatic 3:2 pull-down removal in 23.976 and 24 frame modes, other pull-down cadences include 2:2:2:4, 2:3:3:2, 3:2:3:2:2, and 2:2 |
| Audio Recording | 16 channels record/playback, simultaneous with video Analog, HDMI / SDI, and AES3, selectable per channel |
| Display | 5" IPS LCD 800 x 480 resolution Flip-down for drive access |
| Analog Audio | 2 x Balanced XLR, line-level inputs 2 x Balanced XLR, line-level outputs 10 Hz to 20 kHz, +/- 0.5 dB re 1 kHz THD + Noise: 0.004% max (1 kHz, 22 Hz to 22 kHz) Input and output topology: Fully electronically balanced, line-level, RF, ESD, short, and overload protected; pin-2 hot, pin-3 cold Line output clipping level: +18 dBu Output attenuation: 0 to 20 dB, 1 dB increments Front-panel headphone, 1/4" with gain control |
| Digital Audio | AES/EBU: 8 channels in and out via DB-25, 110 ohm, 2 V p-p HDMI: 8 channels embedded HDMI input, 8 channels embedded HDMI output; Accepts 32, 44.1, 48, 96, and 192 kHz sample rates SDI: 16 Channels embedded SDI input and output Sampling rate / bit depth: 48 kHz, 24-bit Accepts 32, 44.1, 48, 96, and 192 kHz sample rates with SRC at input |
| File Storage | 2 x front-mounted, Sound Devices approved 2.5" drives (via PIX-CADDY 2 drive mount) Ethernet file transfer via SMB/CIFS volume Approved Media List: 2.5" Solid State Drives
2.5" Mechanical Drives Approved mechanical drives are recommended for use only in stationary applications. Excessive vibration or motion may cause data corruption.
|
| Timecode | Modes Supported: Freerun, Record run, External Frame Rates: 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND Accuracy: +/- 0.2 ppm, holds accurate time code for two hours after power is removed Inputs / Outputs: BNC(LTC input and output), SDI or HDMI |
| Sync Output | Analog bi-, tri-level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm) |
| Sync Input | Analog bi-, tri-level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm) |
| Control | 1 x RS422 Machine control (Sony 9-pin protocol) 1 x RJ-45, Ethernet Web-based control of settings and transport 1 x GPIO remote, Phoenix 10-pin Keyboard Front-panel USB host; keyboards without hubs acceptable |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Power | 4-pin XLR, pin-1 (-) pin-4 (+) 10-27 VDC, 30 W PowerSafe circuitry with 10 second power reserve with power removed |
| Dimensions (H x W x D) | 3.3 x 8.6 x 10.3" (8.4 x 21.8 x 26.2 cm) |
| Weight | 7.5 lb (3.4 kg) |
Contents
The PIX 250i KIT is a complete production accessory kit for the PIX-250i rack-mount video recorder. The PIX-RACK mounting accessory is not included.
The PIX 250i Complete Kit includes:
- (1) PIX 250i Rack Mount Video Recorder
- (1) XM CADDY PACK, includes (2) PIX SSD-6 240GB 2.5 inch SATA Drives pre-mounted to (2) PIX-Caddy2 drive mounting accessories.
- XL-WP4 power supply included.
