PIX 240i Kit
PIX 240i Kit

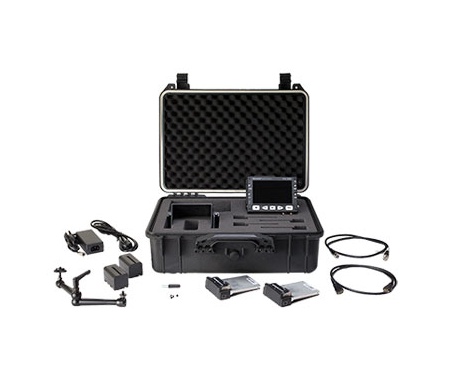

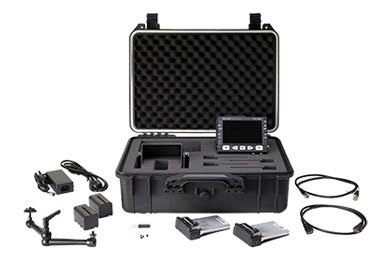

(1) PIX-HC1A Case, (1) PIX 240i Recorder, 2) PIX-CADDY2 mounts, (2) PIX-SSD6 240GB 2.5" SSD Drives, (1) PIX-HOOD, (2) XL-B2 7.2V Li-Ion L-Series Battery,(1) PIX-ARM, (1) XL-WPH3 power supply, (1) HDMI Cable (3 ft), (1) SDI Cable (3 ft), (1) 1/4-20 Simple Stand. Case Dimensions: 17" x 11.5" x 6" inches.
Main Benefits
- 4:4:4 12-Bit to ProRes 4444 by 3G-SDI
- 4:4:4 or 4:2:2 in 10 or 8-Bit by HDMI
- SDI / HDMI 4:2:2 to ProRes or DNxHD
- 5" IPS Glossy 800 x 480 Display
- Records to CF Cards or 2.5" SSDs
- Batteries, SSDs, Caddies, Etc. Included
- Frame Rate Converter and De-Interlacer
- Mic and Line Level XLR Inputs
- False Color, Zebra, Peaking, 1:1 Mapping
- Audio Metering / Timecode Generator
Description
The Sound Devices PIX 240i 5" Portable Video Recorder & Monitor Kit includes the PIX 240i external video recorder and monitor in a robust weatherproof case full with accessories for power, storage, mounting, and monitoring. You get two batteries and an AC adapter, two Sound Devices-approved SSDs and two caddies for securely inserting and locking the SSDs in the recorder, an articulating arm for camera-top mounting and a small stand for tabletop use, a sun shield, and a 3 ft SDI cable and 3 ft HDMI cable. The two caddies also offload the SSD contents via FireWire or USB 3.0.
The PIX 240i features gold-plated 3G-SDI and HDMI video inputs and outputs. By SDI, you can record 1080p 4:4:4 color information in 12-bit color depth to Apple's ProRes 4444 codec, or 1080p 4:2:2 10 or 8-bit to ProRes or Avid's DNxHD, and by HDMI you can record 4:4:4 or 4:2:2 in 10 or 8-bit. For ProRes 4444, the transfer rate is 330Mbps and for the other codecs 220Mbps. All recordings get stored as QuickTime .MOV files to either CF cards or 2.5" SSDs. A built-in scaler will let you perform up, down and cross conversion, pulldown removal, and HD-to-SD / HD-to-SD aspect ratio conversion.
The SDI input and output both support 8-channel, 48k embedded audio, and the HDMI input supports two channels and the output eight channels. For independent audio, the PIX 240i also has full-sized XLR audio inputs for microphone or line level signals. Microphone-level inputs offer 48V phantom power, input limiters, and sweepable high-pass filters. Inputs can also be set to accept up to four channels of AES3 digital audio.
The difference between the PIX 240i and the preceding PIX 240 is that the 240i is equipped with an IPS display which affords an ultra-wide viewing angle. The display is 5" diagonally, glossy, and has an 800 x 480 resolution. Monitoring functions include 12-step False Color, two-level Zebra, 1:1 Pixel Mapping, and Peaking. You can also overlay audio metering, timecode, file type, record status, and frame rate information.
The small stand above-mentioned as one of the accessories is about 2" long and attaches into a 1/4" thread between the two battery mounts on the rear of the monitor to allow you to stand the monitor on a flat surface, like standing a picture frame on a table. The two included SSDs are 240GB PIX-SSD5 Sound Devices drives with a 550 MB/s read speed and 520 MB/s write speed. The supplied sun shield attaches firmly to the four corners of the front of the recorder. And the weatherproof case is made of strong and corrosion-resistant high-density polymer, features a compartmentalized foam interior, and measures a handy 18 x 14 x 7" (approx.).
- Key Features
-
- 4:4:4, 12-bit recording
- 5" IPS, glossy, 800 x 480 pixel LCD display
- Apple ProRes or Avid DNxHD codec at multiple data rates
- QuickTime file type
- 12-bit input and output video resolution
- Monitoring functions including False Color, Zebra Stripes, 1:1 Pixel Mapping, Peaking Filter
- Built-in hardware based frame rate converter and de-interlacer
- Up/Down/Cross Conversion of 480i, 525i, 720p, 1080i, 1080p
- Aspect ratio conversion
- 3:2 Pulldown Removal
- High-accuracy built-in timecode generator, with genlock and word clock output
- Ultra low-noise (-128 dBu) mic preamps with phantom, limiters, line input
- Ability to defeat audio output delay while maintaining audio/ video sync on recorded file
- CompactFlash or 2.5" SSD file storage with media spanning, UDF format for Mac OS and Windows
- Large, illuminated, tactile buttons for fast and simple menu control
- Simultaneous HDMI and HD-SDI output
- 336-core, 32-bit massively parallel processor with 1.2 TeraOps for efficient video encoding
- 10-18 VDC and dual L-series battery powering
- Metalized, molded carbon fiber chassis
- What Makes Up the Kit
-
- PIX 240i
- Weatherproof Polymer case
- Two PIX-CADDY 2 2.5" SSD drive caddies
- Two PIX-SSD5 2.5" 240GB SSDs
- Two lithium-ion batteries
- Articulating arm
- Sun shield
- 12VDC power supply
- 1/4" Simple Stand for stand mounting
- 3 ft SDI cable
- 3 ft HDMI cable
- IPS Field Monitor
- The PIX 240i features a glossy, 5" display with IPS technology providing accurate color representation and ultra-wide off-axis visibility. Monitoring features such as 12-step false color and two-level zebra assist in framing, exposure evaluation, and focus evaluation. Details overlayed on the picture include audio metering, timecode, file type, record status, and frame rate information. The display also doubles as a simple to operate menu interface. Timecode and record state display can be sent to the SDI and HDMI outputs.
- File-Based Recording
- The PIX 240i records QuickTime files in either Apple ProRes or Avid DNxHD video formats. Files recorded in these intra-frame codecs are ready-for-editing directly from the recorder. For color-critical applications, recording to Apple ProRes 4444 provides uncompressed alpha-channel transparency for superb chroma keying and grading performance.
- Extensive Video I/O
- The SDI input accepts 12-bit 3G SDI (4:4:4 RGB or YCbCr), HD-SDI, and SD-SDI. The HDMI input accepts HD and SD video. Recording to ProRes 4444 via 3G-SDI 4:4:4 input provides recordings that are perceptually indistinguishable from the original source material.
- Frame Rate Converter and Scaler
- A hardware scaler and frame rate converter performs up, down, and cross-conversion and pulldown removal, providing the ability to record files in a customer-requested rate, even one not supported by the camera being used. The PIX 240i also supports HD to SD and SD to HD aspect ratio conversion.
- Timecode Generator
- An on-board high-accuracy Ambient timecode generator allows the PIX 240i to be used in single camera shoots and complex multi-camera sync-sound productions. All common timecode frame rates and modes are supported. Embedded timecode over SDI and HDMI is also supported.
- Audio Performance
- The PIX 240i features full-sized XLR audio inputs for microphone or line level signals. Microphone-level inputs offer 48V phantom power, input limiters, and sweepable high-pass filters. Inputs can also be set to accept up to four channels of AES3 digital audio. Inputs offer selectable audio delay. Since video cameras often introduce several frames of delay because of internal processing, audio signals connected directly to the PIX 240i can be delayed up to 500 ms to accommodate that delay and provide perfect synchronization between video and audio signals.
- Playback
- A wide range of playback features consists of off-speed, forward, backward, freeze-frame, looping, and custom playlists. File markers can be set while in record or playback mode with the press of a button and loop playback modes allow continuous looping playback of entire files or between files markers. Playlists allow quickly organizing multiple files for consecutive or loop playback.
- File Storage and Transfer
- Recording and playback is done in QuickTime files to either removable CompactFlash cards or removable 2.5" SSDs approved by Sound Devices. These approved media are formatted by PIX recorders as UDF volumes that are directly mountable, readable, and writable in Mac OS and Windows. The 2.5" SSDs mount to PIX-CADDY 2 drive caddies for a secure, hot-swappable, locking data connection.
- Mechanical Construction
- A durable chassis made of lightweight, molded, metalized-carbon-fiber is reliable for the rigors of field production. Four 1/4"-20 threads on two different axes offer countless mounting options. All major connections, including SDI and XLR, use full-sized, locking connectors.
- Powering
- The PIX 240i powers by removable Sony-compatible, L-series lithium-ion camcorder batteries or by an external 10-18 VDC adapter. Battery mounts are connected in parallel so batteries can be hot-swapped during operation, with no loss of power. When external power is removed while a battery is mounted, the recorder seamlessly transfers to battery power. Battery source and voltage is shown on the on-screen display.
- Controls
- The side panel rotary knob makes menu navigation fast and simple. Simple controls and a straight-forward plain-language menu makes setups easy for both new and experienced users. Four large, illuminated, tactile record, stop, play, rewind, and fast-forward controls are easy to access with gloved hands. Screen and button brightness are adjustable.
Tech Specs
| SDI Input & Output | 4:4:4 or 4:2:2; 12, 10, or 8-bit Input: 3G-SDI (levels A and B), HD-SDI, or SDI Output: 3G-SDI (level A), HD-SDI, or SDI SMPTE 12M-1, 12M-2, 125M, 259M, 272M, 291M, 292, 296M, 299, 352M, 372, 424, 425 |
| HDMI Input & Output | Input: v1.4a, 4:4:4 or 4:2:2, RGB or YCbCr, 10 or 8-bit, HDCP-enabled Output: v1.3, 4:2:2 8-bit, RGB and YCbCr |
| Video Input Resolutions / Rates | 1080p23.976/24/25/29.97/30 1080i50/59.94/60 1080PsF23.976/24/25/29.97/30 720p23.976/24/25/29.97/30 (SDI only) 720p50/59.94/60 576i50 (PAL) 480i59.94 (NTSC) |
| Video Codecs and Files | Apple ProRes 4444, 330 Mb/s, 12-bit Apple ProRes 36, 100, 145, 220 Mb/s, 8 and 10-bit Avid DNxHD 36, 100, 145, 220 Mb/s, 8 and 10-bit QuickTime wrapper (.MOV), UDF file system |
| Up/Down/Cross Conversion | 480i, 576i, 720p, 1080i, 1080p to any 480i, 576i, 720p, 1080i, 1080p Hardware based, 10-bit |
| Frame Rate Conversion | 24, 25, 30, 50, 60 to 24, 25, 30, 50,60, 23.976, 29.97, 59.94 to 23.976, 29.97, 59.94, automatic 3:2 pull-down removal in 23.976 and 24 frame modes, other pull-down cadences include 2:2:2:4, 2:3:3:2, 3:2:3:2:2, and 2:2 Hardware based, 10-bit |
| LCD Display | 5" (12.7 cm), 800 x 480 pixel LCD display, glossy IPS (In-Plane Switching) enables ultra wide viewing angle and color accuracy |
| Audio Recording | 8 channels record/playback, simultaneous with video Analog, HDMI or SDI, AES/EBU, selectable per channel |
| Analog Audio | 2 balanced, mic- or line-level inputs on XLR (48 V phantom switchable) 2 balanced, line-level outputs on 5-pin XLR Frequency Response: 10 Hz-20 kHz, +/- 0.5 dB re 1 kHz THD + Noise: 0.004% max (1 kHz, 22 Hz-22 kHz) Input and Output Topology: fully electronically balanced, line-level, RF, ESD, short, and overload protected; pin-2 hot, pin-3 cold Line Output Clipping Level: +18dBu Output Attenuation: 0-20 dB, 1 dB increments Headphone, 1/8" with gain control |
| Digital Audio | Sampling Rate / Bit Depth: 48 kHz, 24-bit AES/EBU: 4 channels in via XLR, 110 ohm, 2 V p-p Accepts 32k, 44.1k, 48k, 96k, 192k sample rates with SRC at input HDMI: 2 channels embedded HDMI input, 8 channels embedded HDMI output Accepts 32k, 44.1k, 48k, 96k, 192k sample rates SDI: 8 channels embedded SDI input, 8 channels embedded SDI output, 48k sample rate |
| File Storage | The following can be used as storage media: Sound Devices approved 2.5-inch drive: "PIX-CADDY 2" mounted drive eSATAp-connected drive Sound Devices approved CompactFlash card (* eSATAp supplies 5 V @ 2A) |
| Timecode | Modes supported: Freerun, Record run, External Frame rates: 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND Accuracy: +/- 0.2ppm, holds accurate time code for 2 hours after power is removed Inputs / Outputs: BNC (LTC input and output), SDI or HDMI (Sony protocol), LEMO 5-pin |
| Sync Output | Analog bi-, tri-level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm) |
| Sync Input | Analog bi-, tri-level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm) |
| Control | Record triggering via SMPTE timecode LANC or GPIO on 2.5 mm jack |
| Keyboard | USB host; keyboards without hubs supported |
| Power | 4-pin Hirose, 10-18 VDC, pin-1 (-) pin-4 (+) |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Dimensions | 5.5 x 4 x 2.4" (14 x 10.2 x 6.1 cm) |
| Weight | 2 lb (0.91 kg) |
