Modular Windshield WS 6 Kit
Product Code: 086006
The Modular Windshield 6 Kit is suitable for shotgun microphones from from 351mm up to 400mm in length and 19-34mm diameter with a 3-pin XLR connector.
Main Benefits:
- Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
- The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology
Description
The Modular Windshield Kit is the professionals' choice when maximum isolation from wind and handling noise is required.
This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.

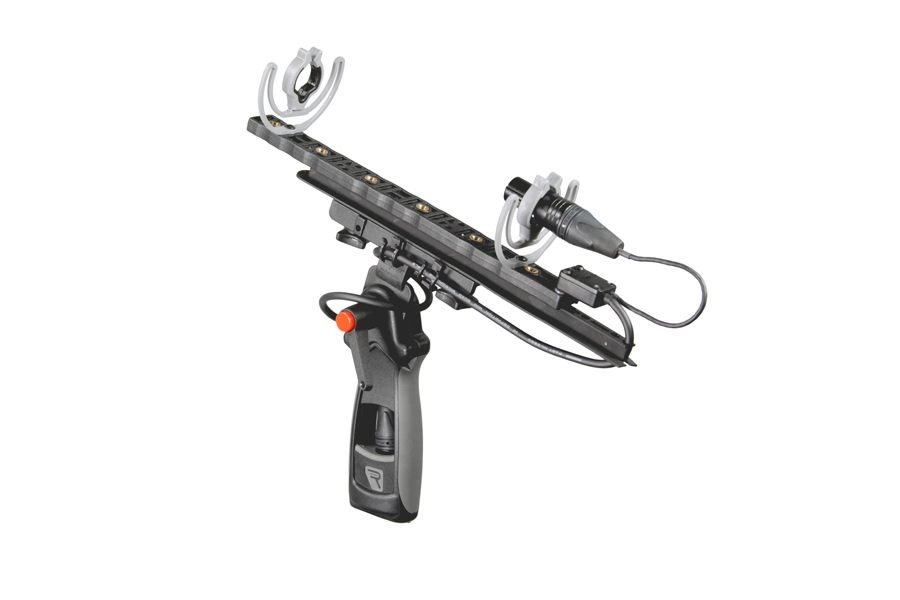

Modular Suspension
Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.

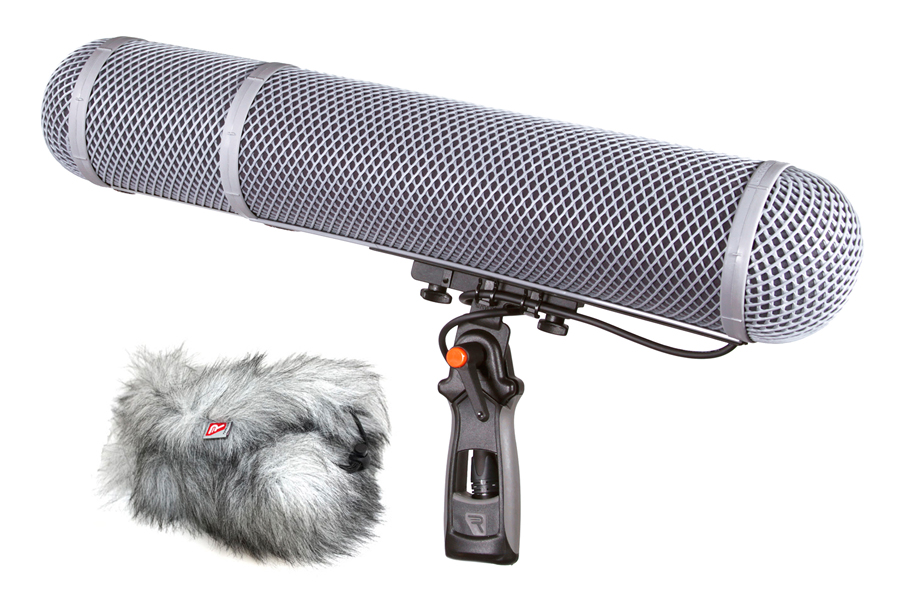

Windshield
The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

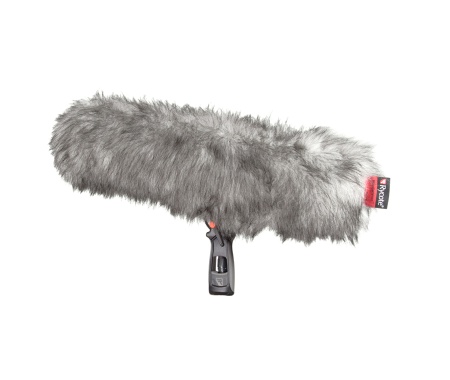

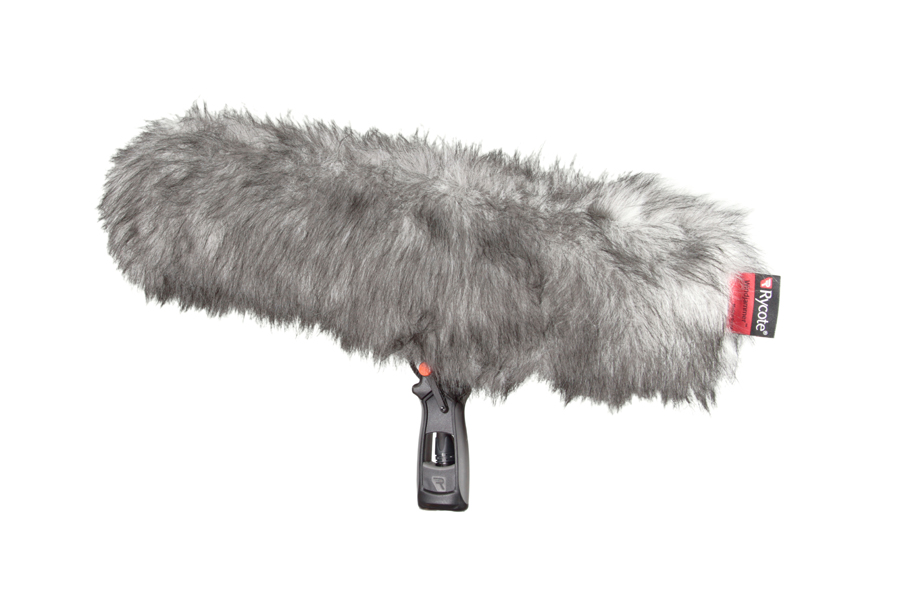

Windjammer
The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.
Tech Specs
The Modular Windshield 6 Kit is suitable for shotgun microphones from from 351mm up to 400mm in length and 19-34mm diameter with a 3-Pin XLR connector.
Windshield Body Length: 450mm (WS4 + Extension 120mm)
Total Windshield Length: 560mm (includes the End Caps)
Height of Windshield 100mm
Net Weight:
Gross Weight:
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB
Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.
Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.
For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.
Compatibility
| AKG CK 8 451 | A short rifle capsule for the C451 or C452 series preamplifiers. The pattern was narrow and highly directional but less extreme than... |
| AKG CK 8 460 | A short rifle capsule for the C451 or C452 series preamplifiers. The pattern was narrow and highly directional but less extreme than... |
| Audio-Technica AT 4071a (BP4071) | For more information on this specific microphone, go to Audio-Technicas website at http://www.audio-technica.com/world_map/. |
| Audio-Technica AT 835b (AT8035) | For more information on this specific microphone, go to Audio-Technicas website at http://www.audio-technica.com/world_map/. |
| Azden SG(M)-2X (Cardiod) | A shotgun microphone with an extendable barrel. It has an integral hotshoe/mic stand shock-mount and uses a AAA battery for power. In... |
| Neumann KMR 82 | The KMR 82 is a shotgun microphone with a high directivity that remains within the acceptance angle independent of frequency. The adv... |
| Sennheiser MKH 70 | An RF condenser microphone using a symmetrical capsule. It has a transformerless, fully floating balanced output and switchable pre-a... |
Contents
 |

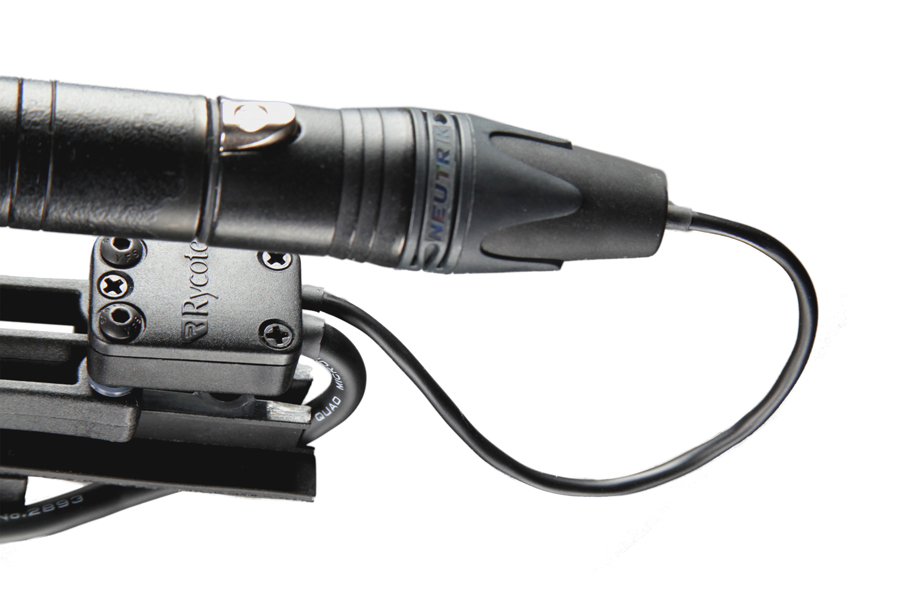

1 x Connbox CB1 (XLR-3F) Product Code: 016901 Suitable for mono microphones with 3-pin XLR. |
 |
1 x XLR Holder MK II Product Code: 048493 The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system |
 |
1 x Boom Poles Adaptor Product Code: 048402 |
 |
1 x Pistol Grip Handle with Lever Product Code: 048401 |
 |
1 x Windshield WS 4 Product Code: 010604 Suitable for mic lengths 246mm up to 280mm in length |
 |

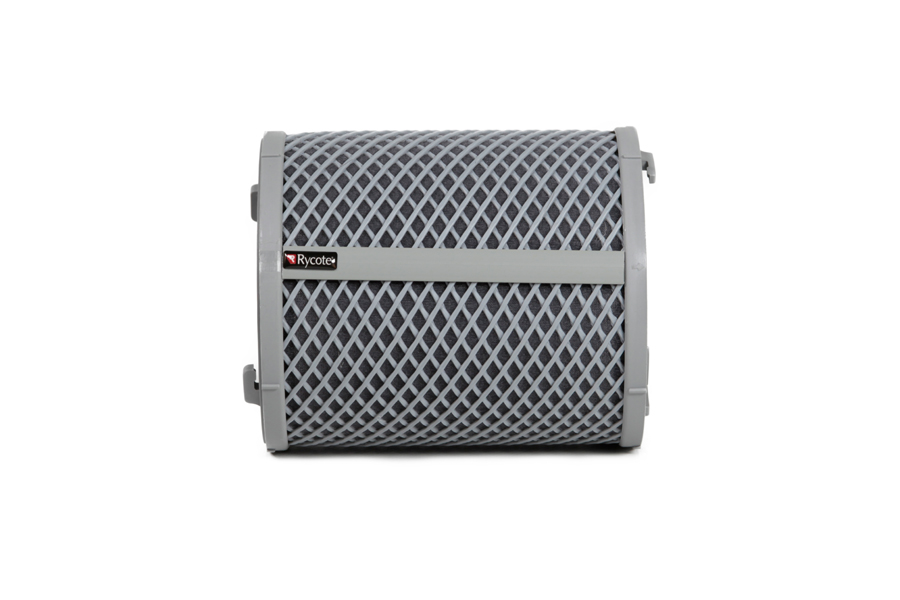

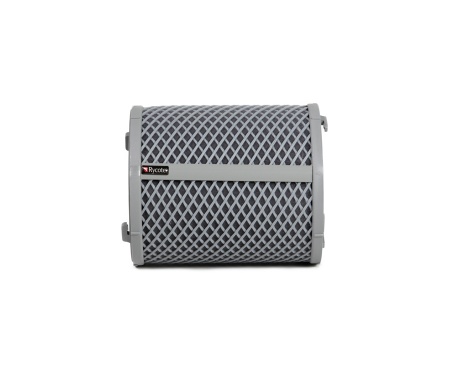

1 x Extension 2 Product Code: 010702 Windshield Extension to make WS 6 |
 |
1 x Windjammer WJ 6 Product Code: 021506 Suitable for use with the Windshield 4 and Ext 2 |
 |
1 x Suspension Large (XLR-3F) 68 Duo Heavy Product Code: 040149 Suitable for Shotgun Mics in a WS 6 |
2 x Single Lyre 82 (19/25) (as spare)
Brush
Hex head key
Videos
Resources
Modular Windshield Kit.pdf
Modular Windshield Kit
Modular Windshield Kit_08_14.pdf
Modular Windshield Kit (update 08_14)
WS6Kit_086006_040149.pdf
Spares for the Modular Windshield 6 Kit (086006)
