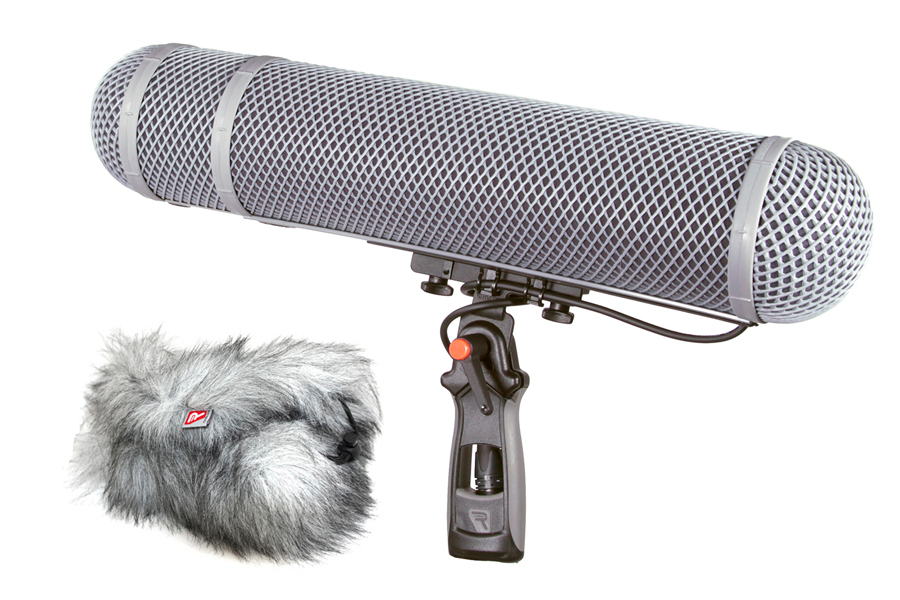

Modular Windshield WS 5 Kit
Product Code: 086005
The Modular Windshield 5 Kit is suitable for Shotgun microphones from 281mm up to 350mm in length and 19-34mm diameter with a 3-Pin XLR connector.
Main Benefits:
- Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
- The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology
Description
The Modular Windshield Kit is the professionals' choice when maximum isolation from wind and handling noise is required.
This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.
Modular Suspension
Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.
Windshield
The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

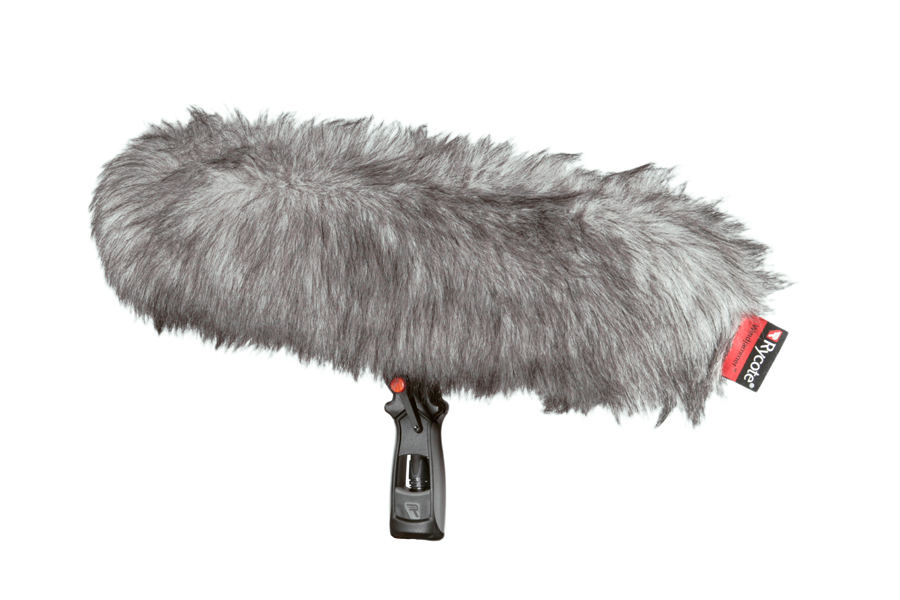

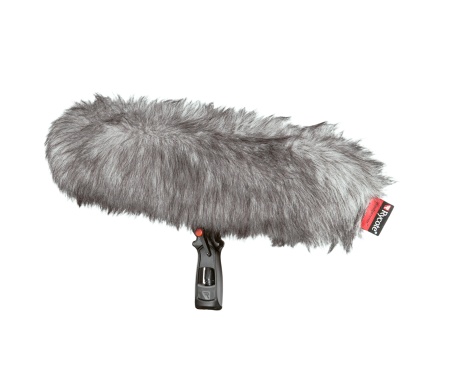

Windjammer
The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.
Tech Specs
Windshield Body Length: 400mm (WS4 + Extension 70mm)
Total Windshield Length: 510mm (includes the End Caps)
Height of Windshield 100mm
Net Weight:
Gross Weight:
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB
Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.
Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.
For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.
Compatibility
| AKG CK 68 ULS C460B Red | A CMS/ULS series preamplifier (now superseded by the ULS C480B) for use with several CK series capsules. A thread adapter allowed the... |
| AKG CK 98 SE300 B | Short, extremely light shotgun capsule for on-location film and video recordings. |
| BeyerDynamic MC 736 | For more information on this specific microphone, go to the BeyerDynamic website at http://europe.beyerdynamic.com. |
| BeyerDynamic MCE 86 N (C) S | The MCE 86 II replaces the earlier MCE 86/87 as a short rifle microphone for camera and general use. The construction and integral fi... |
| Sennheiser ME 66 K6 | Short shotgun microphone head designed for use with the K6 and K6P powering modules. It is especially suitable for reporting, film an... |
| Sennheiser ME 80 K3U | A short-shotgun capsule for use with various K-series power modules - measurements given with the K3U. [The K3U (XLR) or K3N (Tuchel)... |
| Shure VP89M | The VP89 is a professional shotgun condenser microphone for use in critical broadcast and media production applications. Designed wit... |
| Sony ECM 672 | A supercardioid short-rifle electret condenser microphone. It has a two position low-cut filter and battery status indication. It is ... |
Contents
 |

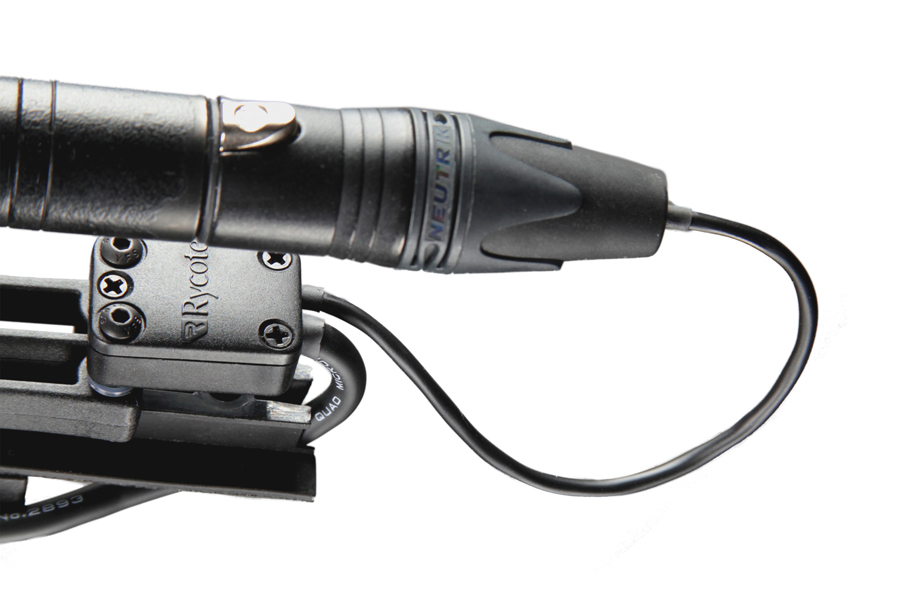

1 x Connbox CB1 (XLR-3F) Product Code: 016901 Suitable for mono microphones with 3-pin XLR. |
 |
1 x XLR Holder MK II Product Code: 048493 The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system |
 |
1 x Boom Poles Adaptor Product Code: 048402 |
 |
1 x Pistol Grip Handle with Lever Product Code: 048401 |
 |
1 x Windshield WS 4 Product Code: 010604 Suitable for mic lengths 246mm up to 280mm in length |
 |

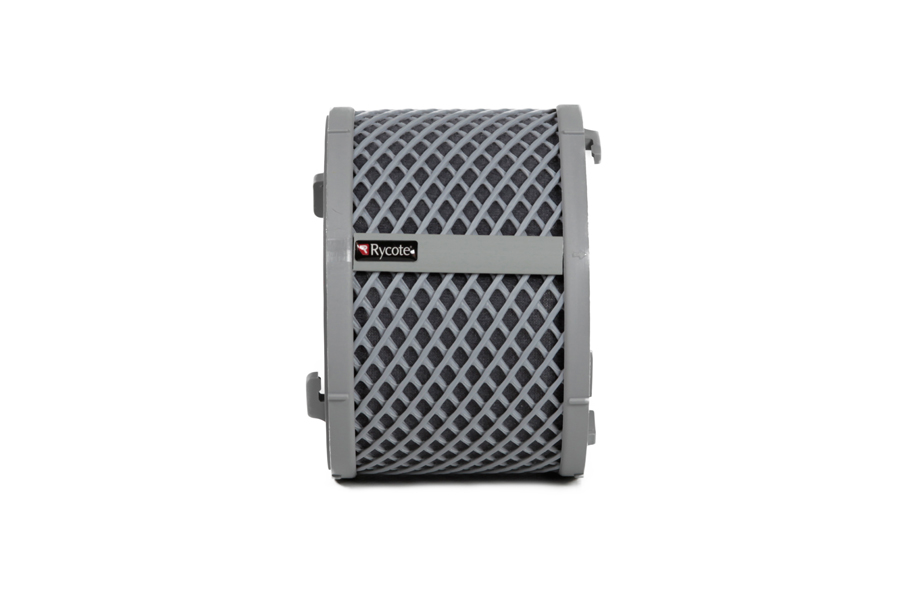

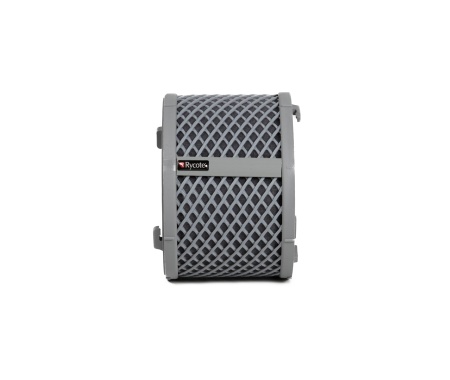

1 x Extension 1 Product Code: 010701 Windshield Extension to make WS 5 |
 |
|
 |

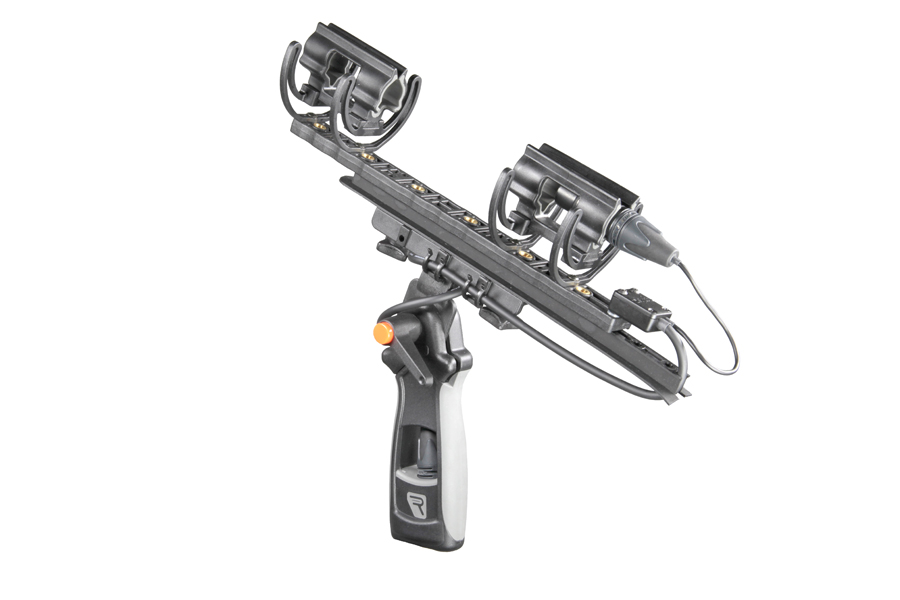

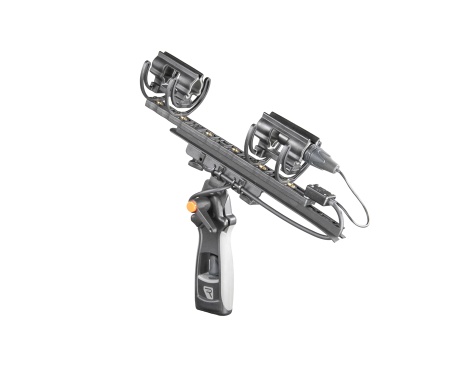

1 x Suspension Medium (XLR-3F) 68 Duo Product Code: 040146 Suitable for shotgun microphones in a WS 4 or WS 295 |
2x Single Lyre 72 (19/25) (as spare)
Brush
Hex head key
