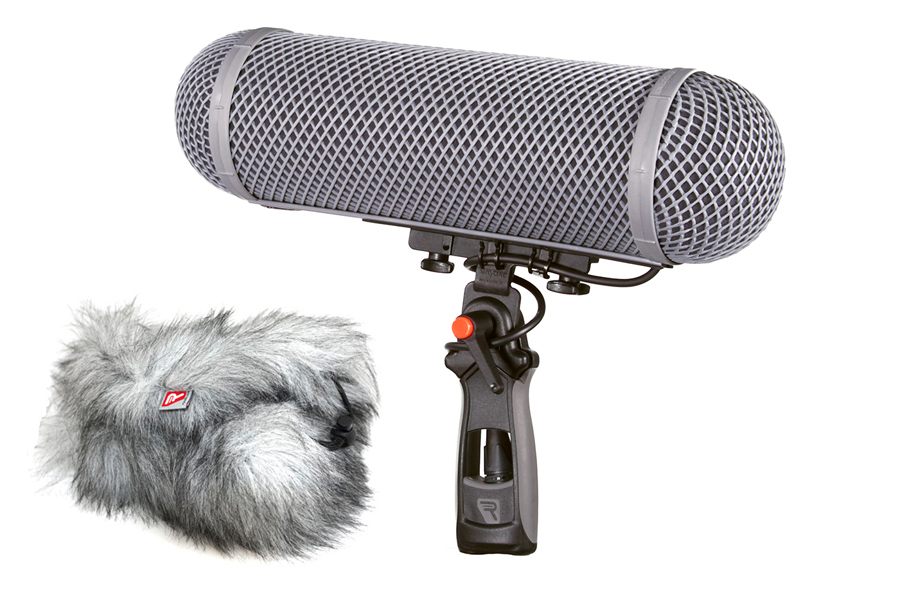

Modular Windshield WS 3 Kit
Product Code: 086002
Modular Windshield 3 Kit is suitable for microphones from 161mm up to 210mm in length and 19-25mm diameter with a 3 Pin XLR connector
Main Benefits:
- Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
- The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology
Description
Tech Specs
Windshield Body Length: 260 mm
Total Windshield Length: 370 mm (includes the End Caps)
Height of Windshield: 100mm
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB

Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.
Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.
For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.
Compatibility
| AKG CK 61 C460 B | A CMS/ULS series preamplifier (now superseded by the ULS C480B) for use with several CK series capsules. A thread adapter allowed the... |
| AKG CK 63 C460 B | A CMS/ULS series preamplifier (now superseded by the ULS C480B) for use with several CK series capsules. A thread adapter allowed the... |
| Audio-Technica AT 875 (AT875R) | For more information on this specific microphone, go to Audio-Technicas website at http://www.audio-technica.com/world_map/. |
| BeyerDynamic M 69 | Rugged microphone for lead vocals and instrumentation. Excellent off-axis rejection. |
| BeyerDynamic MC 718 | For more information on this specific microphone, go to the BeyerDynamic website at http://europe.beyerdynamic.com. |
| BeyerDynamic MC 728 | For more information on this specific microphone, go to the BeyerDynamic website at http://europe.beyerdynamic.com. |
| DPA 4011 | After its release in 1989 the 4011 immediately won a TEC Award for technical excellence. It is a condenser microphone with totally fl... |
| DPA 4017B | The DPA d:dicate 4017B is a supercardioid shotgun mic intened for broadcast, location, production and studio applications. With a hig... |
| DPA 4041-S | The 4041-S is an omnidirectional microphone that uses the 24mm (1') MMC4041 modular microphone cartridge with the totally transparent... |
| DPA 4041-SP | The Type 4041-SP is designed to work in a standard 48V phantom power environment. Since the capsule is the same as for the high volta... |
| RODE NTG-1 | A lightweight shotgun condenser microphone for general film and TV use. The output is electronically balanced and uses low-noise surf... |
| Sanken CMS 2 | The Sanken CMS-2 is the world's smallest and lightest MS stereo microphone for TV and radio broadcasting, motion picture making and s... |
| Sanken CMS 7 | The Sanken CMS-7s is a portable MS stereo condenser microphone for indoor and outdoor TV and radio broadcasting and motion picture ma... |
| Sanken CS-1e | The CS-1 is a short rifle microphone intended for film and TV but likely to find uses elsewhere too. The microphone is exceptionally ... |
| Schoeps CMC Series (With Cut 1) | The capsules of condenser microphones (the only type which SCHOEPS manufactures) can't be connected directly to microphone cables or ... |
| Sennheiser ME 40 | The ME40 is a supercardioid capsule for use with various powering adapters. [The K3U (XLR) or K3N (Tuchel) powering module had balanc... |
| Sennheiser ME 62 K6 | The ME 62 is designed for use with the K6 and K6P powering modules. It can be used for reporting, discussions and interviews, and is ... |
| Sennheiser ME 64 K6 | Cardioid microphone head designed for use with the K6 and K6P powering modules. It has a very wide range of applications, including r... |
| Sennheiser MKH 8060 + MZF + MZX | For more information on this specific microphone, visit Sennheisers website at http://en-uk.sennheiser.com |
| Shure SM 81 | The SM81 is a high-quality, unidirectional condenser microphone designed for studio recording, broadcasting, and sound reinforcement.... |
| Shure VP82 | Compact and lightweight, with wide aperture and excellent off-axis rejection, the VP82 is the affordable and reliable choice for came... |
| Sony ECM 673 | The Sony ECM-673is a short shotgun, electret condenser-type microphone which delivers excellent sound performance in field and studio... |
| Sony ECM MS5 | For more information on this specific product, go to Sony's website at http://www.sony.com |
Contents

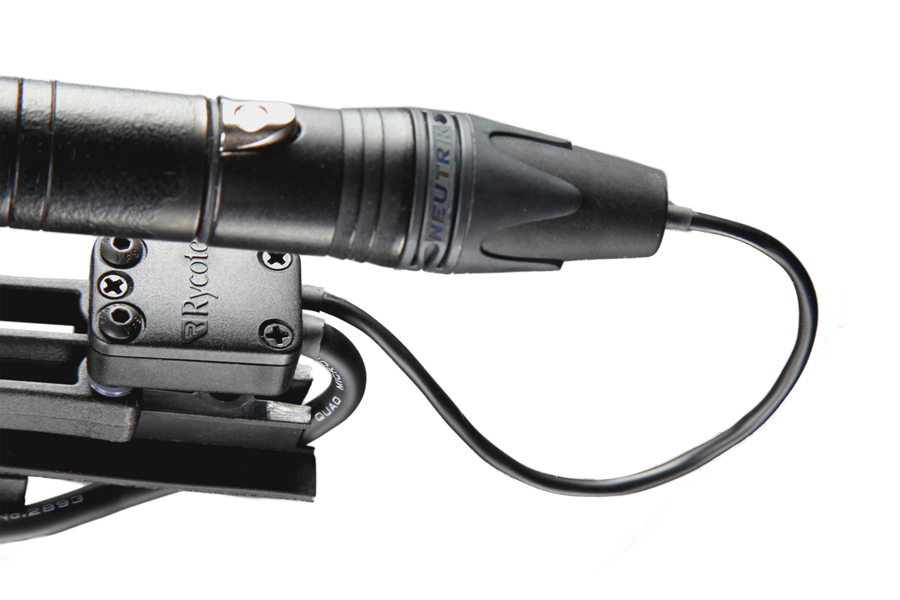

| 1 x Connbox CB1 (XLR-3F) Product Code: 016901 Suitable for mono microphones with 3-pin XLR. |
|
| 1 x XLR Holder MK II Product Code: 048493 The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system |
|
| 1 x Boom Poles Adaptor Product Code: 048402 |
|
| 1 x Pistol Grip Handle with Lever Product Code: 048401 |
|
|
|
|
| 1 x Windshield WS 3 Product Code: 010603 Suitable for mic lengths 161-210mm |
|
| 1 x Suspension Medium (XLR-3F) 72 Product Code: 040144 Suitable for microphones in a WS3 |
2x Single Lyre 62 (19/25) (as spare)
Brush
Hex head key
Videos
Resources
Modular Windshield Kit.pdf
Modular Windshield Kit
Modular Windshield Kit_08_14.pdf
Modular Windshield Kit (update 08_14)
WS3Kit_086002_040144.pdf
Spares for the Modular Windshield 3 Kit (086002)
