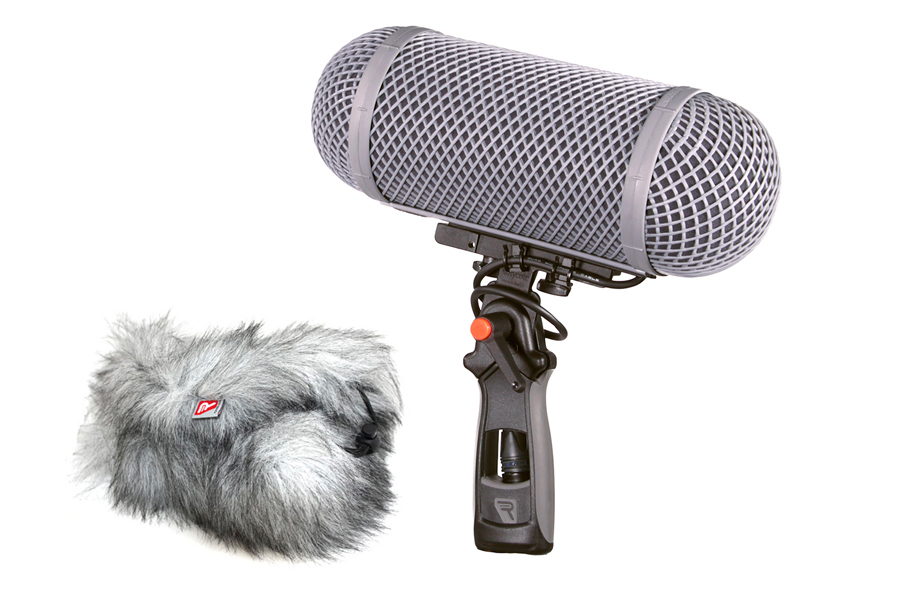

Modular Windshield WS 1 Kit
Product Code: 086004
The Modular Windshield WS 1 Kit is suitable for small diaphragm condenser microphones up to 120mm in length with a 19-25mm diameter and a 3-pin XLR connector.
Main Benefits:
- Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
- The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology
Description
Tech Specs
Windshield Body Length: 170 mm
Total Windshield Length: 280 mm (includes the End Caps)
Height of Windshield: 100mm
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB
Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.
Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.
For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.
Total Windshield Length: 280 mm (includes the End Caps)
Height of Windshield: 100mm
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB
Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.
Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.
For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.
Compatibility
| Audix SCX1C | A professional studio condenser microphone, the SCX1 is available with three different polar patterns: Cardioid (SCX1C), Hypercardioi... |
| DPA DPA 2011c | DPA Microphones is known for its high-performance, uncolored transducers for studio recording, broadcast and live performance. The 20... |
| Neumann KM 180 | Description. |
| Neumann KM 180 Series | For more information on this specific microphone, go to Neumanns website at http://neumannusa.com. |
| Neumann KM 184 | The Series 180 consists of three compact microphones (KM 183, 184, and 185) with patterns that satisfy the demands of all common stud... |
| Neumann KM 185 | The Series 180 consists of three compact microphones (KM 183, 184, and 185) with patterns that satisfy the demands of all common stud... |
| Neumann KM100F | For more information on this specific microphone, go to Neumanns website at http://neumannusa.com. |
Contents
 |

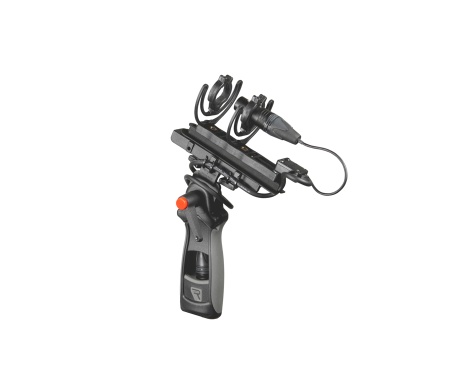

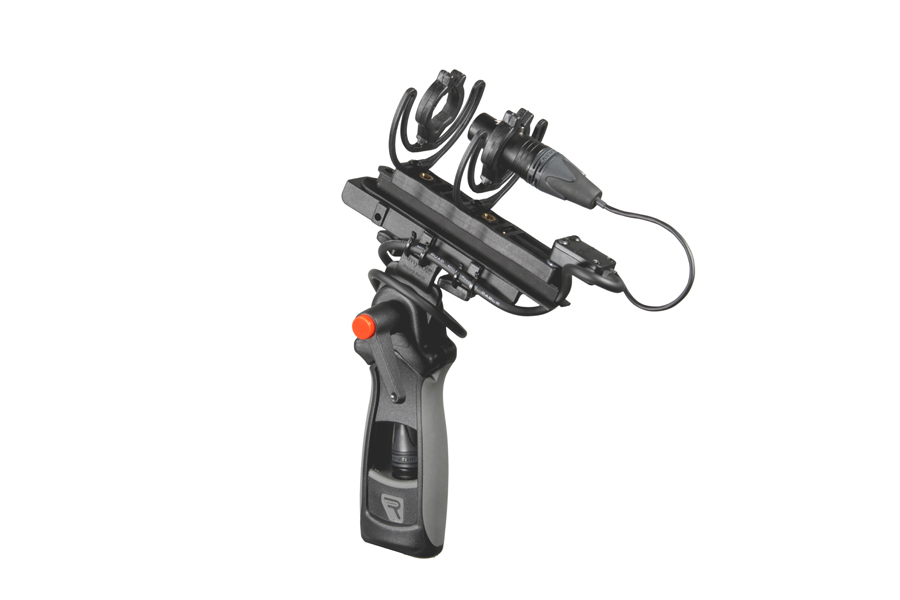

1 x Suspension Small (XLR-3F) Product Code: 040140 Suitable for small diaphragm condensers in a WS1 |
 |

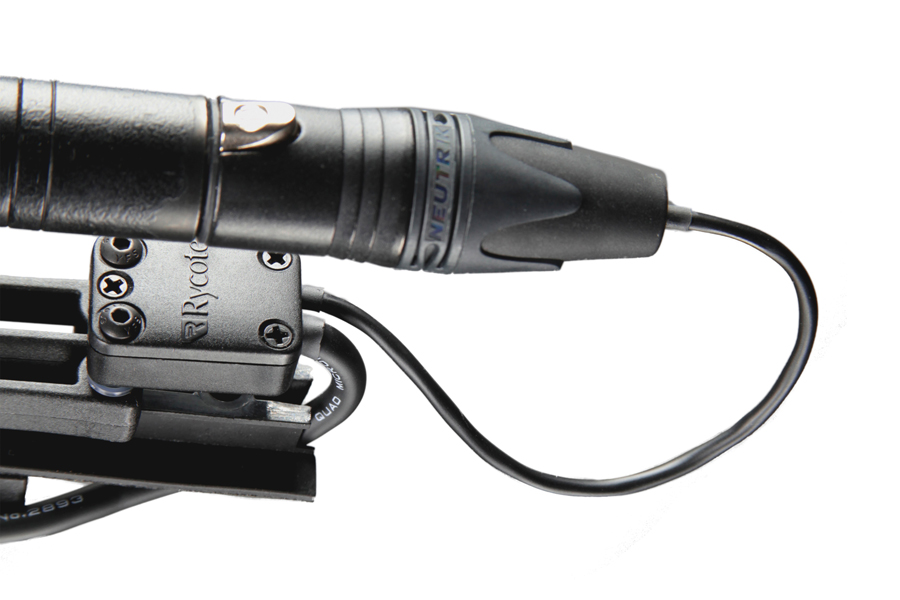

1 x Connbox CB1 (XLR-3F) Product Code: 016901 Suitable for mono microphones with 3-pin XLR. |
 |

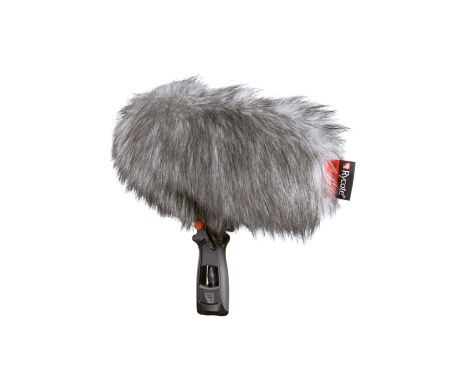

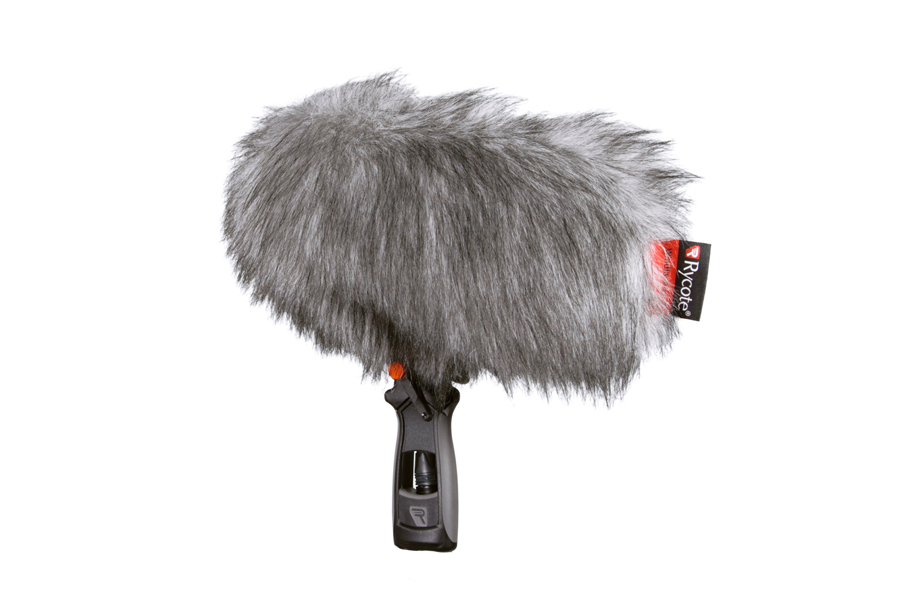

1 x Windjammer WJ 1 Product Code: 021501 Suitable for use with the Windshield 1 |
 |

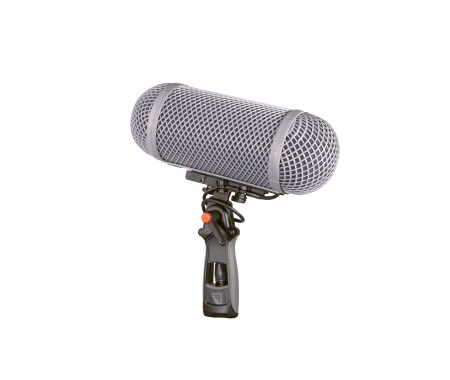

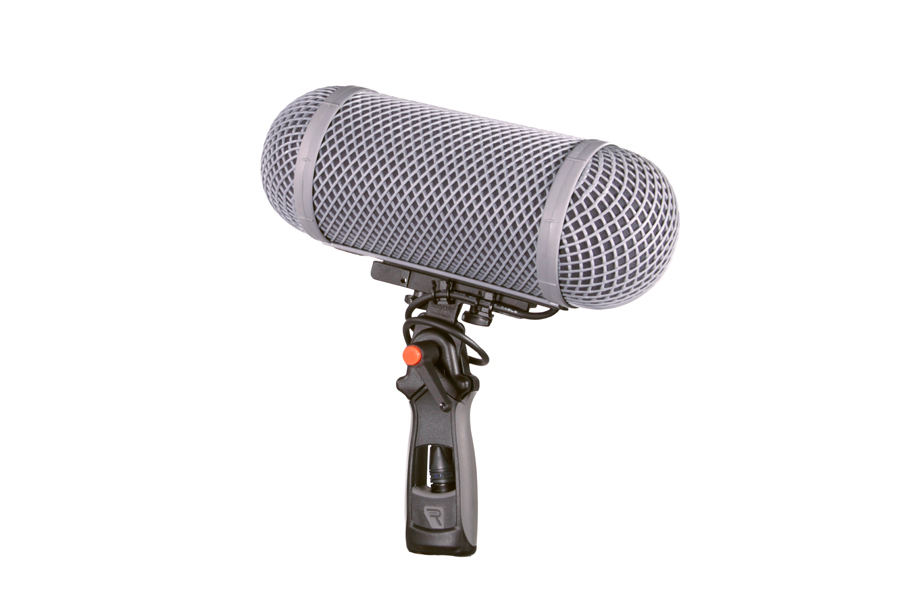

1 x Windshield WS 1 |
 |
1 x XLR Holder MK II
Product Code: 048493 The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system |
 |
1 x Boom Poles Adaptor
Product Code: 048402 |
 |
1 x Pistol Grip Handle with Lever
Product Code: 048401 |
2x Single Lyre 62 (19/25)
Brush
Hex head key
Videos
Resources
Modular Windshield Kit.pdf
Modular Windshield Kit
Modular Windshield Kit_08_14.pdf
Modular Windshield Kit (update 08_14)
WS1Kit_086004_040140.pdf
Spares for the Modular Windshield 1 Kit (086004)
