CS-M1 Short Shotgun Microphone

Name: CS-M1 Short Shotgun Microphone
Brand: Sanken
SKU: CS-M1
Price: 346583 HUF
Availability: InStock

Previous Previous

Next Next

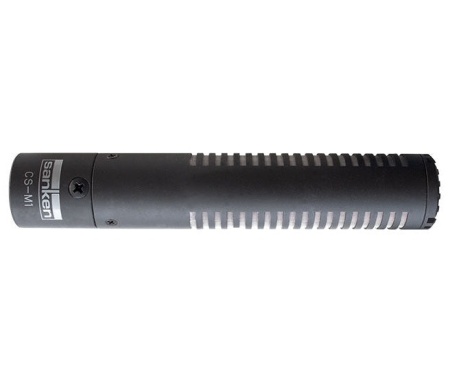

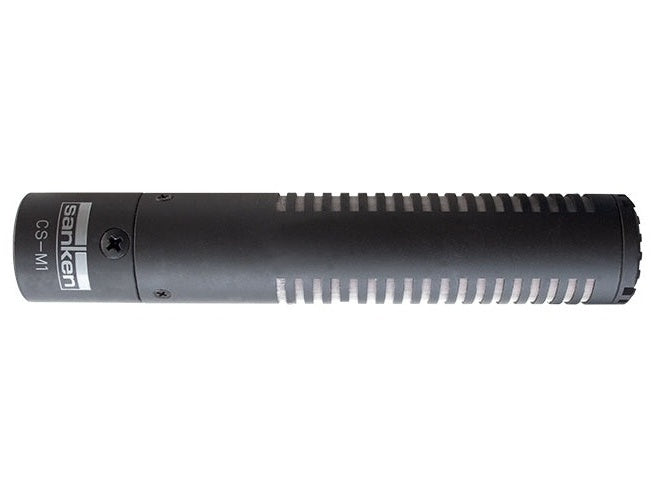

SANKEN CS-M1 Short Shotgun Microphone

Feature

・Ultra-short body length (103mm) and light weight (55g).
・Preserving sharp directivity and clear sound.
・Perfect solution, especially for cameras with short lens.
・Ideal for Boompole operation, recording in drama studio etc.

Specifications

Directivity	Super Cardioid / Lobar
Transducer	Back electret condenser
Frequency range	70Hz～20kHz
Sensitivity (nominal at 1kHz)	79mV/Pa (-22dB,0dB=1V/Pa)
Equivalent noise level (A-weighted)	16dB-A
Max SPL (1% THD)	137dB SPL
Output impedance at 1KHz	140ohms
Powering	+48V±4V　U.P.F
Current consumption	4mA
Weight	55g
Dimensions	103mm x 19mm(diameter)
Surface finish	matte black
Connector	XLR-3M

Included Accessories

Included Accessories01	Urethane wind screen
Included Accessories02	Measurement data
Included Accessories03	Instruction manual
Included Accessories04	Warranty card
Included Accessories05	Vinyl case

Graphics

Optional Accessories

Trade name	HG-1
Name	Handgrip part only
Use	CUW-180, WMS-5, CS-1e, CS-M1

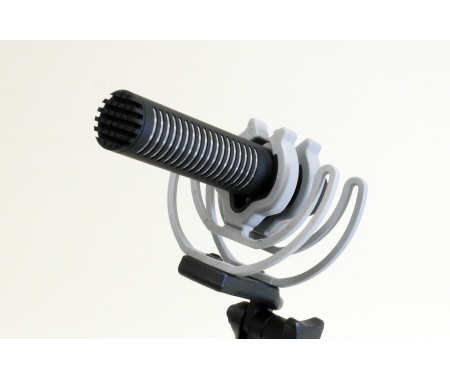

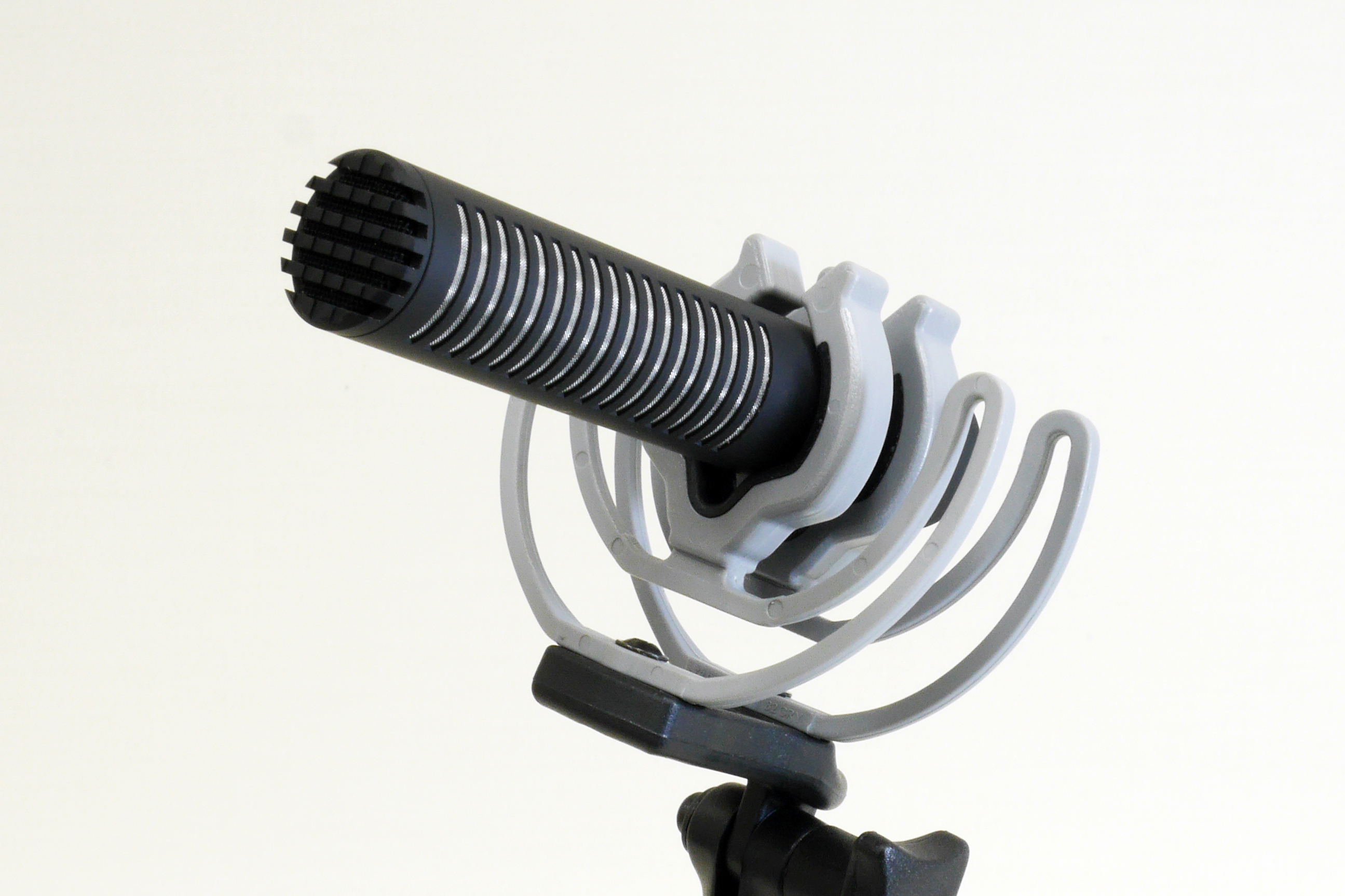

Trade name	GS-M1
Name	Suspension
Use	for CS-M1

Trade name	WSJ-M1
Name	Windjammer for WS-M1
Use	for CS-M1 CMS-50

Trade name	WS-M1
Name	Cage windshield
Use	for CS-M1 , CMS-50

Trade name	WJ-M1
Name	Windjammer
Use	for CS-M1 , CMS-50

Trade name	WM-M1
Name	Urethane windscreen
Use	for CS-M1

346 583 Ft (272 900 Ft excl VAT)

–
