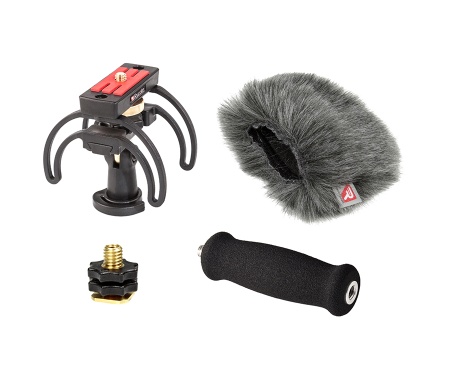

Audio Kit - Zoom H4N

Combined Windshield and Suspension solution, the kit contains everything needed to protect a handheld digital recorder from outdoor wind noise, and also to isolate it from unwanted vibrations, whether from handling or stand-borne noise. It is aimed at journalists, film-makers, or anyone using a handheld digital recorder to make professional-quality audio recordings outdoors. It can be used for location soundtracks, outside broadcast, or for simple audio podcasts or outdoor radio reporting.

Featuring the 1/4" to 3/8" Swivel Adaptor, the suspension fits any portable recorder with a 1/4" female thread. The suspension can then be mounted on a 3/8" male thread, mic stand or boom pole, or be attached to a camera hot shoe. The 180° swivel allows for easy orientation of the recorder so it can point in the exact direction of the speaker.

Mini Windjammer®:
Height: ~80mm
Width: ~70mm
Length:~25mm
Weight:
Internal Foam Lining: Yes
Fur Colour: Grey
Fur Length: 25mm
Maximum Wind-noise Attenuation: 30 dB

Portable Recorder Suspension:
Dimensions
Width:
70mm (2.75")
Length:
54mm (2.25")
Height:
95mm (3.75")
Weight:
106 grams (3.7 oz)

Suitable for any portable recorders with female 1/4" thread
Additional specifications

Male thread: 1/4" Whitworth
Female thread (brass): 3/8" UNC
Shoe Foot (brass) with male 3/8" thread & female 1/4" UNC

Operating Temperature range: -20°C to 35°C (-4°F to 95°F)
