SD-UW

Underwater housing for Sound Devices 7-series recorder

The Ambient Recording SD-UW Underwater Housing for Sound Recorder is made out of hard, anodized, seawater-resistant aluminum and thereafter coated with PTFE, coated which gives it high durability and stability.

Main Benefits:

2 handles for perfect balance slightly negative buoyancy

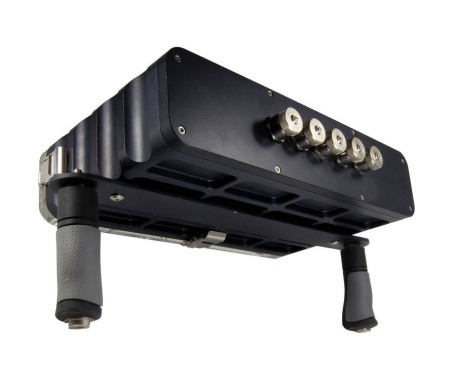

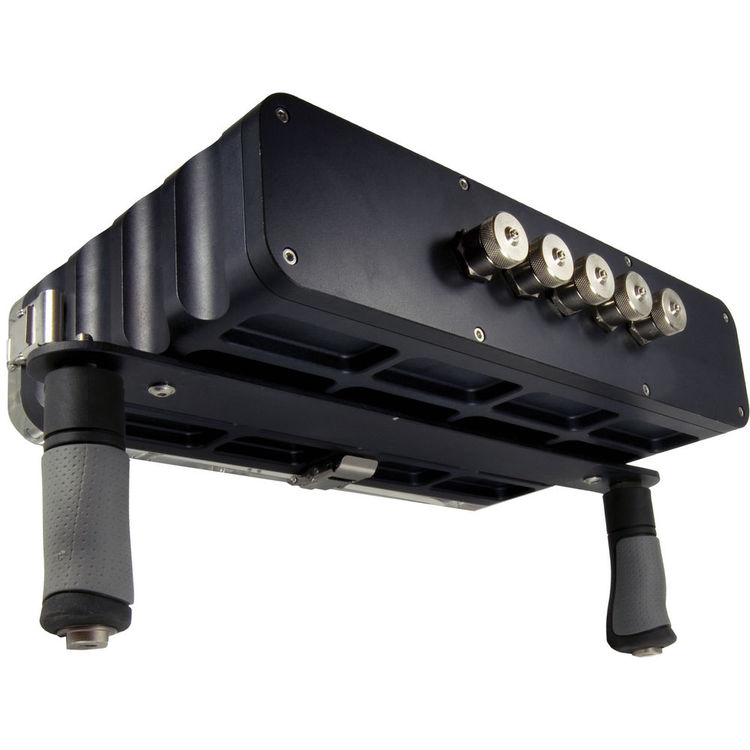

5 M8 threads for hydrophones, lights, or cameras
Plexiglass cover for perfect meter and display overview

Overview

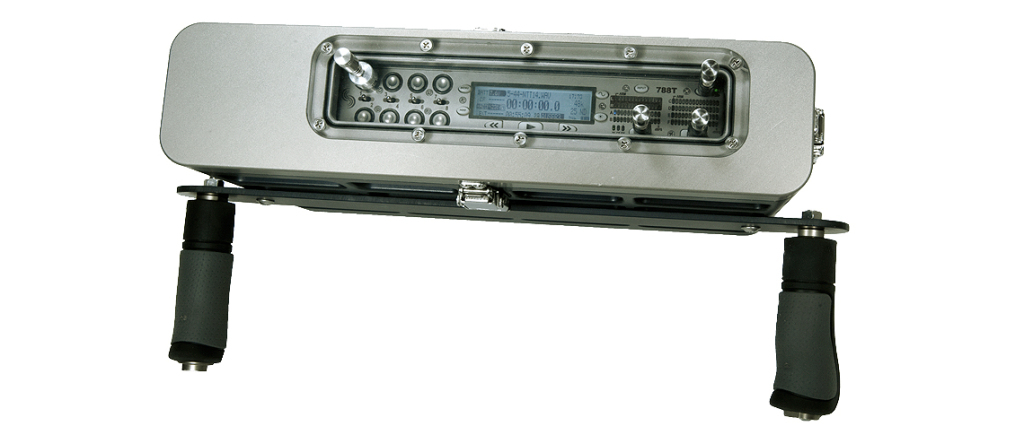

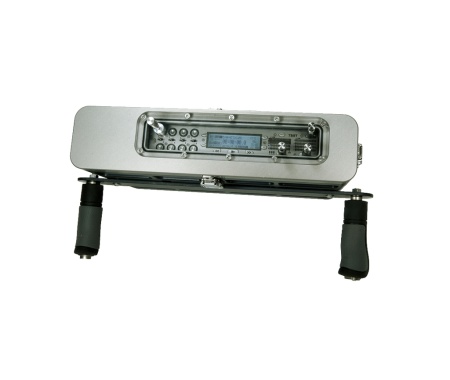

With a cover made out of 1.57” (4 cm) thick Plexiglass, it offers a perfect sight on all meters and displays of the recorder. All 7 series Sound Devices are attached within seconds thanks to a flexible mount. Up to 8 waterproof, underwater connectors allow you to record with most sophisticated surround techniques.

Two handles offer optimal usability underwater even with the RS2 and RS5 surround rigs, also thanks to slightly negative buoyancy, which can be easily adjusted depending on whatever you like to attach to your housing. With its static design, this housing is waterproof up to a depth of 262.46’ (80 m) or even 328.08’ (100 m) with electronic remote.

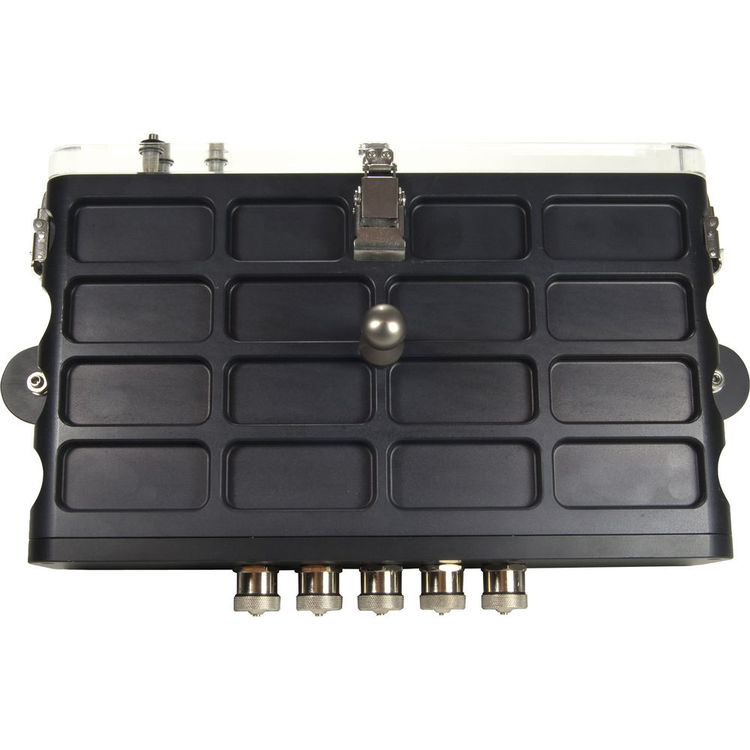

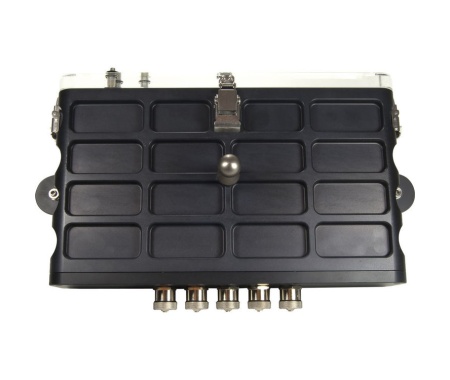

This underwater housing was made to carry a complete sound system and can be easily enlarged to a video, sound, and light system, thanks to 5 threads on the housing and handles.

Hard-anodized and PTFE coated for roughest production conditions

The housing is made out of hard-anodized, seawater-resistant aluminum, afterwhich it is PTFE coated to provide the highest possible durability and stability.

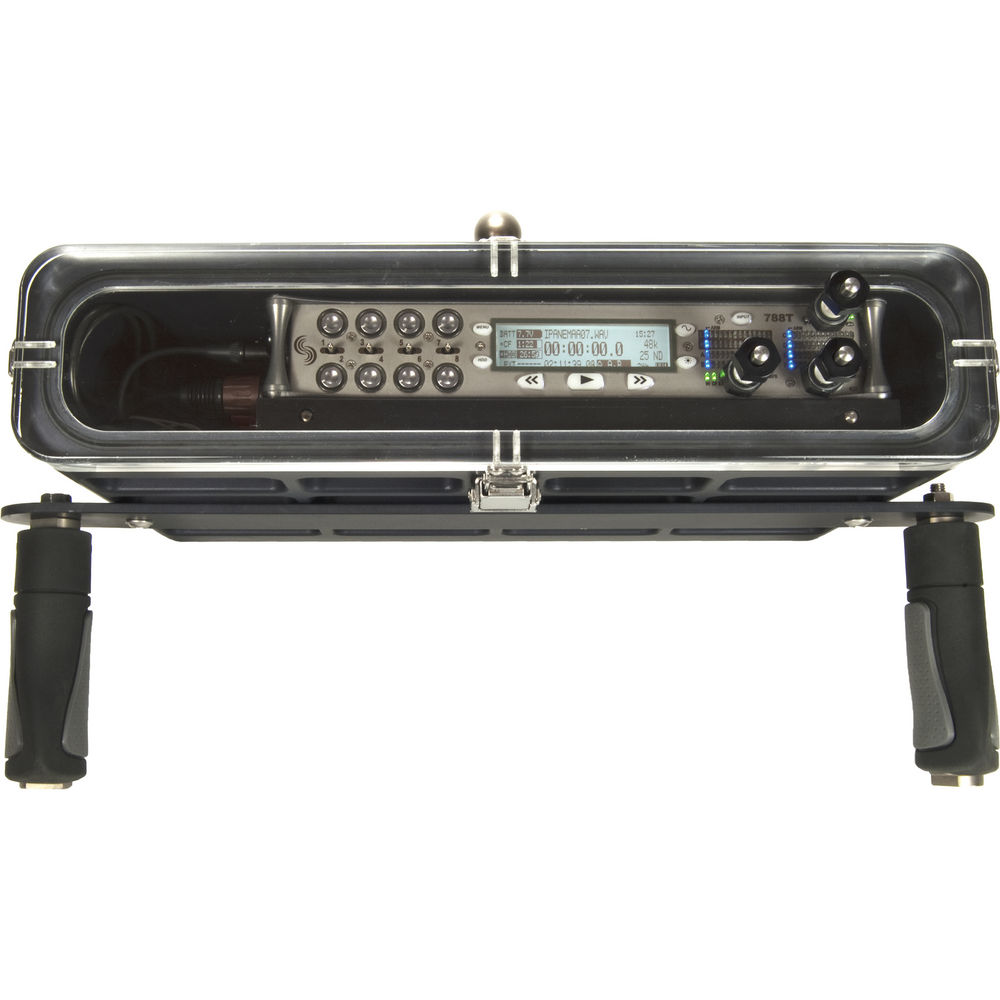

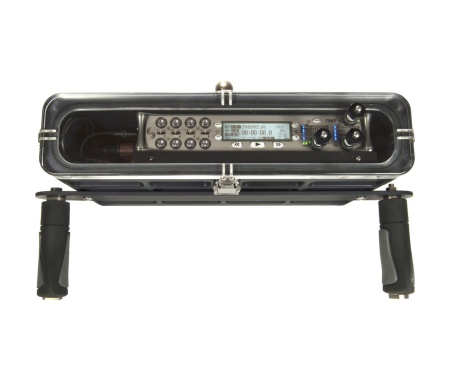

The machined cover, manufactured with the same seawater-resistant coatings, offers a perfect visibility of all recorder’s meters and displays thanks to a rugged polycarbonate window.

Clear visibility of meters, gain and displays thanks to a polycarbonate window

Thanks to a mechanical remote, the diver has full access to gain, record, and stop, as well as power functions.

Tech Specs

Videos

Downloads

Call for pricing

–

The add to cart button will appear once you select the values above

brand: Ambient
sku: SD-UW

Twitter

Recently viewed

BC100

Boom case f. QX 5100 / QP 480 The Ambient Audio BC-100 Boom Case is an unpadded hard plastic case made to carry an Ambient Audio QX5100, QX580 or QP4

A80118

Display the description to the Readmore tag.: The Ambient Audio BC-100 Boom Case is an unpadded hard plastic case made to carry an Ambient Audio QX5100, QX580 or QP480 boom.

39 624 Ft (31 200 Ft excl VAT)

–

BC50

Boom case f. QX 550 / QP 450 The Ambient Audio BC-50 Boom Case is an unpadded hard plastic case made to carry an Ambient Audio QX550 or QP450 boom.

A80124

Display the description to the Readmore tag.: The Ambient Audio BC-50 Boom Case is an unpadded hard plastic case made to carry an Ambient Audio QX550 or QP450 boom.

29 718 Ft (23 400 Ft excl VAT)

–

EP-UWP

External Power Supply for Sony Transmitters and Receivers (UWP) No more changing batteries. The power cables of the Ambient EP series provide externa

A80150

Display the description to the Readmore tag.: External Power Supply for Sony Transmitters and Receivers (UWP) No more changing batteries. The power cables of the Ambient EP series provide external power to your Sony transmitters and receivers in your sound bag and cart. The EP-UWP is compatible with selected Sony UWP-D wireless series devices (URX-P03D and UTX-B03 only)

101 092 Ft (79 600 Ft excl VAT)

–

Material	Hard, anodized, seawater-resistant aluminum, PTFE coated
Thickness	Cover: 1.57" (4 cm)
Waterproofing	Electronic Remote: Up to 328.08' (100 m) Mechanical Remote: Up to 262.46' (80 m)
Audio Input	5 (standard)
