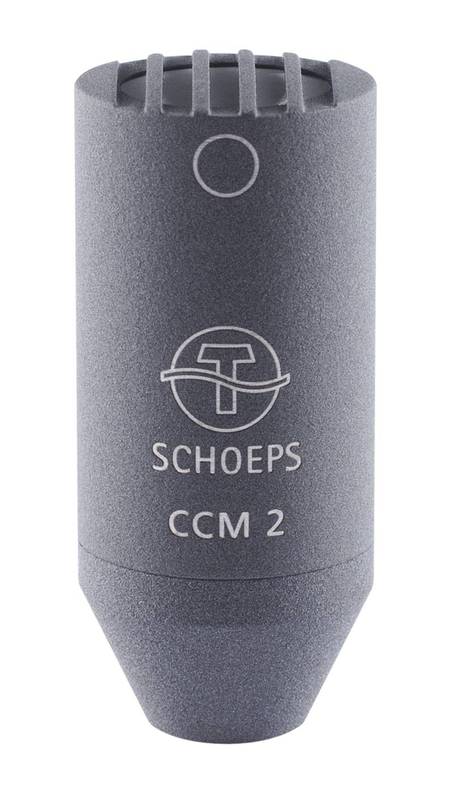

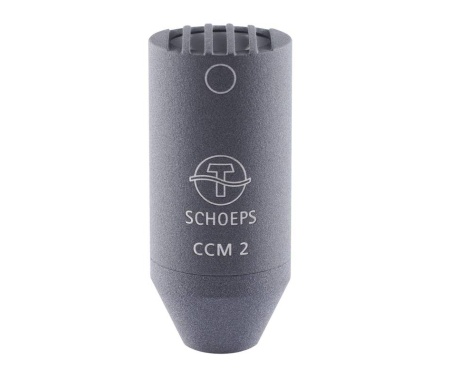

Schoeps CCM 2 L Compact Microphone, omni, incl. SGC, K5LU, wooden box
Schoeps CCM 2 L Compact Microphone, omni, incl. SGC, K5LU, wooden box
As can be seen from the frequency response curve, this microphone type has flat frequency response for frontal sound incidence. This yields a very natural quality when picking up sound that is predominantly direct, i.e. close to the source or in a ”dry” acoustic. The sonic impression never becomes overly brilliant or ”sharp.”
- omnidirectional
- linear frequency response
- corrected for the direct sound field
- for use close to the sound source (frontal sound incidence)
- preferred applications: close pickup of singers and instruments
Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs for a small extra charge.
Application
Please note that there is some directivity at high frequencies due to the physics of sound wavelengths. Thus even with an omnidirectional microphone, it still matters which way the capsule is “aimed.”
Specifications
| All CCMs | |
|---|---|
| Current consumption with 12 V | 8 mA |
| Current consumption with 48 V | 4 mA |
| Impedance | 90 Ω |
| Minimum recommended load impedance | 600 Ω |
| Low-cut frequency | 20 Hz |
| Length (L version) | without connector: 46 – 58 mm |
| Length (U version) | 46 – 58 mm |
| Diameter | 20 mm |
| Weight (U-version) | 33 g |
| Weight (L-version) | 43 g |
| Surface finish | matte gray |
For further specifications see those of the corresponding capsule:
| MK 2 | |
|---|---|
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity | 16 mV/Pa |
| Equivalent noise level (A-weighted) | 11 dB-A |
| Equivalent noise level (CCIR) | 23 dB |
| Signal-to-noise ratio (A-weighted) | 83 dB-A |
| Maximum sound pressure level at 0.5% THD | 130 dB-SPL |
Graphics
Bottom: frequency response MK 2 + CMC 6 xt
