PTM

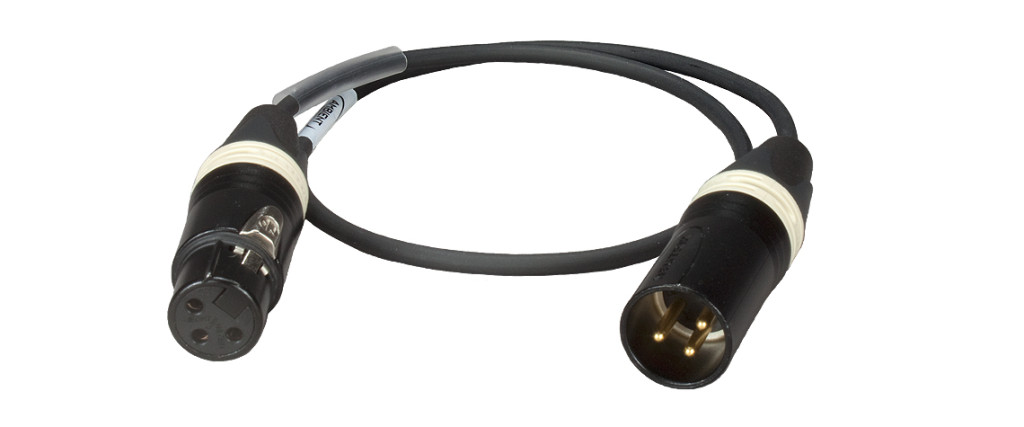

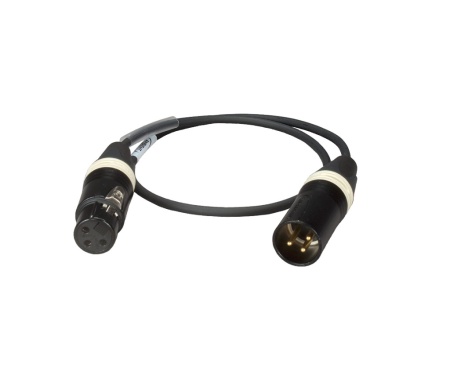

PhanTomizer 48 V Ph to T-Power Converter Cable
The Ambient Phantomizer 48V Phantom to 12V T-Power Converter is an in-line cable that converts 48V phantom power to 12V T-power (also known as "A-B power") for use with low-power mics. This passive converter patches directly to your XLR cable and needs no addtional current to operate.
Main Benefits:
- Convert 48V Phantom Power to 12V T-Power
- Portable
- Easy to use
Overview
- Convert 48V Phantom Power to 12V T-Power
- The Phantomizer is a passive converter consisting of a voltage divider and a capacitor to block the direct current from pin 3. If your mixer or preamp is sending 48V to your mic by default but you need 12V A-B Power, the Phantomizer can fix that.
- Portable and Easy to Use
- The Phantomizer does its work with no bulky extras to lug around. Add the in-line converter to your XLR cable and you're done.
Tech Specs
| Input Connectors | 3-pin XLR Female |
| Output Connectors | 3-pin XLR Male |
| Adapter | Converts 48V Phantom Power to 12V TA Level |
| Battery | No |
| Power | 12V T-Power (A-B Power) Output Operates on 48V Phantom Power |
| Dimensions | 20.0" (50.8 cm) Long |
| Weight | 2.6 oz (75.0 g) |
