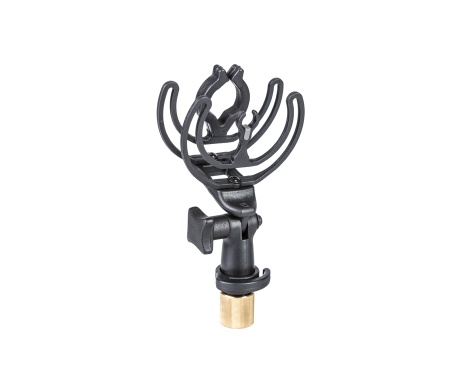

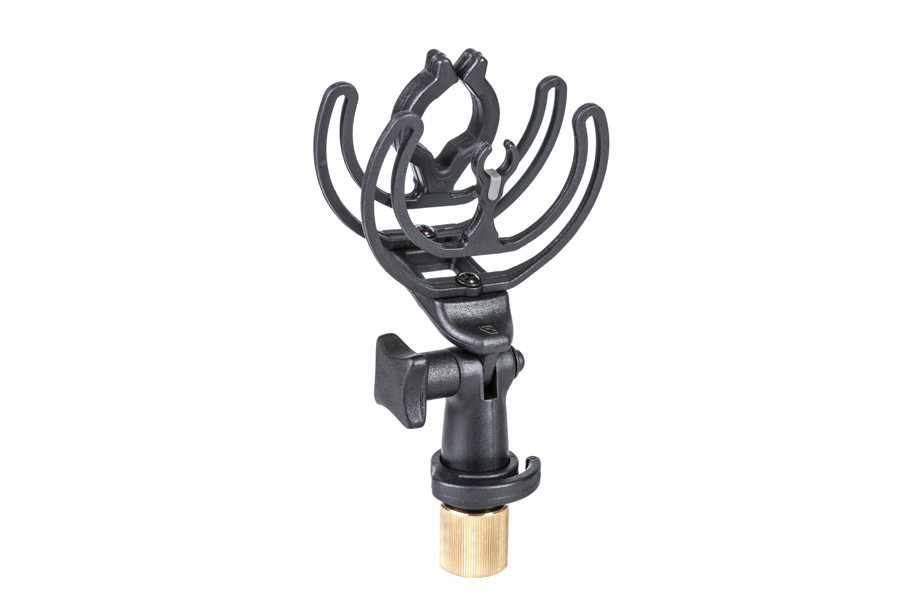

InVision INV-5
Product Code: 041105

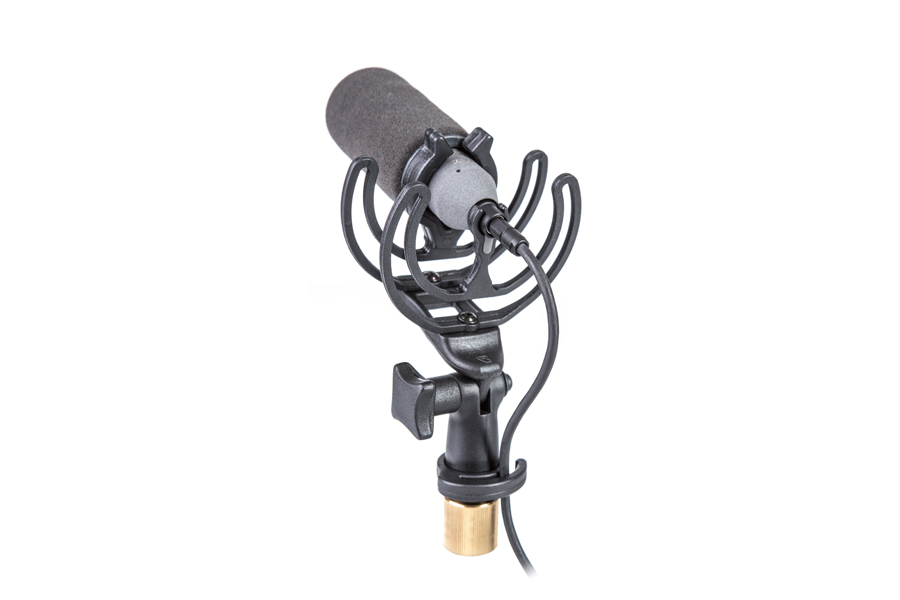

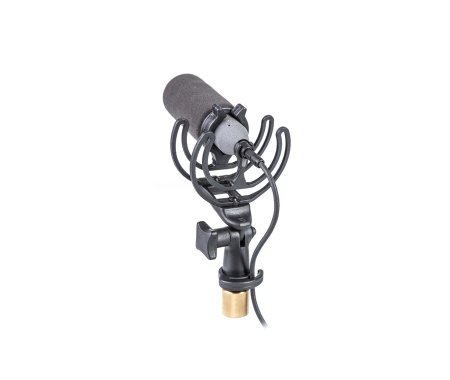

The INV-5 is suitable for compact microphones such as the Schoeps CCM series when used without a large foam windshield. The single 62 (19/25) Lyre at the front holds a mic body diameter of 19-25mm and the rear single 62 (9.5) Lyre holds connectors of 8-11mm e.g. lemo.
Main Benefits:
- Virtually indestructible
- Offers much improved isolation from camera noise compared to other on-camera microphone mounts
- No elasticated parts — never sags or needs rethreading
Description
Part of the larger InVision range of noise-reducing microphone shock-mounts, Rycote's InVision Broadcast, are designed for discreet, low-profile on-camera use in broadcast studio environments where windshielding is not required.
The InVision Broadcast mounts feature Rycote's latest Lyre suspension systems to offer broadcast professionals the cleanest possible sound, free from unwanted cable or stand-borne noise. They may be used with microphones mounted on desks, stands or boom poles, or suspended mics.
Tech Specs
Suitable for the Beyerdynamic CK930 and Neumann KM100 amongst others.
Fitted with:
- 1 x 20mm clip at the front and 1 x 9.5mm clip at the rear, with Standard (70mm wide) Lyre
- Standard bar with 25mm (1") centres

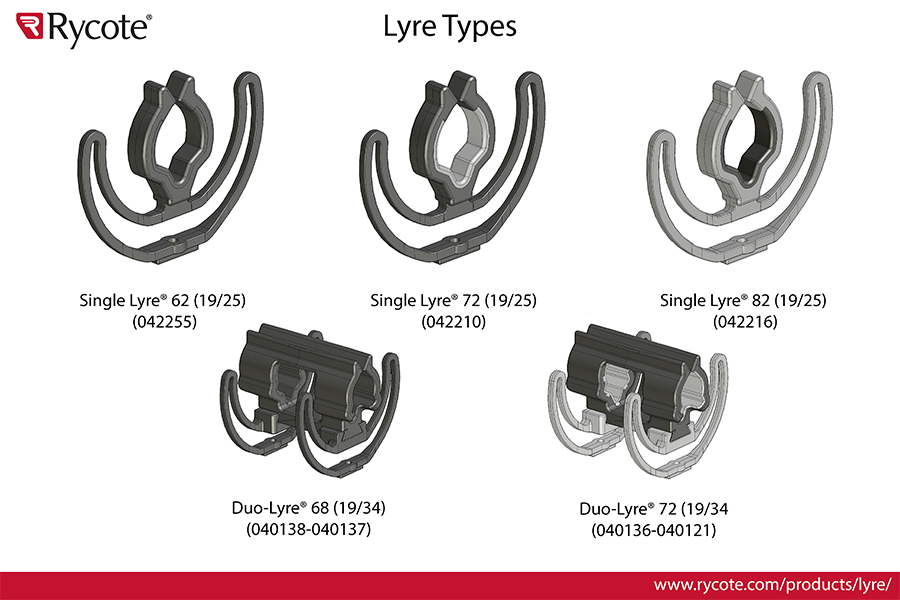

An InVision set contains two Lyre, an appropriate length mounting bar, and in some cases, a reducing sleeve (InVision INV-4). The Lyre suspension webs of our InVision come in two sizes: - InVision Lyre width: 43 mm - Standard Lyre width: 70 mm Mounting bars come in two sizes: - Standard length: 25 mm - Large length: 70 mm The reducing sleeve allows for smaller microphones (e.g. Schoeps CCM series) to be held by the Lyre.
Compatibility
| DPA 4021 | The 4021 uses the same type of cartridge as the famous 4011, but is preamplified using a built-in, ultra-small, thick-film mounted FE... |
| Neumann KM 100 series | The variable condenser miniature microphone system consists of several active microphone capsules with different directional characte... |
| Neumann KM 100 series with remote capsule | he variable condenser miniature microphone system consists of several active microphone capsules with different directional character... |
| Neumann KM-D series with remote capsule |
For more information on this specific microphone, go to Neumanns website at http://neumannusa.com. |
| RODE NT-6 | A remote capsule design microphone for use where unobtrusive placement is required. The compact capsule is a 13mm design that can be ... |
| Schoeps CCM 41 | The CCM 41 supercardioid has the greatest directional effect of any first-order pressure gradient transducer. The response 90° of... |
| Schoeps CCM Series (Hard wired) |
For more information on this specific microphone, go to Schoeps website at http://www.schoeps.de/en/home |
| Schoeps CCM Series (Lemo) | The CCM represents the logical next step in the miniaturization of classic condenser microphone technology without any compromise in ... |
| Sennheiser MKH 8040 + MZL |
For more information on this specific microphone, visit Sennheisers website at http://en-uk.sennheiser.com |
