HBS664-10Y7-5

Name: HBS664-10Y7-5
Brand: Ambient
SKU: A80195
Price: 168910 HUF
Availability: InStock

Coiled mixer/camera loom, SD664, w/ TC-out Lemo

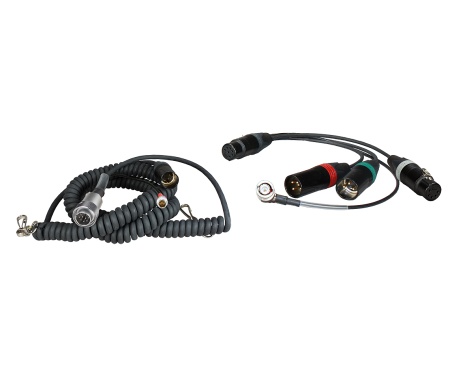

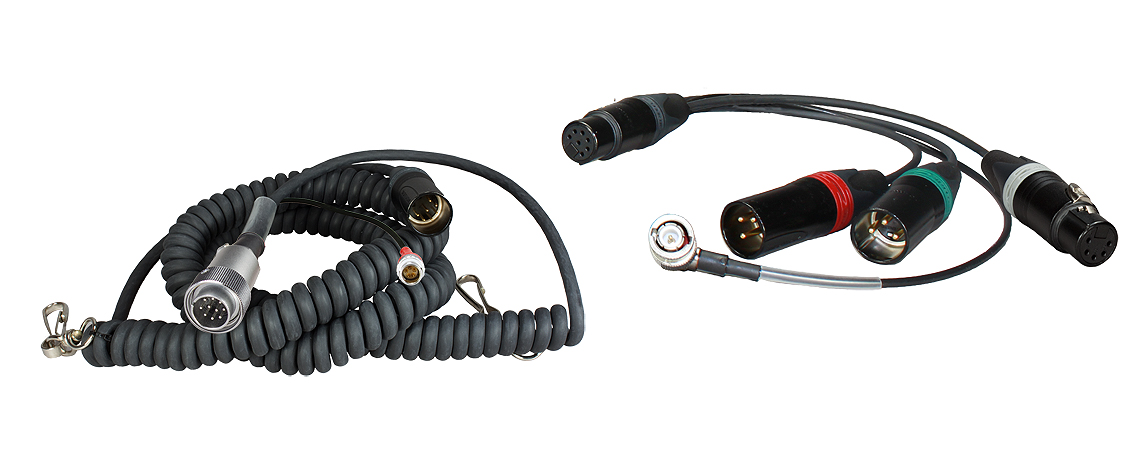

The Ambient Recording HBS664-10Y7-5 is a coiled mixer/camera loom for the SD 664 mixer. The mixer side is equipped with a Hirose 10-pin male and 5-pin Lemo for time code to 7-pin XLR male, and the camera side has a Y-breakout cable with 7-pin XLR female to dual 3-pin XLR male, and mono return via 5-pin XLR female, with BNC right angle plug for time code.

Tech Specs

Coiled breakaway cable:

10-pin Hirose male and 5-pin Lemo connector (TC-out) to 7-pin XLR male

Length approx. 1,8 m up to 5 m

Breakout cable (HBY7TC-5):

7-pin XLR female to 2x 3-pin XLR male

Return via 5-pin XLR female and BNC right-angle

Return mono

Length approx. 30 cm

168 910 Ft (133 000 Ft excl VAT)

–

The add to cart button will appear once you select the values above

brand: Ambient
sku: A80195
