URX100 receiver, camera link, IFB and walkie talkie interface

Name: URX100 receiver, camera link, IFB and walkie talkie interface
Brand: Zaxcom
SKU: URX100
Price: 431927 HUF
Availability: InStock

Previous Previous Previous Previous Previous Previous Previous

Next Next Next Next Next Next Next

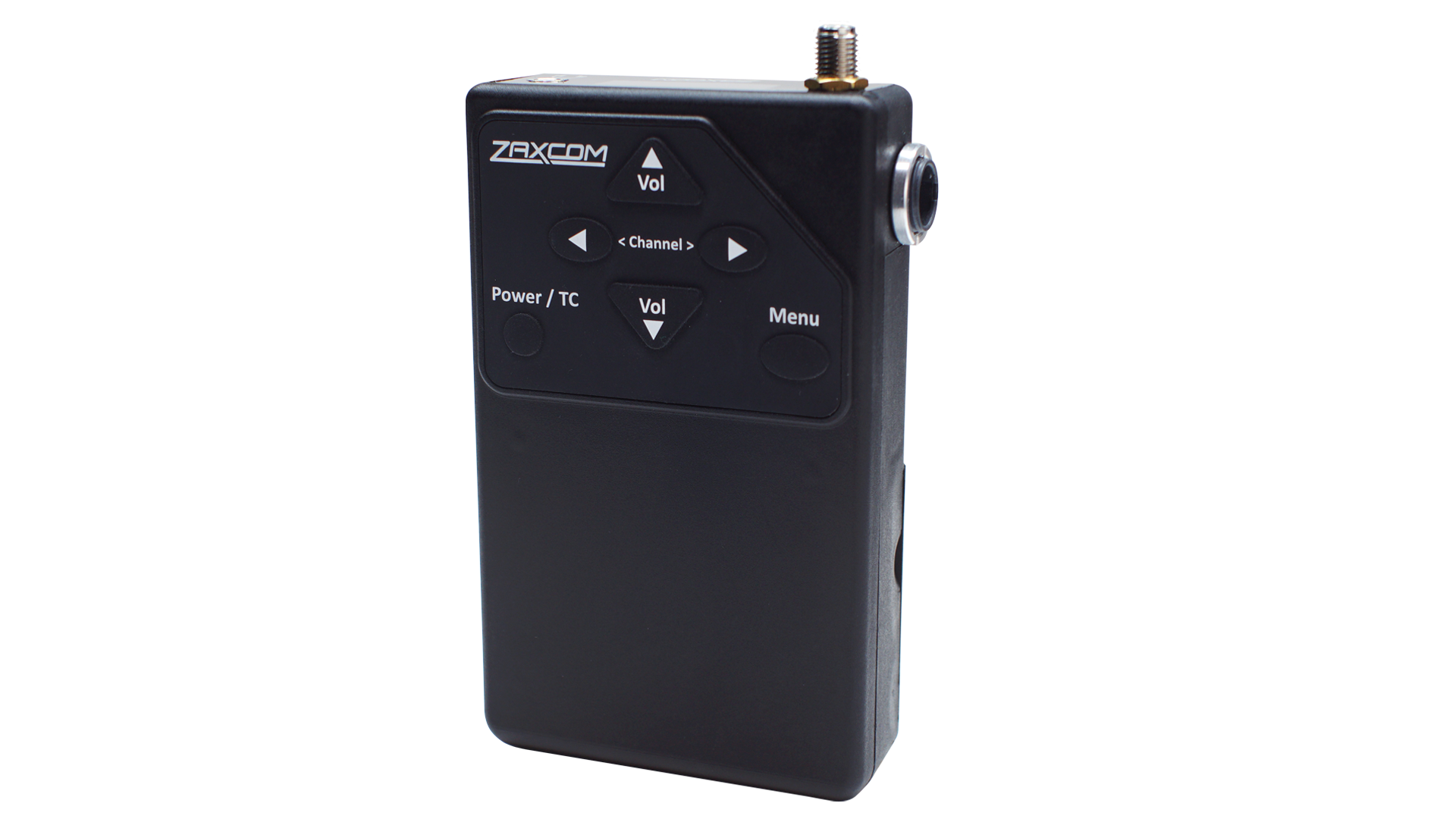

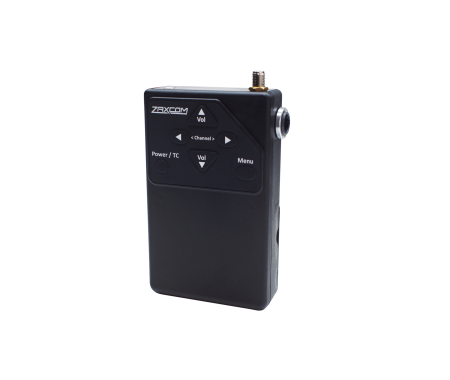

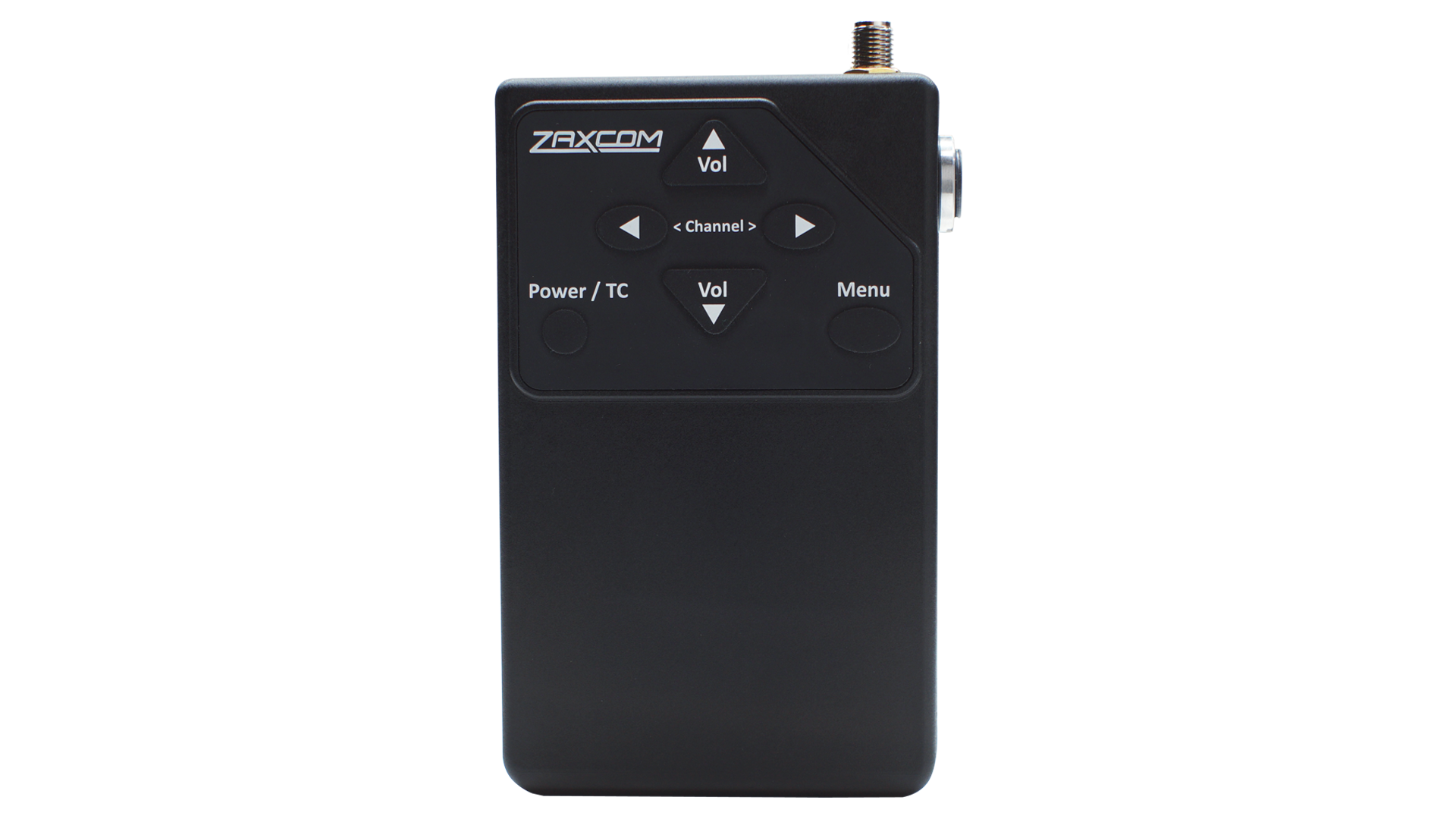

The URX100 is a multipurpose UHF receiver that can be configured as a camera link receiver, an IFB receiver with walkie talkie interface or a standalone IFB receiver with timecode view and delay.

Main Benefits

Receives any transmitter type
Walkie talkie interface with optional URXL1 Lanyard
Low-cost solution for getting audio and timecode to camera
Up to six frames of programmable delay
Digital Modulation
Encrypted Audio
Intermodulation Resistant
Timecode

Description

DESIGN

The URX100 is a multipurpose UHF receiver that can be configured as a camera link receiver, an IFB receiver with walkie talkie interface or a standalone IFB receiver with timecode view and delay.

CONNECTIVITY

The URX100 is compatible with any Zaxcom Digital Recording Wireless transmitter. The UHF diversity receiver utilizes a tunable tracking front end filter to combat interference and extend range.

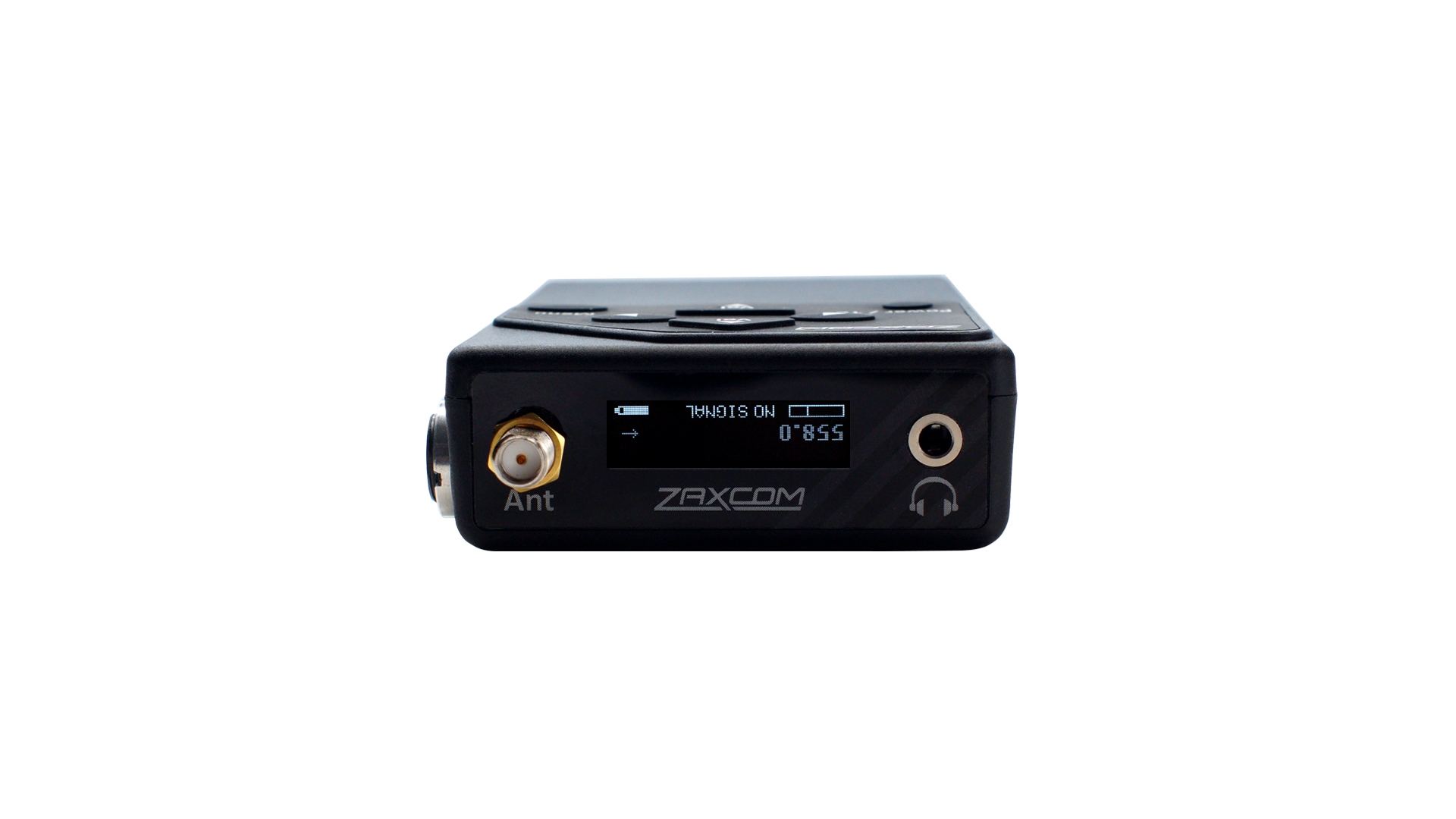

Two antennas (one internal, one external) provide dropout resistance. Operating distances can exceed 500 feet (152 m).

CAMERA LINK

It features two modes of operation: stereo audio output or mono audio output with SMPTE timecode. Stereo audio or balanced mono audio is output from the 3.5mm headphone jack. SMTPE timecode and mono unbalanced audio is output from the auxiliary TA5 connector.

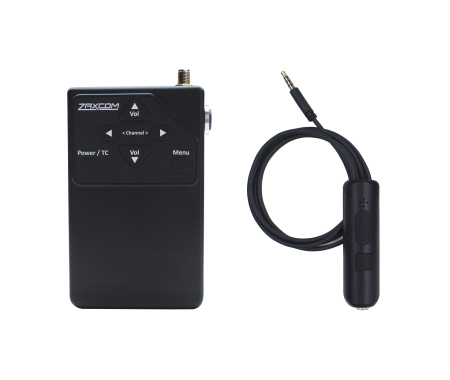

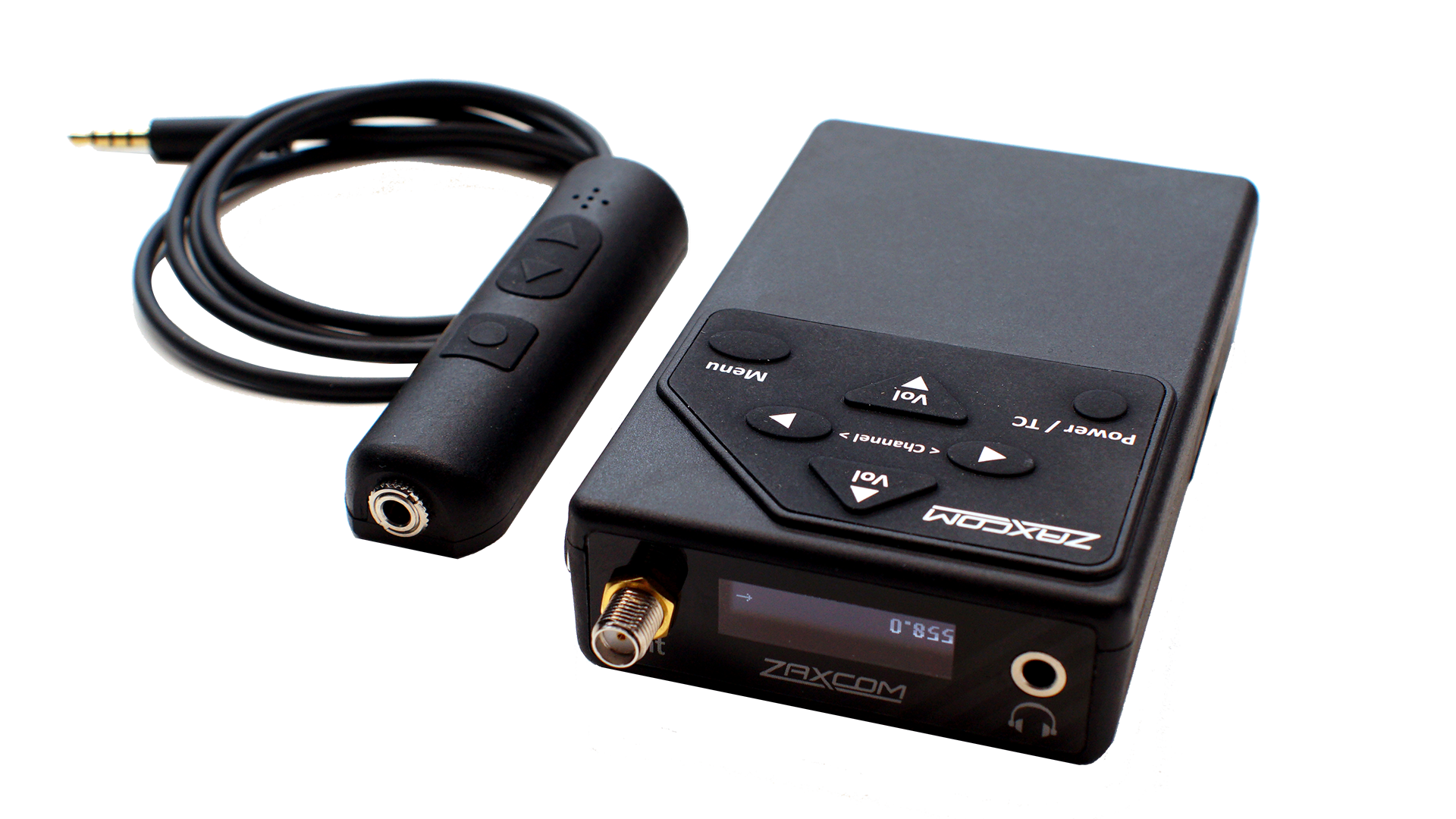

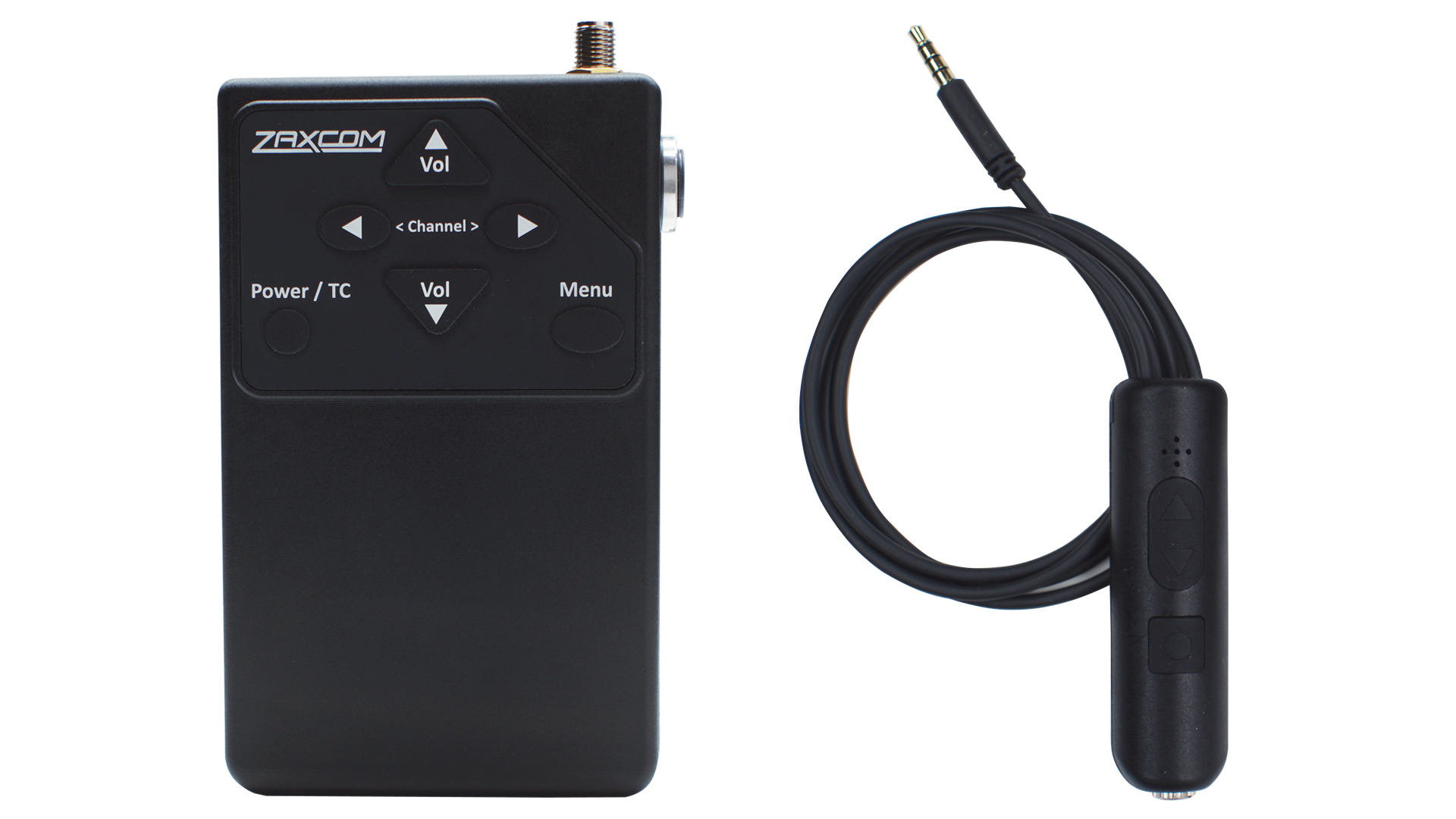

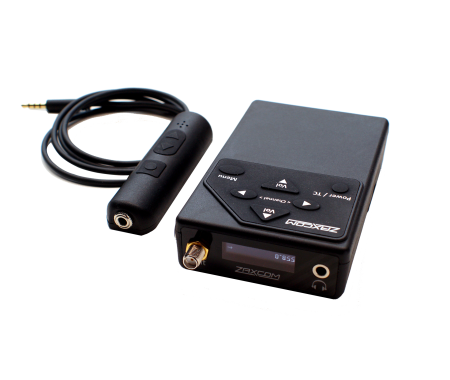

WALKIE TALKIE INTERFACE WITH URXL1 LANYARD

The URX100 can be connected to the remote speaker/mic port of a walkie talkie. You can route the walkie talkie audio left, right or center by the URX100 and/or mix the walkie audio with the URX100 receiver audio. Both the URX100 and walkie talkie audio to be heard at the same time with a single pair of headphones when using the URXL1 Lanyard.

The URXL1 Lanyard has a push-to-talk button and a microphone. Volume control is adjustable. Any headphone with a 3.5mm jack can be plugged into the URXL1 Lanyard. The URXL1 Lanyard is optional.

IFB RECEIVER

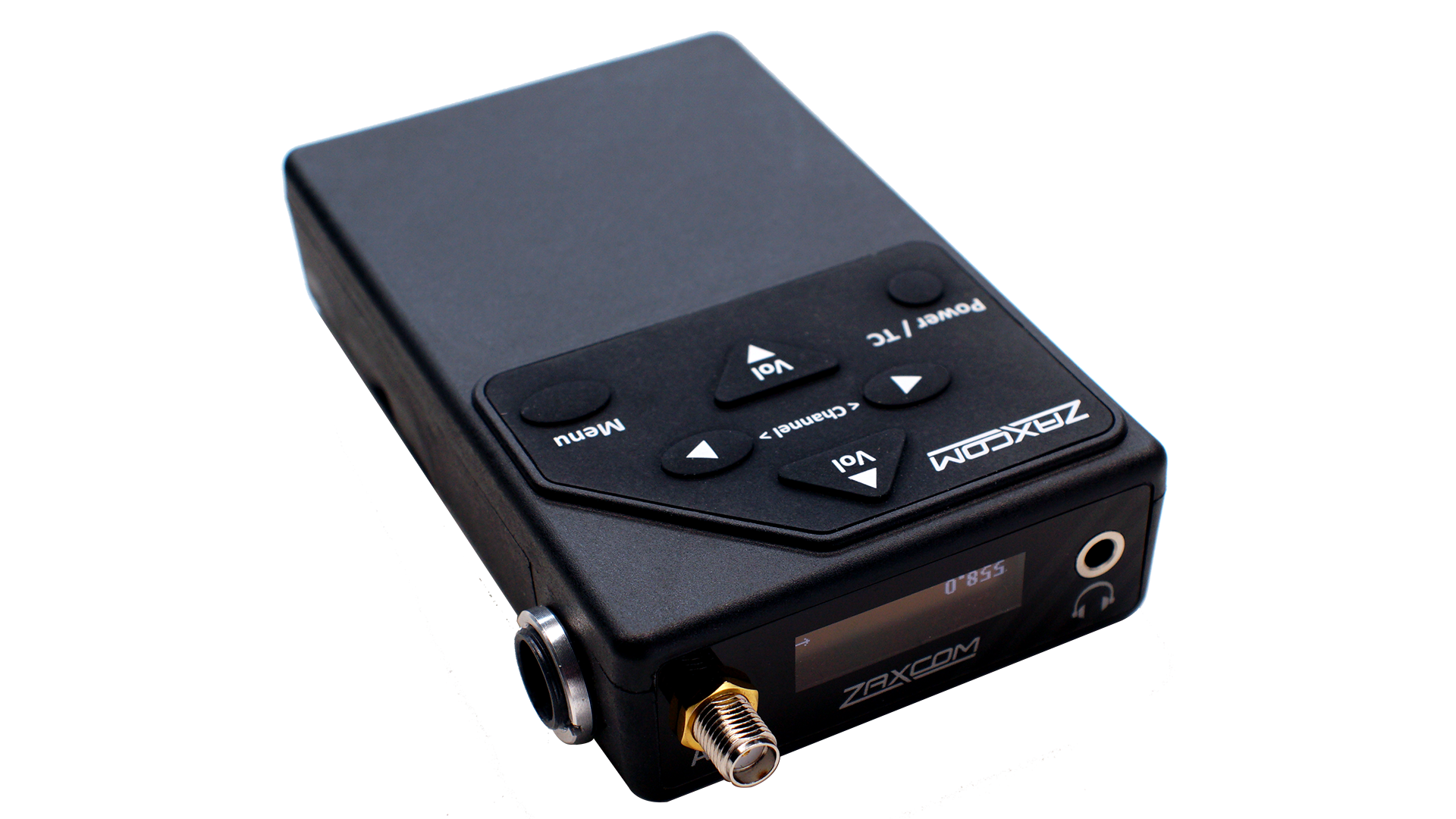

Menu options include mono or stereo audio and view timecode on the OLED display. Up to six frames of programmable delay allow for video sync.

Paired with the URXL1 lanyard both the IFB audio and walkie talkie audio can be listened to. Talk back is through the built-in URXL1 microphone. Volume is adjustable.

The URX100 can monitor a stereo signal or route the audio to left, right and both ears as a mono mix. The stereo signal can be selected at the URX100 so that a boom operator can monitor one of two transmitted channels that can include a public IFB feed as well as a private communication channel. This monitored audio can also be combined with the audio from a connected walkie with left, right or center routing.

REMOTE CONTROL

A browser based remote control interface lets the URX100’s to be programmed remotely.

POWER

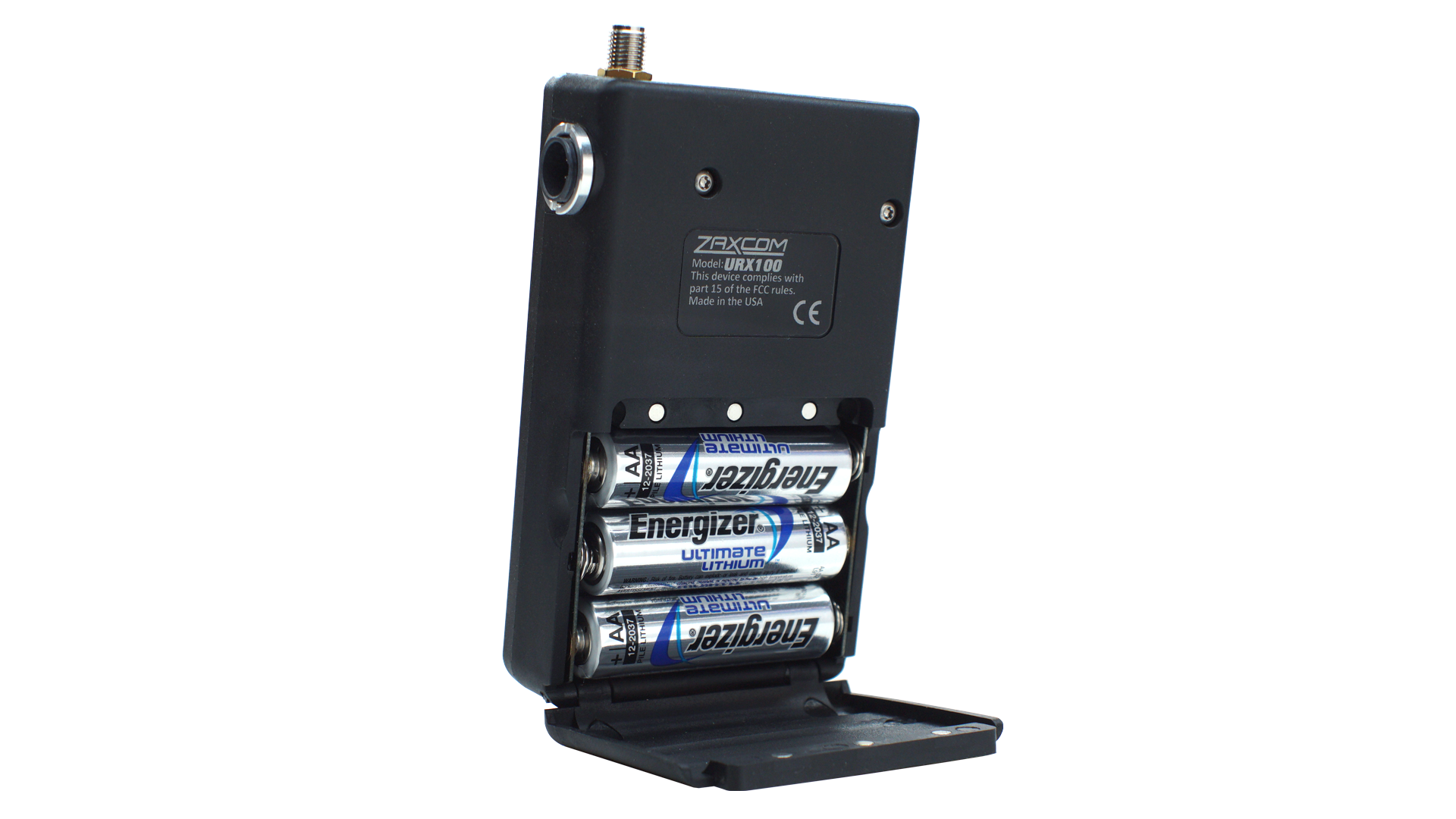

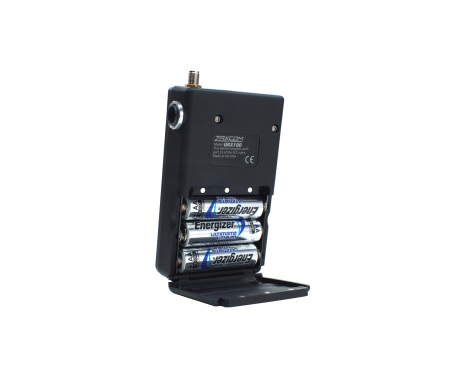

3-AA lithium batteries provides up to 10 hours of runtime. Alkaline lasts up to 8 hours.

Tech Specs

431 927 Ft (340 100 Ft excl VAT)

–

The add to cart button will appear once you select the values above

brand: Zaxcom
sku: URX100
Brand URL : https://zaxcom.com/products/urx100/
