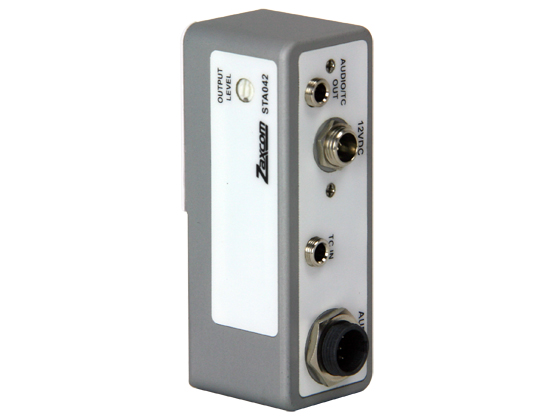

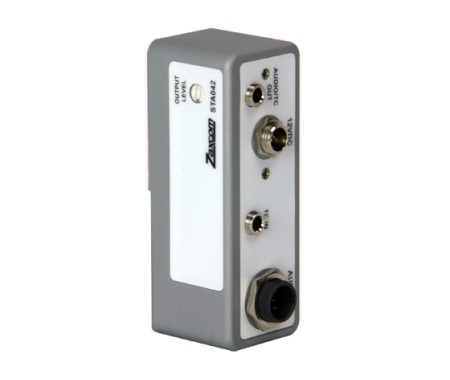

STA042 Digital Stereo Adaptor for the ZFR100

STA042 Digital Stereo Adaptor for the ZFR100

STA042 digital stereo adaptor has a sample rate converting input allowing any sample rate from 44.1 kHz to 48.048 kHz to be connected. The STA042 also has a dedicated time code input, enabling an exact match of audio recorded on the TRX and audio/video recorded on-camera. The new STA042 interface features an output that can be used either as an audio monitor for playback from the memory card or as a time code output to jam other devices. The STA042 includes an external power input for connection to an 8 to 18-volt external power source.

Main Benefits

2-Channel Digital Line-level Input
Timecode Input
Timecode / Audio Output
External Power Input

Tech Specs

Call for pricing

–

The add to cart button will appear once you select the values above

brand: Zaxcom
sku: STA042

Twitter

Recently viewed

8 ch. Mic/Line A/D module with Direct Out, DSD/DXD Premium

8 ch. Mic/Line A/D module with Direct Out, DSD/DXD Premium The AKD8D/P offers ultra-low distortion and noise floor at low levels whilst reducing late

IOM-H-AKD8DP

Display the description to the Readmore tag.: The AKD8D/P offers ultra-low distortion and noise floor at low levels whilst reducing latency even more. Another remarkable feature of the Merging Audio Interfaces is the low power consumption. The new components reduce that further by saving over 2 Watts per board which could be as much as 12 Watts on a fully loaded Horus.

792 099 Ft (623 700 Ft excl VAT)

–

GbE SC Single-mode Media Converter (copper fiber)

NET-TPL-MC210

Display the description to the Readmore tag.: GbE SC Single-mode Media Converter (copper fiber)

Call for pricing

–

from our Products:

2.4 GHz audio, timecode & remote control transmitter for the ZFR100

2.4 GHz audio, timecode & remote control transmitter for the ZFR100 The IFB100 transmits IFB audio, timecode and remote control signals to the TR

IFB100

Display the description to the Readmore tag.: Sends timecode and remote control signals to a ZFR100 , enables remote auto-load. Sends audio to a ZFR100 outfited with the TRX10 option.

Call for pricing

ZFR200 single mic bodypack audio recorder with NeverClip

ZFR200 single mic bodypack audio recorder with NeverClip The ZFR can be used as an easy way to record ISO tracks on multiple talent with no fears of

ZFR200NC

Display the description to the Readmore tag.: The ZFR can be used as an easy way to record ISO tracks on multiple talent with no fears of being out of range or having to deal with RF issues. Single microphone input. Runs on a single AA battery (modeled after the TRX900LT housing).

Call for pricing

ZFR200 dual mic bodypack audio recorder

ZFR200 dual mic bodypack audio recorder The ZFR can be used as an easy way to record ISO tracks on multiple talent with no fears of being out of rang

ZFR200S

Display the description to the Readmore tag.: The ZFR can be used as an easy way to record ISO tracks on multiple talent with no fears of being out of range or having to deal with RF issues. Dual microphone input, no NeverClip. Runs on a single AA battery (modeled after the TRX900LT housing).

Call for pricing

ZFR300 single mic bodypack audio recorder with NeverClip

ZFR300 single mic bodypack audio recorder with NeverClip The Zaxcom ZFR300 (Zaxcom Flash Recorder) is the same size as Zaxcom TRXLA3 wireless transmi

ZFR300NC

Display the description to the Readmore tag.: Single microphone input. Runs on two AA batteires (modeled after the TRX900LA housing).

Call for pricing

ZFR300 dual mic bodypack audio recorder

ZFR300 dual mic bodypack audio recorder The Zaxcom ZFR300 (Zaxcom Flash Recorder) is the same size as Zaxcom TRXLA3 wireless transmitter and can acce

ZFR300S

Display the description to the Readmore tag.: The Zaxcom ZFR300 (Zaxcom Flash Recorder) is the same size as Zaxcom TRXLA3 wireless transmitter and can accept standard lavaliere microphones. Dual microphone input, no NeverClip. Runs on two AA batteires (modeled after the TRX900LA housing).

Call for pricing

AES Input Connector:	TA-5M
Timecode Input Connector:	Unbalanced 3.5mm Stereo Jack
Timecode Input:	1 to 4 V P-P
Timecode / Audio Output Connector:	Unbalanced 3.5mm Stereo Jack
Timecode / Audio Output:	3 V P-P into 30O
Power Input Connector:	Switchcraft L712 Jack
Power Input Range:	9 to 18 VDC
Dynamic Range:	120 dB
Size:	1" x 0.8" x 3" (25 mm x 20 mm x 76 mm)
Weight:	2.0 oz
