Schoeps ORTF Surround Indoor Set Set including 4 *CCM 41 L, ORTF Surround Bar LM, Rycote INV-7, K Surround 5 M, AK Surround M/4U

Schoeps ORTF Surround Indoor Set Set including 4 *CCM 41 L, ORTF Surround Bar LM, Rycote INV-7, K Surround 5 M, AK Surround M/4U

The “ORTF Surround” recording method is a new system for the pickup of surround ambience. This microphone arrangement and its sonic characteristics are quite similar to those of the well-known “IRT Cross“ designed by Günther Theile. Both the 360° imaging and the spatial impression are of optimal quality. This is achieved with a high degree of signal separation among channels, based both on arrival-time differences and level differences.

• indoor plug and play solution for Surround Ambience
• optimal imaging characteristics like those of the “IRT Cross”:
  good 360° imaging with a pleasant, natural-sounding spatial impression
• complete set including the mounting bar, four CCM 41 L supercardioids and the breakout cable
• applications: sporting events, film sound, etc.

Overview

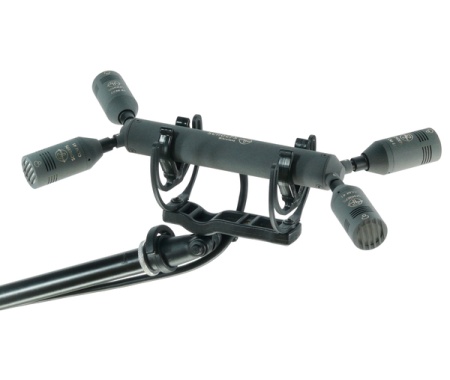

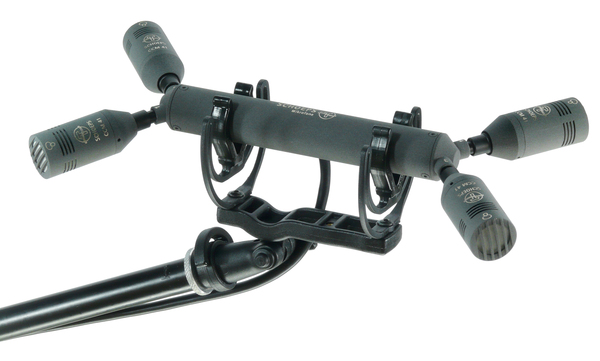

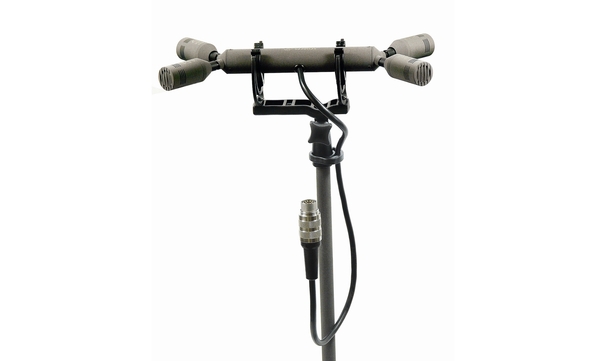

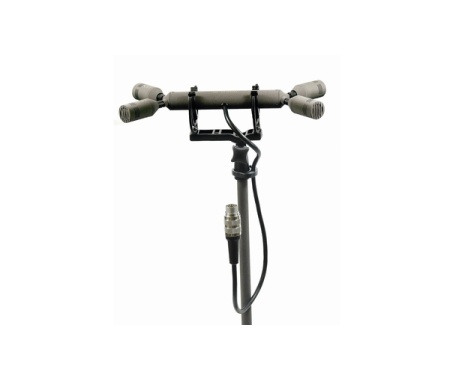

The ORTF Surround Indoor Set comprises:

• four CCM 41 Lg compact microphones
• a four-way “ORTF Surround Bar“ (ORTF Surround Bar LM) terminated with a Surround multi-pin connector (AES-65)
• an elastic suspension (Rycote Invision INV-7)
• a 5-meter, four-way Binder multi-core cable (K Surround 5 M)
• an adapter cable AK Surround M/4U (Multipin / 4 × XLR-3M)

When working indoors, the ORTF Surround Indoor Set is used without windscreen. If a moderate degree of wind protection should be required, a Schoeps B 5 D foam windscreen can be placed over each microphone separately.
