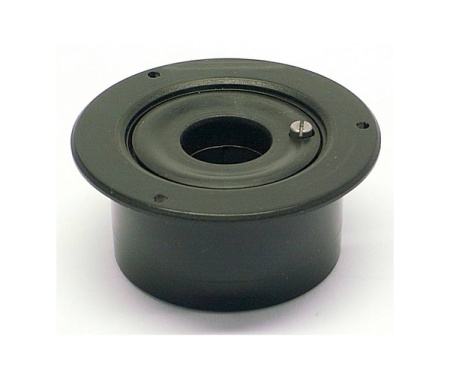

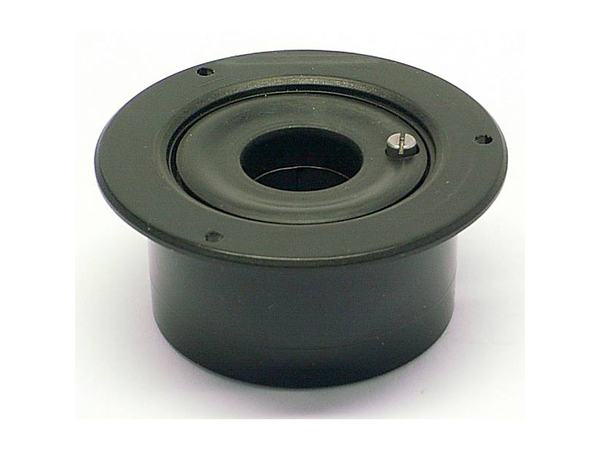

Schoeps AF 1 Flanged mounting adapter with internal shock mount for table mounting, 20mm

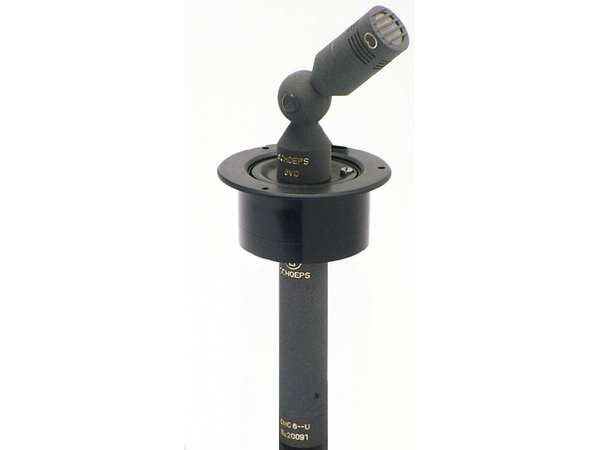

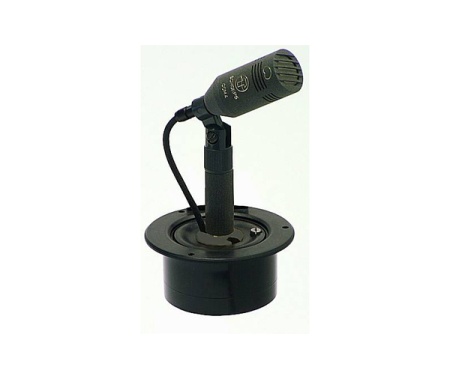

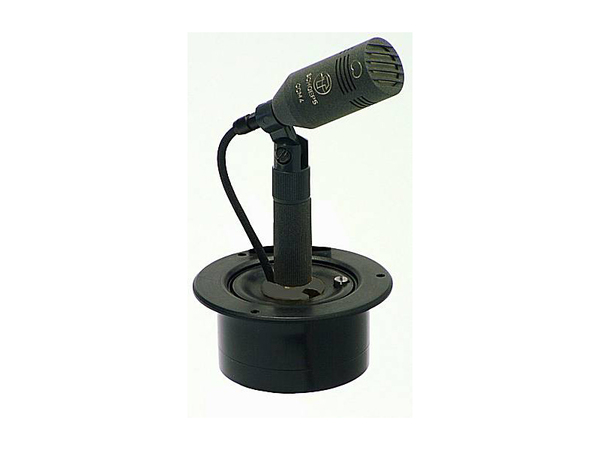

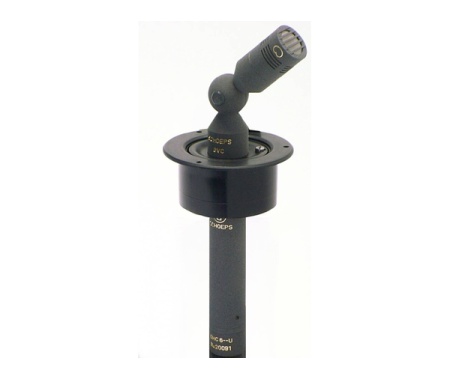

This convenient elastic suspension device accepts any microphone or accessory (such as a gooseneck) with a 20 mm diameter. A clamping arrangement holds the item in place.
- provides elastic suspension for microphone holders, e.g. goosenecks
- for mounting in surfaces
Overview
For use with our accessories, a mounting cylinder
(ST 20-3/8) with 20 mm outer diameter and a stud with 3/8" threading is available. It has a hole drilled in the center of its top which could be used to pass a miniature cable through. To avoid the need for unsoldering and resoldering the cable connector, however, two notches are also provided on the sides of the adapter.
(Exception: the connector used at the amplifier end of Colette Active Extension Tubes RC KC won't fit through the 20 mm opening).
The ST 20-3/8 mounting cylinder must be ordered separately.
Important: Longer goosenecks or other extensions longer than 30cm need to be mounted with two AF1 according to the drawing below.
Installation Instructions
Specifications
| AF 1 | |
|---|---|
| Diameter (flange) | 69 mm |
| Diameter (cylinder) | 54 mm |
| Depth (below flange) | 29 mm |
| Surface finish | black |
Downloads
| User guide | ||
|---|---|---|
| AF 1 Flanged Cylinder with Internal Suspension |
 |  |
Download (pdf, 174.02 kByte) |
