HBS552Y-7-5

Coiled mixer/camera loom, SD552, w/ TC, 2 breakouts, XLR-5F

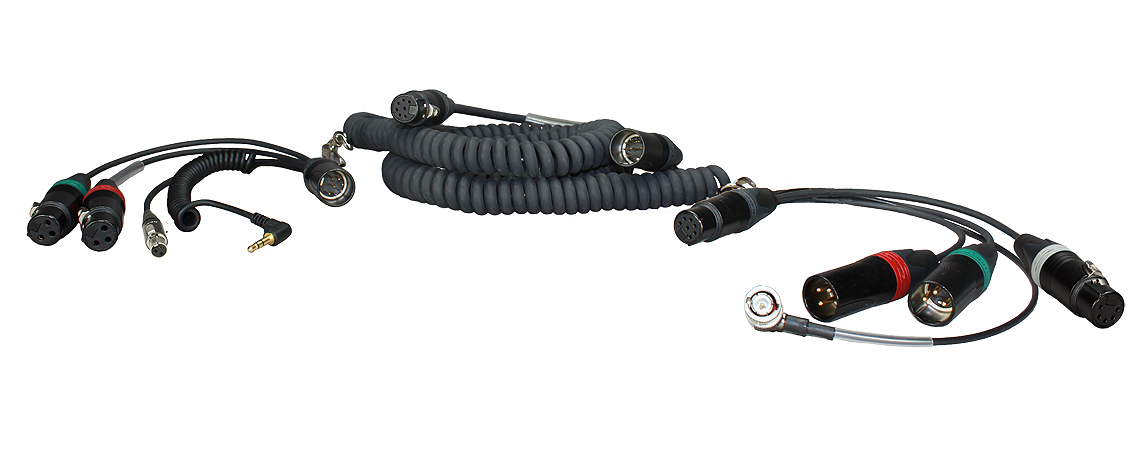

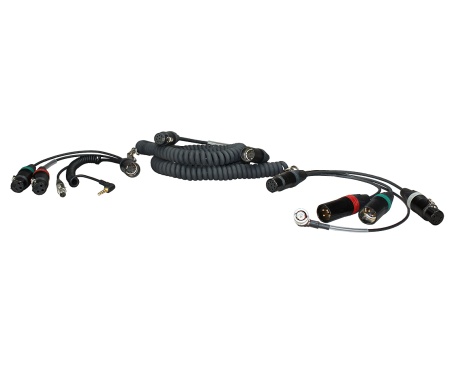

The 70.8 to 157.4" Ambient Recording HBS552Y-7-5 Coiled Mixer Cable for SD 552 Mixer comes with a two Y-breakout cable plus the coiled HBS7-7 breakaway cable. On the mixer side, the HBYATC7-35W Y-breakout cable features a 7-pin XLR male to dual 3-pin XLR female and mono return via 3.5mm TRS right angle and TA3F (TC-IN) connector for time code. On the camera side, the HBY7TC-5 Y-breakout cable has a 7-pin XLR female to dual 3-pin XLR male and mono return via 3.5mm TRS mini plug on coiled cord with BNC right angle plug for time code from camera to the SD 552 mixer.

Tech Specs

Connector	Mixer Side: 7-pin XLR male to dual 3-pin XLR female, mono return via 3.5 mm TRS right angle and TA3F (TC-IN) connector for time code Camera Side: 7-pin XLR female to dual 3-pin XLR male and mono return via 5-pin XLR female with BNC right angle plug for time code from camera to the SD 552 mixer
Length	70.8 to 157.4" (180.0 to 400.0 cm)

Call for pricing

–

The add to cart button will appear once you select the values above

brand: .. discontinued ..
sku: A80193

Specifications

availability:
