CO-100K

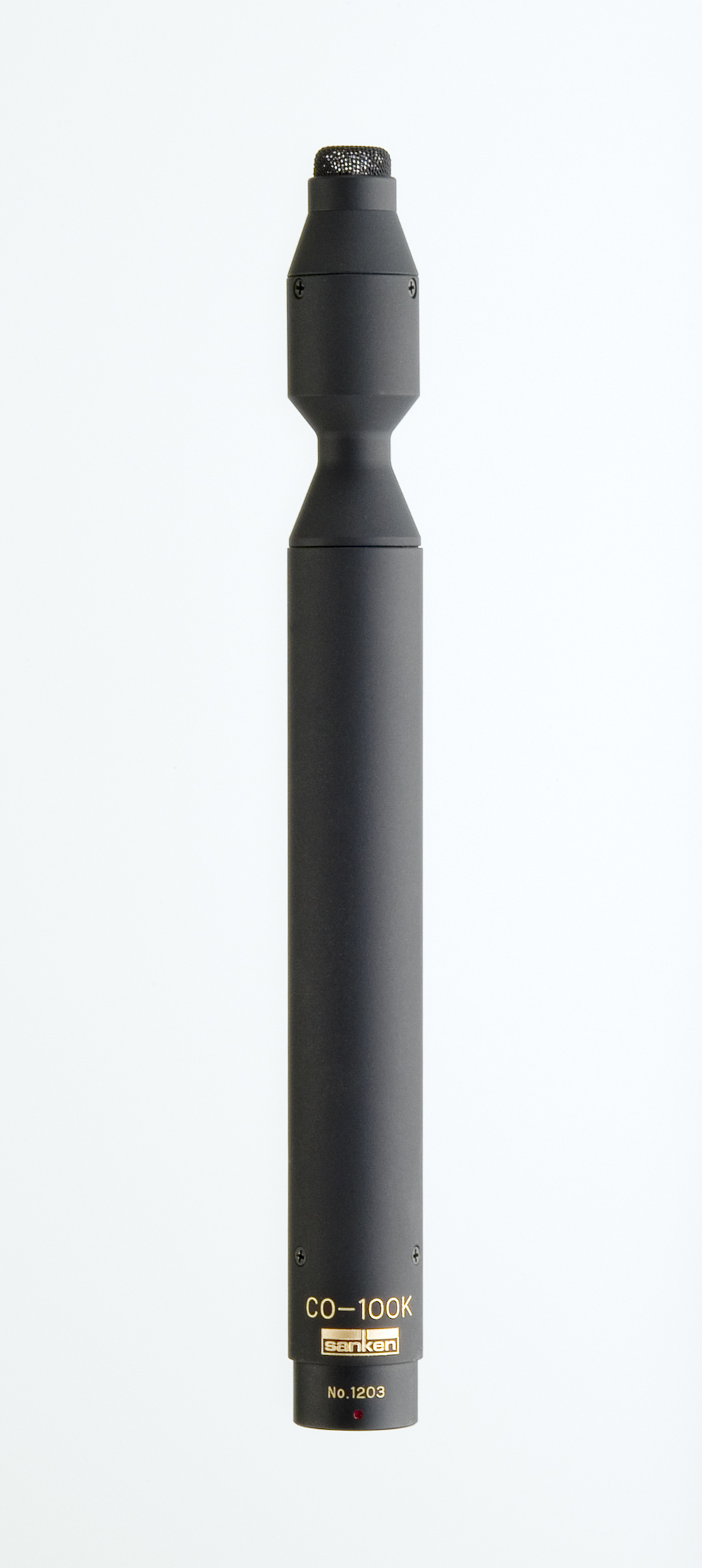

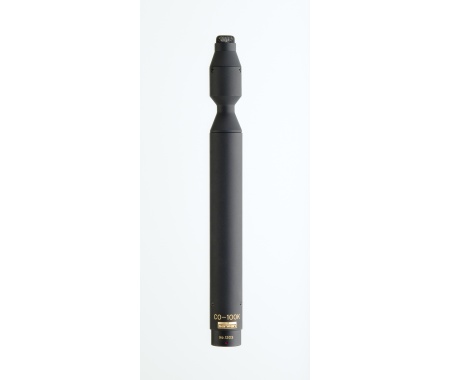

CO-100K 100kHz super wide range microphone
An omnidirectional super wide range condenser microphone with unprecedented 20Hz to 100kHz frequency response.
Main Benefits
- 20Hz to 100kHz Microphone
- Unique Diaphragm Design
- For Professional Recording
Description
The Sanken CO-100K is the first 100kHz microphone in the world designed for actual professional recording, not for measurement purposes. A revolutionary microphone designed with NHK’s Science & Technical Research Laboratories, it is Sanken's response to those enthusiastic engineers who wish to record frequencies as high as 100kHz. After rigorous test recordings, it was found that this microphone is especially suited for classical music, acoustic instrument and sound effect recording.
Prominent owners have used two CO-100K in stereo pairs, overall string sections, and in four and five channel arrays for surround and front of orchestra.
Within the conventional "audible frequency" band of 20Hz to 20kHz the performance is exemplary, and clearly different. But the CO-100K also provides the opportunity to experience musical sounds far beyond the typically accepted upper frequency limit. The CO-100K is a new step in microphone technology, providing new realms of musical detail and nuance that has never before been possible.
Prominent owners have used two CO-100K in stereo pairs, overall string sections, and in four and five channel arrays for surround and front of orchestra.
Within the conventional "audible frequency" band of 20Hz to 20kHz the performance is exemplary, and clearly different. But the CO-100K also provides the opportunity to experience musical sounds far beyond the typically accepted upper frequency limit. The CO-100K is a new step in microphone technology, providing new realms of musical detail and nuance that has never before been possible.
Tech Specs
| Directivity | Omni directional |
|---|---|
| Transducer | DC biased condenser |
| Frequency range | 20Hz - 100kHz |
| Sensitivity (nominal at 1kHz) |
39.8mV/Pa ( -28dB,0dB=1V/Pa) |
| Equivalent noise level (A-weighted) |
22dB-A |
| Max SPL (1% THD) | 125dB SPL |
| Output impedance at 1KHz |
150 ohms |
| Powering | +48±4V phantom |
| Current consumption | less than 6mA |
| Weight | 150g |
| Dimensions | 191.5mm X 20.5mm (diameter) |
| Surface finish | matte black |
| Connector | XLR-3M |
Graphics
Frequency Response
♦ Fig-1
Polar Pattern
♦ Fig-2
